Distech Controls ECL/ECB-PTU Series User Manual

Subnetwork Installation Guidelines
Network Guide 77

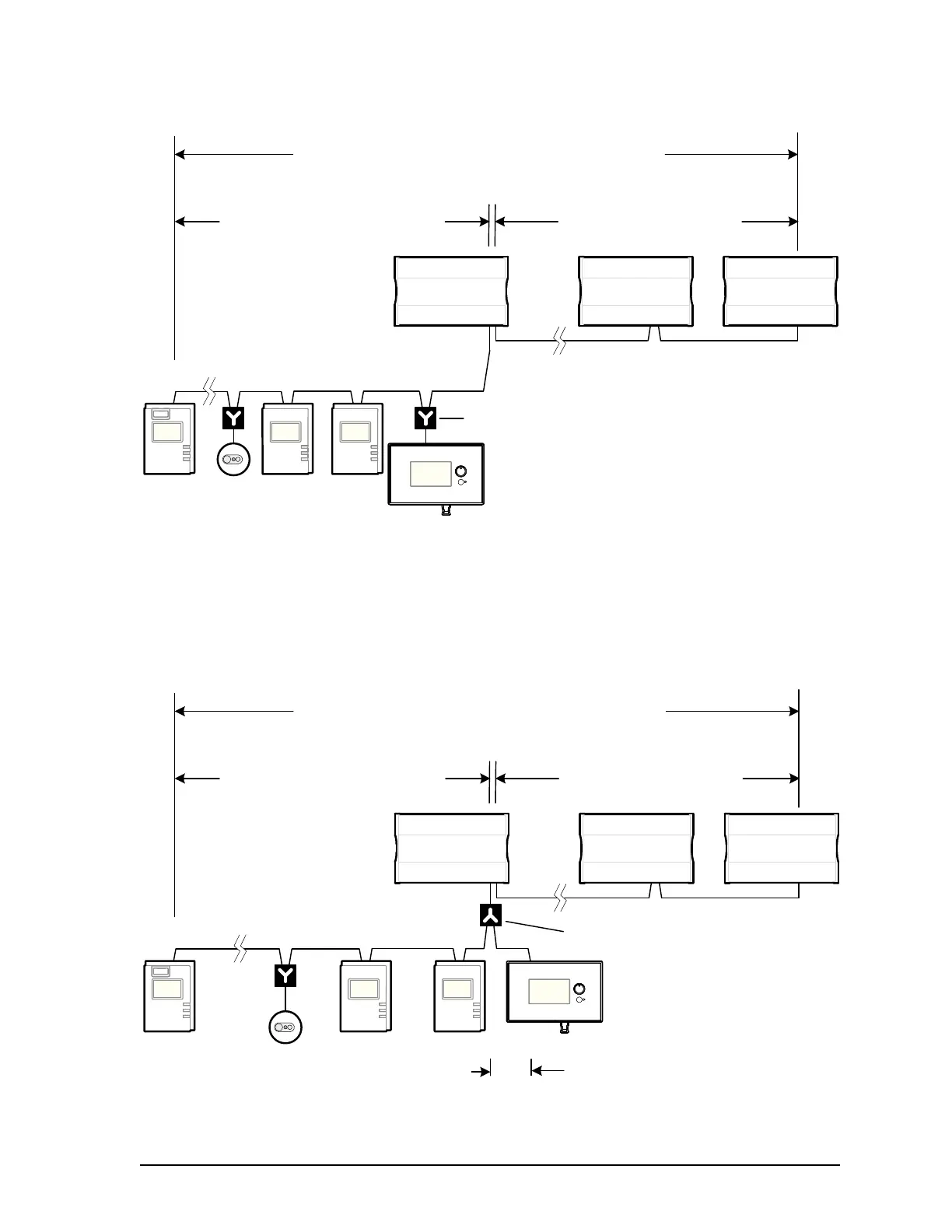

Figure 47: Example of the Distribution of the Total Subnetwork Data Bus Length Example
The maximum length of the Cat 5e cable subnetwork data bus used to connect a controller to
an ECx-display as a stub is 6.5 ft. (2m). The maximum total length of the Cat 5e cable subnet-
work data bus remains 1 000 ft. (300 m). When other Cat 5e cable subnetwork devices are
used, use an ECx-Subnet Adapter to connect to those devices.
Figure 48: Example of the Distribution of the Total Subnetwork Data Bus Length with an ECx-Display Connected
as a Stub Example
2-Wire Subnetwork Bus Length:
≤ 1 000 ft (300m)
Example: 500 ft (150 m)
Cat 5e Cable Subnetwork Bus Length:
≤ 600 ft (160 m)
Example: 500 ft (150 m)
Subnetwork Bus Total Length: Up to 1 000 ft (300m) Maximum
2-Wire Subnetwork Bus
Cat 5e Cable Subnetwork Bus
Typical ECx- 4XX
Series Extension
I/O Modules
Typical ECB-600 /
ECL-600 Controller
Typical ECx-4XX
Series Extension
I/O Modules
ECx-Subnet
Adapter
ECx-Display
EC-Multi
Sensor
2-Wire Subnetwork Bus Length:
≤ 1 000 ft (300m)
Example: 500 ft (150 m)
Cat 5e Cable Subnetwork Bus Length:
≤ 600 ft (160 m)
Example: 500 ft (150 m)
Subnetwork Bus Total Length: Up to 1 000 ft (300m) Maximum
2-Wire Subnetwork Bus
Cat 5e Cable Subnetwork Bus
Typical ECx- 4XX
Series Extension
I/ O M odules
Typical ECB-600 /
ECL-600 Controller
Typical ECx-4XX
Series Extension
I/O Modules
ECx-Subnet
Adapter
6.5 ft [2m]
Maximum
ECx-Display
EC-Multi
Sensor
