4
IP1854EN - 2013-03-01

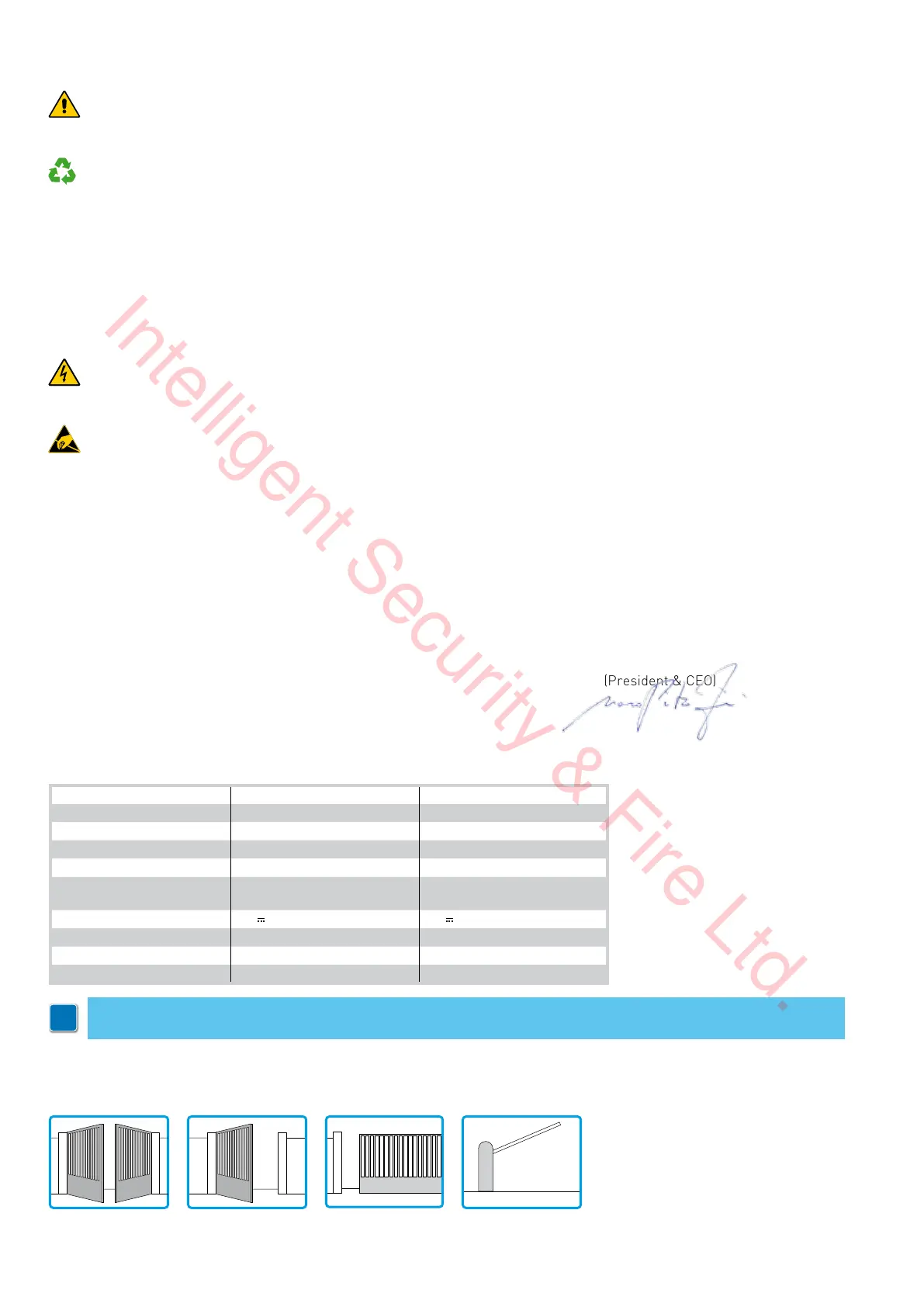

1. General safety precautions
This installation manual is intended for qualified personnel only.
Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in
compliance with applicable regulations.
Before installing the product, carefully read the instructions. Bad installation could be hazardous.
The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environment or left within reach of children,
as these are a potential source of hazard.
Before installing the product, make sure it is in perfect condition.
Do not install the product in an explosive environment and atmosphere: gas or inflammable fumes are a serious hazard risk.
Before installing the motors, make all structural changes relating to safety clearances and protection or segregation of all areas
where there is risk of being crushed, cut or dragged, and danger areas in general.
Make sure the existing structure is up to standard in terms of strength and stability. The motor manufacturer is not responsible
for failure to use Good Working Methods in building the frames to be motorized or for any deformation occurring during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed taking into account: applicable laws and
directives, Good Working Methods, installation premises, system operating logic and the forces developed by the motorized door.
The safety devices must protect any areas where the risk exists of being crushed, cut or gragged, or where there are any other
risks generated by the motorized door.
Apply hazard area notices required by applicable regulations.
Each installation must clearly show the identification details of the motorized door.
When necessary, connect the motorized door to a reliable earth system made in accordance with applicable safety regulations.
During installation, maintenance and repair, interrupt the power supply before opening the lid to access the electrical parts.
The protective casing of the automation must be removed by qualified personnel only.
To handle electronic parts, wear earthed antistatic conductive bracelets. The motor manufacturer declines all responsibility
in the event of component parts being fitted that are not compatible with the safe an correct operation.
For repairs or replacements of products only original spare parts must be used. The installer shall provide all information relating
to automatic, manual and emergency operation of the motorized door, and provide the user with operating instructions.
The manufacturer Entrematic Group AB with headquarters in Lodjursgatan 10, SE-261 44 Landskrona, Sweden
declares that the control panel Ditec LOGICM is in conformity with the provisions of the following EC directives:
EMC Directive 2004/108/CE;
Low Voltage Directive 2006/95/CE.
Landskrona, 29-01-2013 Marco Pietro Zini
(President & CEO)
2. EC Declaration of conformity
3. Technical data
LOGICM LOGICMJ
Power supply 230 V~ 50/60 Hz 120 V~ 60 Hz
F1 fuse F6,3A F6,3A
F2 fuse F3,15A F3,15A
One motor output 230 V~ 5A max 120 V~ 6,3A max
Two motor output
230 V~
2x2,5A max
120 V~
2x3,15A max
Accessories power supply 24 V
0,5 A 24 V 0,5 A
Temperature min -20 °C max +55 °C min -20 °C max +55 °C
Degree of protection IP55 IP55
Dimensions 187X261X105 187X261X105
3.1 Applications
NOTE: the given operating and performance features can only be guaranteed with the use of DITEC accessories and
safety devices.
