can see in the previous screenshot, specific inputs correspond to certain
PTZ presets. A good example would be to wire some relays into your
PLC that will send a digital input based on which Silo gate is open. This
is very handy for license plate shots at Asphalt facilities.
5.8.5 Digital Output Configuration (Optional)
If you purchased the digital input/output module, you now have the ability to
control other equipment based on your NVS receiving tickets from Apex. An
example of such a scenario would be if you wanted to control a traffic light
automatically with your NVS. This setup requires the use of a Moxa VPort to

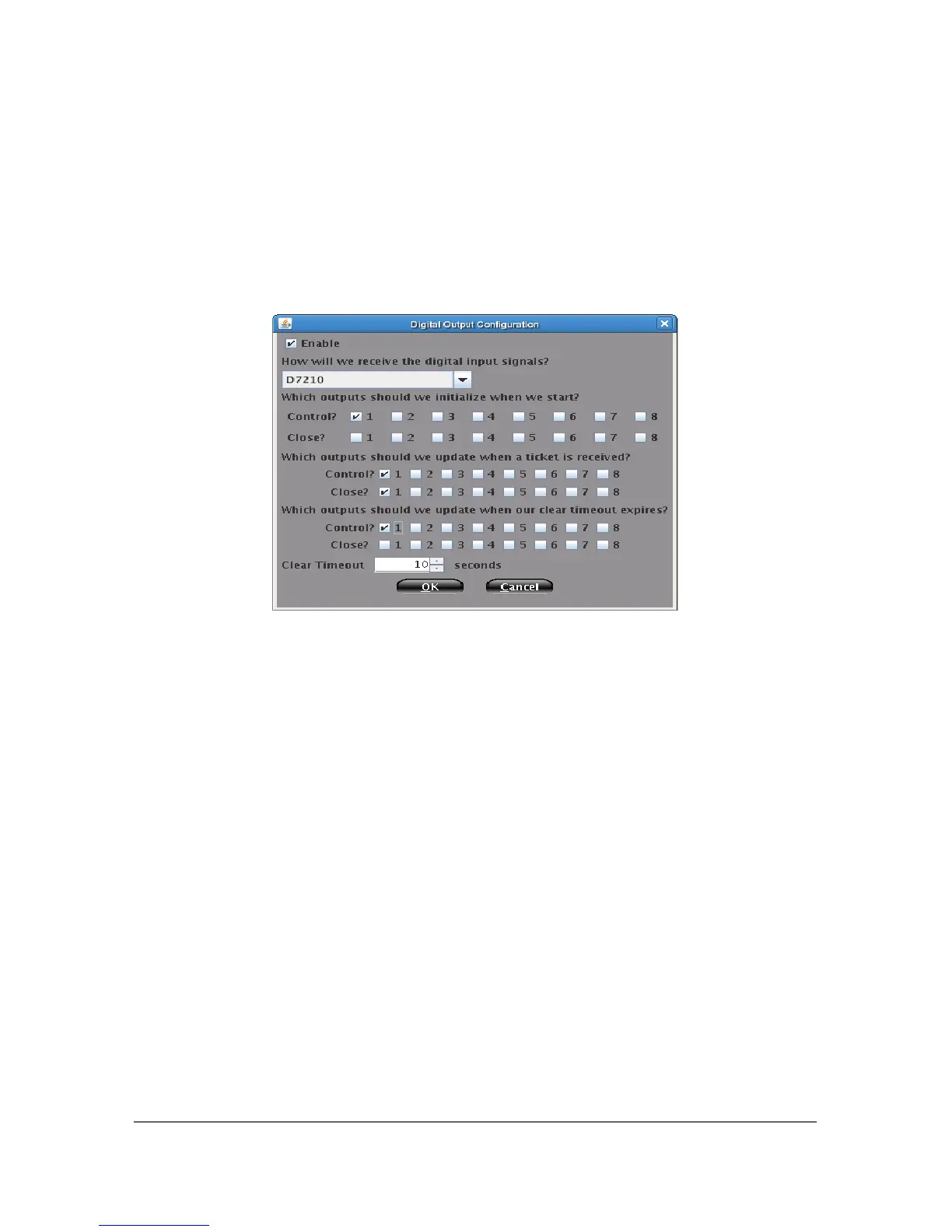

wire everything into. In the screenshot above you can see where you select which
digital outputs you would like to tie to this scale. Next, you specify in which
conditions you want to open or close the relay associated with that digital output
number. You can also specify a timeout after receiving the ticket to revert such a
change (change the light red again).
45
