dixell iCHILL IC200CX - 208 Cx Connections

1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 25/40

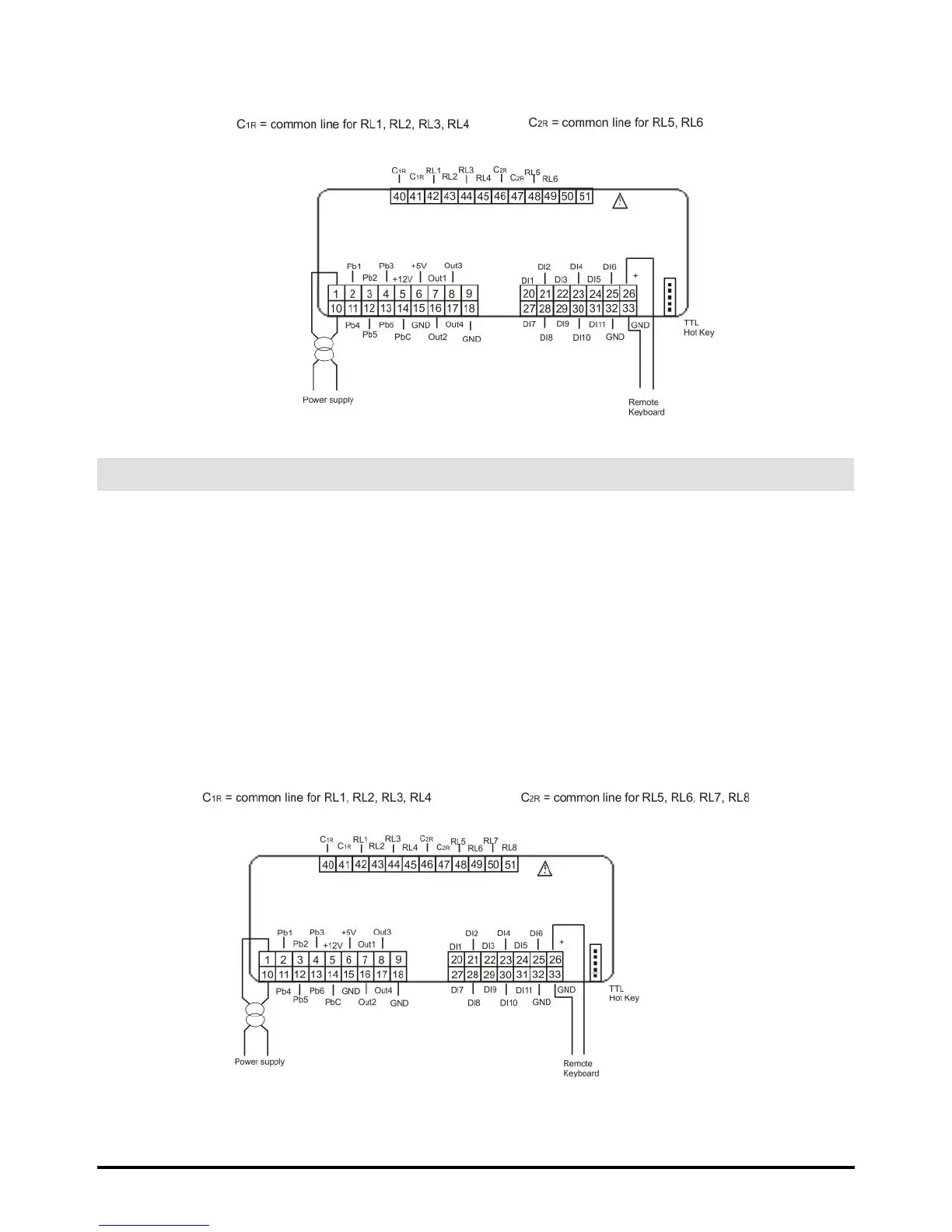

16.2 IC208CX CONNECTIONS
 8 digital outputs (relays)
o MAX. current on the relay contacts 5(2)A 250V
o MAX. Current on the coomon line (C1R and, C2R) 10A 250V
 11 digital inputs (free of voltage)
 6 analogue inputs:
 4 NTC / PTC probes
 2 NTC / PTC / pressure transducer 4÷20 mA / pressure transducer ratio-metric 0÷ 5Volt
 4 modulating outputs:
 2 0 ÷ 10 Volt
 2 0 ÷ 10.0 Volt or cut of phase (for modulating condenser fan)
 1 LAN output to connect the I/O expansion and IEV electronic expansion valve
 1 output to connect a remote keyboard (max. 2 VICX620 EVO or 1 V2I820)
 1 TTL output for “Hot Key 64” or for XJ485CX (interface module for monitoring system)
