1592022760 Quick reference guide iCHILL 200CX EVO rel. 1.0 31/40

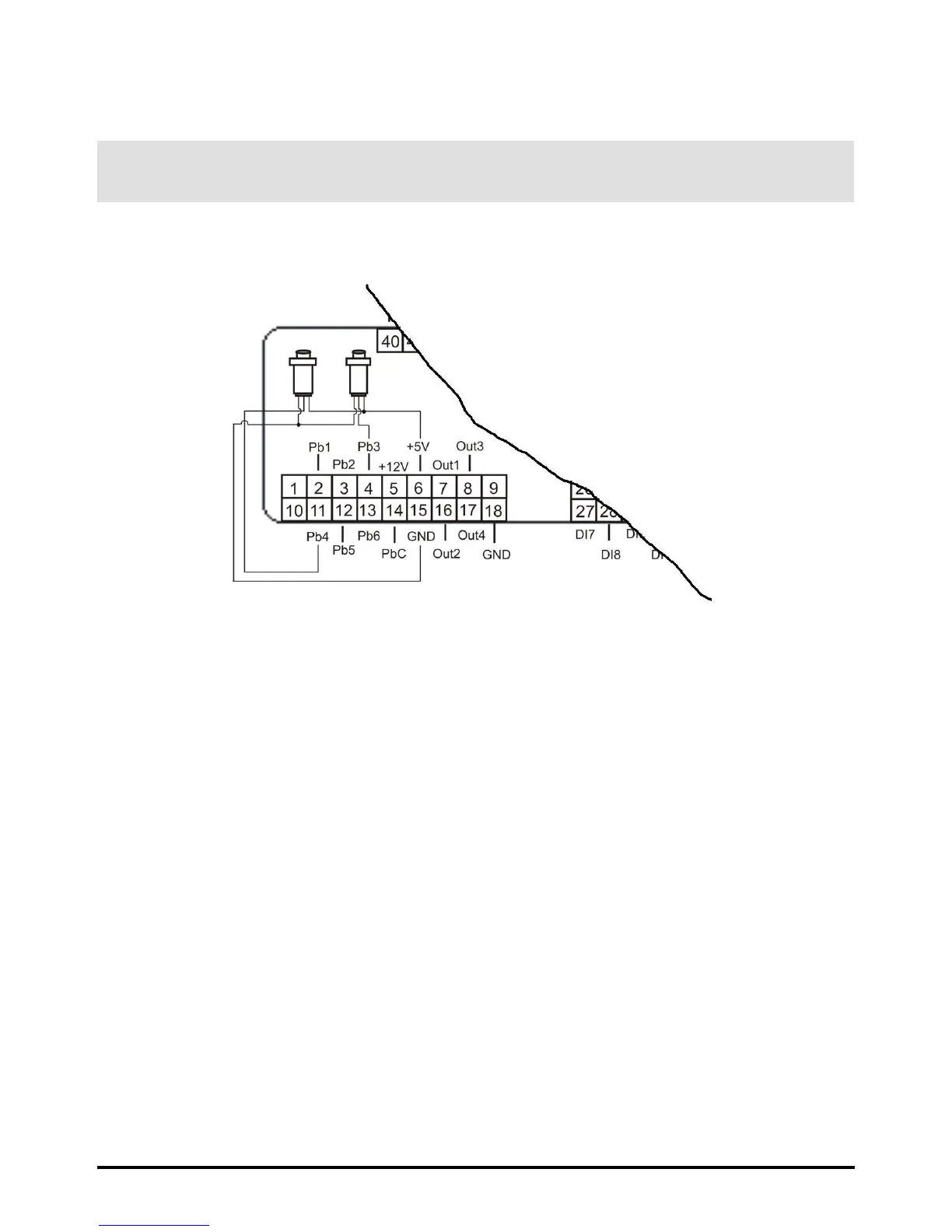

16.5 ANALOG INPUT FOR PRESSURE RATIOMETRIC TRANSDUCER PPR30 (0

÷ 5V SIGNAL)

+5V = power supply for pressure transducers

GND = ground for pressure transducers

Pb3 and Pb4 = pressure transducer inputs

Table of Contents

Default Chapter3
- Table of Contents3
1 General Warning5
- Please Read before Using this Manual5
- Safety Precautions5
- Product Disposal (Weee)6
2 Using the Quick Reference Guide6
3 Ic200 CX Table of the Features7
4 User Interface8
- Meaning of the Leds8
- Display and Icons8
5 Display Layout9
6 Other Display Information10
- Read the Set Point Value10
- Modify the Set Point10
7 Key Function11
- Key Combinantion12
8 First Installing12
- On Board Clock (Optional)12
- Rtc Setup12
9 Parameters Programming with the "Hot Key 6413
- How to Program an Instrument with an Already Programmed "Hot Key13
- (Download)13
- How to Copy the Parameter Map into the "Hot Key" (Upload)13
10 Programming Using Local User Interface13
- Enter the Programming Level Pr113
- Enter the Programming Level Pr214
- Enter the Programming Level Pr314
11 Menu ( Menu Key)14
- Alarm List: Read and Reset15
- Alarm Log List15
12 Remote Keyboard Vicx620 Evo16
13 Remote Keyboard V2I82016
- Probes Visualization18
- Visualizzazione / Modifica Set Point18
- Alarm Visualization19
14 Table of the Output Status in Alarm Condition20
- Alarm: "A" Type and Status of the Loads in Case of Alarm20
- Alarm: "B" Type and Status of the Loads in Case of Alarm22
- Alarm: "C" Type and Status of the Loads in Case of Alarm23
- Warning24
15 Black-Out24
16 Wiring Connections24
- Ic206Cx Connections24
- 208Cx Connections25
- Remote Keyboard Connection26
- Analog Inputs Ntc - Ptc Probes28
- Digital Inputs29
- Analog Input for Pressure Transducer Pp30 (4 ÷ 20Ma Signal)30
- Pwm Output for Condensing Fan Speed Control32
- Proportional Output for Fan Condensing Control or for Compressor Inverter Controlled or for Auxiliary Outputs33
- Proportional Output 034
- Proportional Outputs Configured for Aux Relay Control36
17 Installing and Mounting37
- Panel Cut- out37
- Vertical Boards Vi620Cx Panel Cut-Out37
- V2I820 Panel Cut-Out38
18 Electrical Connections38
19 Technical Data39
