dixell XC660D User Manual

1592001850 XC660D GB r3.4 04.09.2017.docx XC660D 13/55
2. Select the “Pr2” parameter. Then enter the password 3 2 1 0.
3. Select the PA04, adjustment of read out corresponding to 4mA (0.5V), parameter.
4. Press the “SET” key: the value of the parameter will start blinking.
5. Set the lower value of the probe range.
6. Push the SET key to confirm the value. The PA20: adjustment of read out corresponding
to 20mA (4.5V) parameter will be displayed.
7. Set the higher value of the range.
8. Push the SET key to confirm the value. Next parameter will be displayed.
Do the same things for the Probe 2, FA04, FA20 parameters.

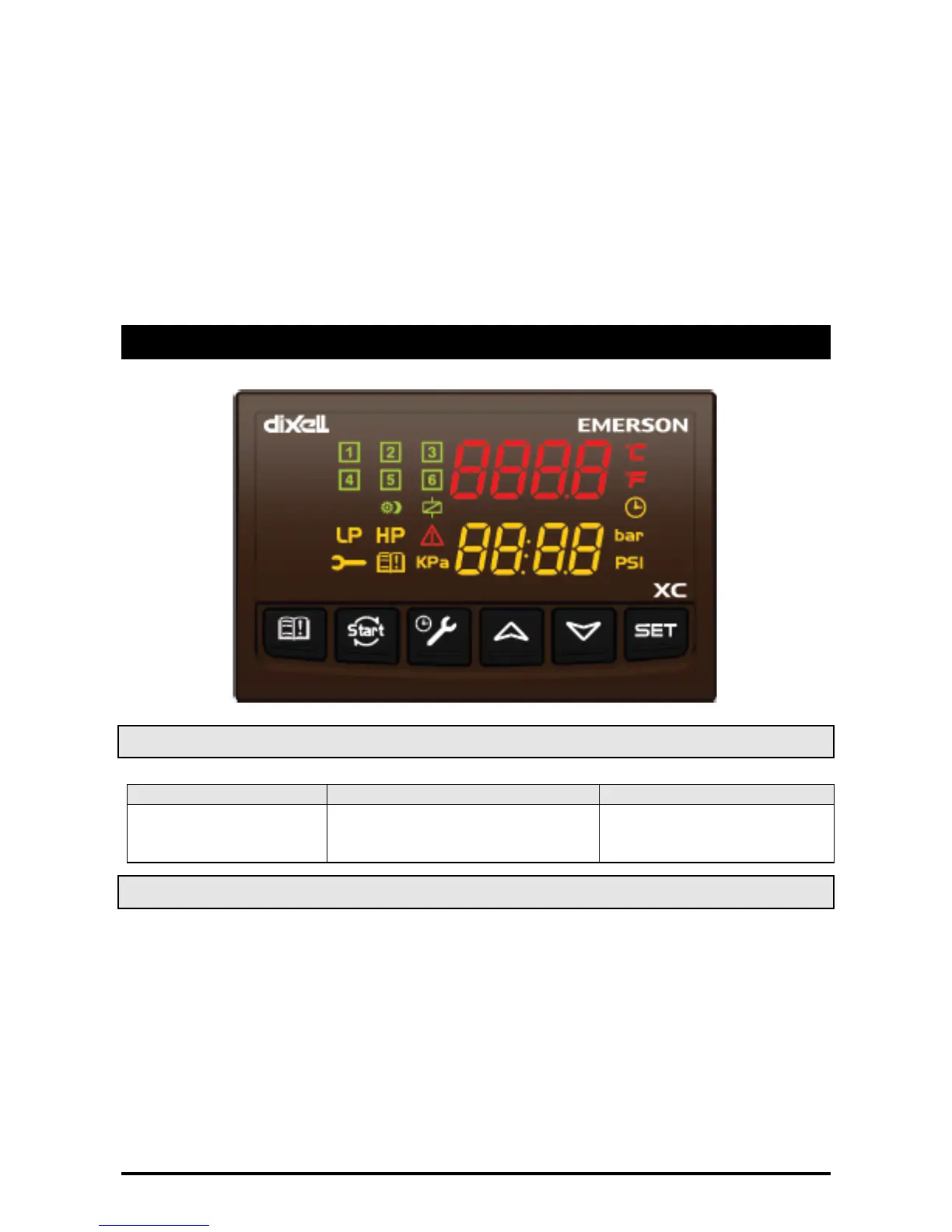

8. User interface
8.1 Displaying
UPPER DISPLAY
LOWER DISPLAY
ICONS
Suction temperature or
pressure
Discharge temperature or pressure
- Working loads
- Measurement unit
- Alarm or status Icons
8.2 Keyboard
SET (SET)
Standard visualization: to see or modify the set point. In programming mode it selects
a parameter or confirms an operation.
Alarm menu: By holding it pressed for 3s, the current alarm is erased.
o (UP).
In programming mode: it browses the parameter codes or increases the displayed
value.
With Hot key inserted: it starts the Hot key programming procedure.
To access the INFO menu: push and release it to access the INFO menu.
n (DOWN)
