1592001850 XC660D GB r3.4 04.09.2017.docx XC660D 9/55

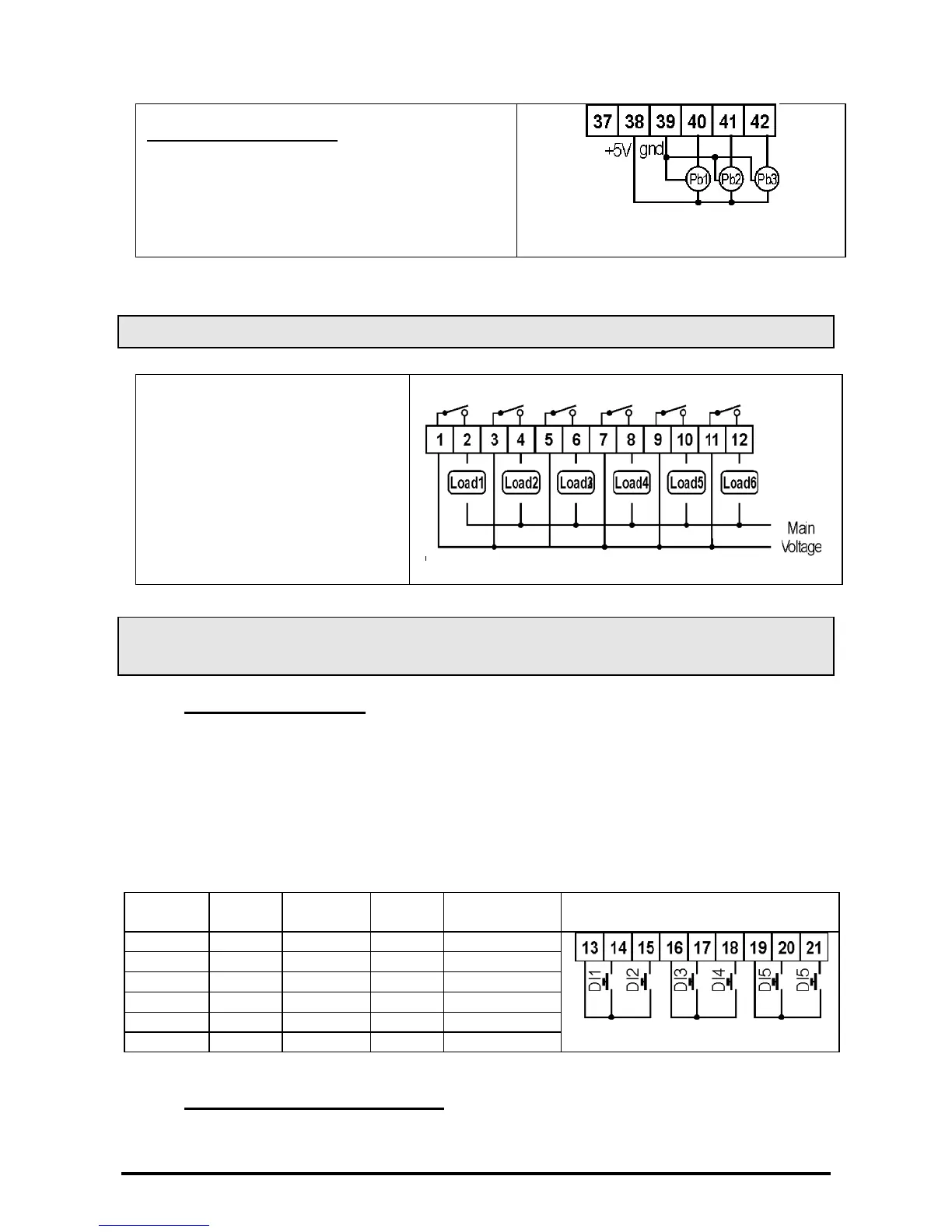

Ratiometric transducers (0.5÷4.5Vdc)
Suction 1 (P1C = 0-5)
40 (In); 38(+); 39 (gnd)
Condenser (P2C =0-5)
41 (In); 38(+); 39 (gnd)
Suction 2 - optional (P3C = 0-5)
42 (In); 38(+); 39 (gnd)
5.5 LOAD CONNECTIONS
The XC660D is provided with 6
relay, as shown on the picture.
The relay functionality depends on
the setting of the parameters
oA1÷oA6.
According to the features of the
loads, suitable external contactors
have to be used to supply the
loads properly.
5.6 SAFETY AND CONFIGURABLE DIGITAL INPUTS – FREE
VOLTAGE
5.6.1 Loads safety inputs
Controller has 8 configurable digital inputs, free voltage.
Each digital input can be set by the related parameter iF01,.. iF08.
The first 6 digital inputs are factory pre-set to operate as safety input for loads.
Each input must collect the status of the safety devices related to the compressor such as
thermistors, pressure switches etc.
When this input is activated the correspondence load is switched off and not considered for the
regulation.
The correspondence between loads (compressors or fans) and safety inputs is the following
LOAD
TERM.
SAFETY
INPUT
TERM.
SETTING
CONNECTION
Load 1
1-2
Di1
13-14
iF01 = oA1
Load 2
3-4
Di2
13-15
iF02 = oA2
Load 3
5-6
Di3
16-17
iF03 = oA3
Load 4
7-8
Di4
16-18
iF04 = oA4
Load 5
9-10
Di5
16-18
iF05 = oA5
Load 6
11-12
Di6
16-18
iF06 = oA6
5.6.2 Configurable digital inputs.
The controller XC660D is provided with 2 additional configurable digital inputs, the first one can
operate also as probe.
