1592001850 XC660D GB r3.4 04.09.2017.docx XC660D 7/55
5. WIRING & ELECTRICAL CONNECTIONS
5.1 General warnings
Before connecting cables make sure the power supply complies with the instrument’s
requirements.
Separate the probe cables from the power supply cables, from the outputs and the power
connections.
Do not exceed the maximum current allowed on each relay 5A resistive, in case of heavier
loads use a suitable external relay.

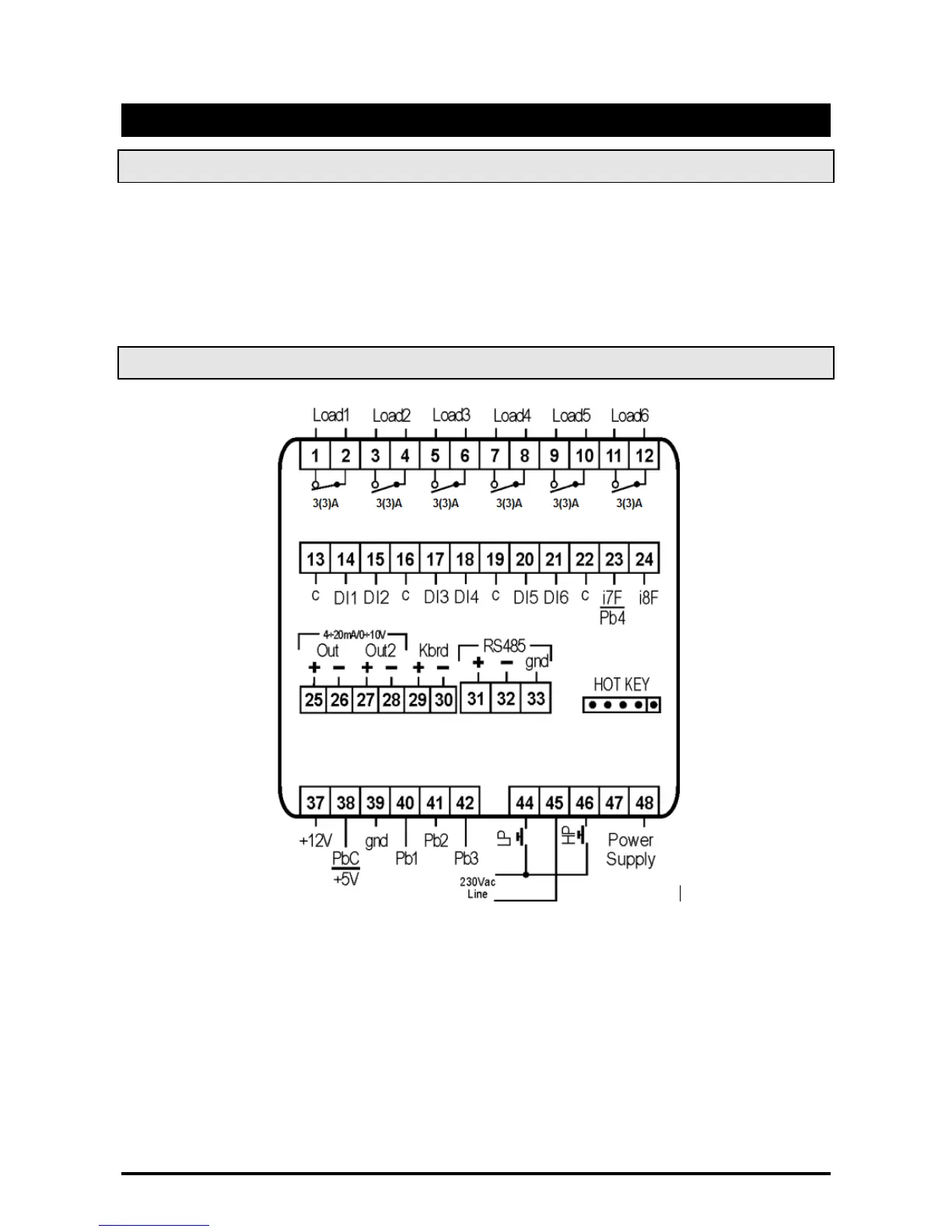

5.2 Wiring connections
NOTE
120V version: use terminals 47-48 for power supply: Terminals 44-45-46 operate at 120V
24V version: use terminals 47-48 for power supply;
90-260V version: use terminals 47-48 for power supply: Terminals 44-45-46 operate at the same
voltage
