1592001850 XC660D GB r3.4 04.09.2017.docx XC660D 22/55

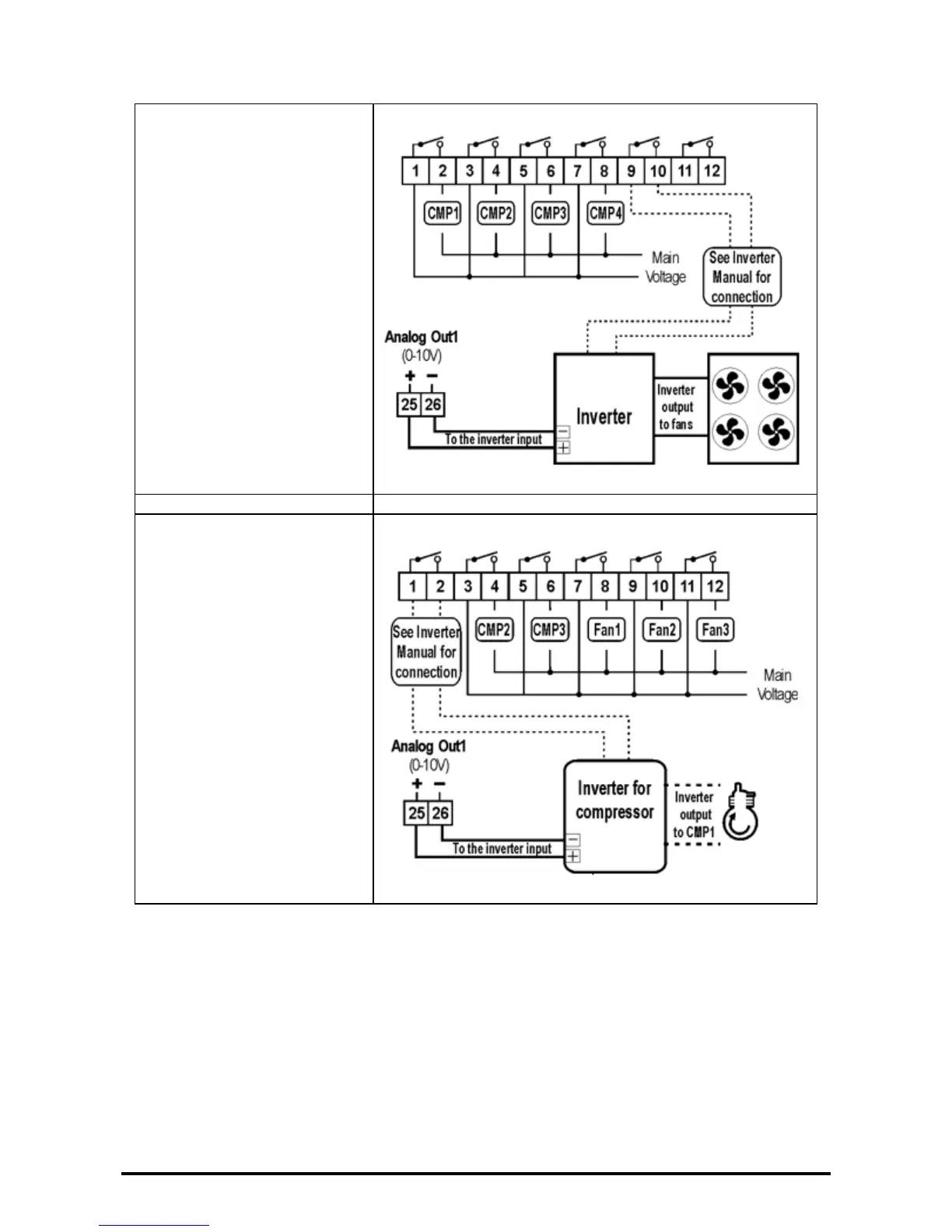

Plant with 4 compressors
with inverter for fans:
oA1 = CPr1,
oA2 = CPr1,
oA3 = CPr1,
oA4 = CPr1,
oA5 = inF*
oA6 = nu
AOC = tEn
AOF = InF
*if the inverter requires digital
input to start regulation
Plant with 1 frequency
compressor + 2 standard
compressors and 3 fans:
oA1 = InC1,
oA2 = CPr1,
oA3 = CPr1,
oA4 = FAn,
oA5 = FAn,
oA6 = FAn,
AOC = tEn
AOF = InC1
