dji Matrice 100 User Manual

6
©
2015 DJI. All Rights Reserved.
Product Prole
The DJI Matrice 100 (abbreviated as M100) is a stable, exible, and powerful ying platform. Its open
platform and highly customizable design makes it suitable for a wide range of applications in the
areas of research, business, and recreation.
The M100’s expandable center frame makes it easy to mount additional components and devices to
achieve greater functionality and results. An extra battery compartment for a second Intelligent Flight
Battery can be installed to deliver an extended ight time of up to 40 minutes.
Developers are granted full control over their ying platform with the built-in API Control feature, giving
them the freedom to customize a comprehensive aerial solution by using the DJI SDK.
Installation

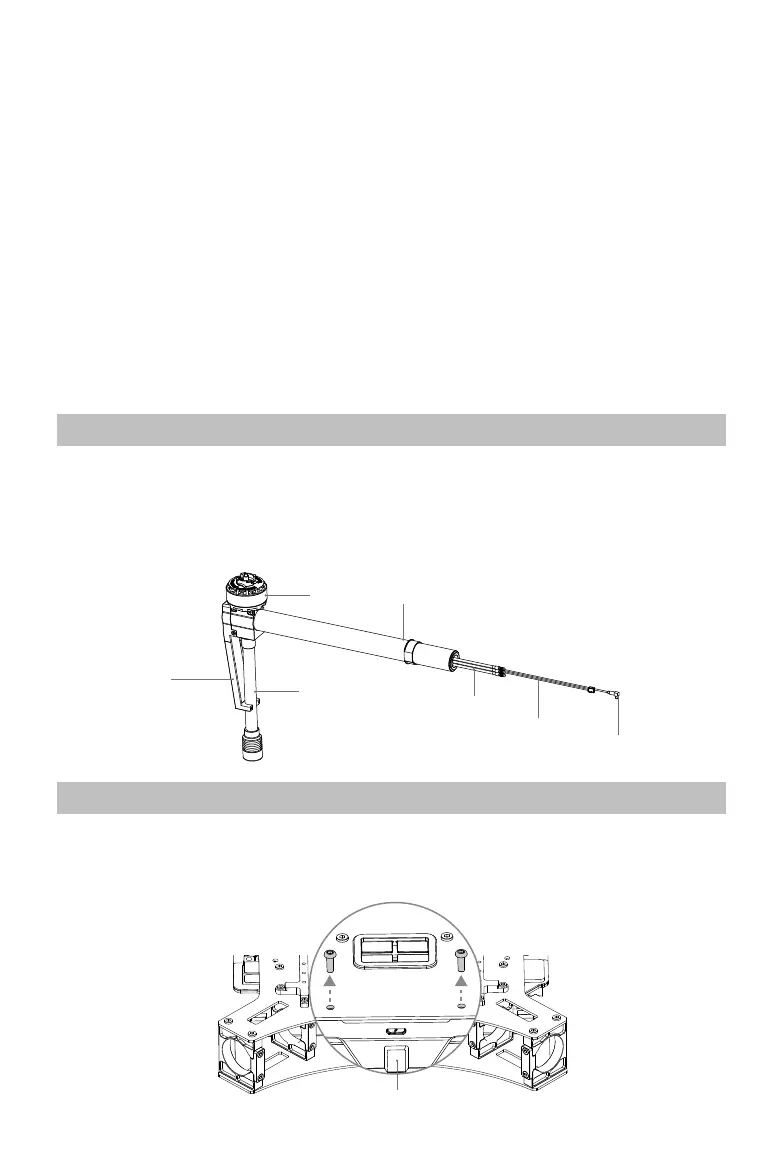

Checking the Frame Arms
1. Ensure the motors are rmly attached to the frame arms, and can rotate freely.
2. Ensure the landing gear is rmly attached to the frame arms, and the antenna covers are in good
condition.
3. Ensure that all cables are intact.
4. Identify the marks M1, M2, M3, and M4 on the four frame arms.
Checking the Center Frame
To check the center frame and connect the cables, first remove the upper plate and the battery
compartment.
1. Remove the two screws (M3x8 self-tapping) on the Aircraft Status Indicator. Then gently remove
the indicator to avoid damaging the cables.
M
Motor M1 - M4 Mark
Antenna Cover
Landing Gear
Motor Cables
LED Cable
Antenna Cable
Aircraft Status Indicator

dji Matrice 100 Specifications

General

Product color	Black
Frequency band	2.4 - 2.483 GHz
Number of rotors	4 rotors
Channels quantity	3 channels
Maximum weight capacity	3.4 kg
Maximum operating distance	5000 m
Moving control functions	Backward, Downward, Forward, Turn left, Turn right, Upward
Battery voltage	22.2 V
Battery capacity	4500 mAh

Weight and Dimensions

Weight	2355 g
