dji MATRICE 200 series User Manual

10
©
2018 DJI All Rights Reserved.
MATRICE 200 Series User Manual
M2.5×6 M3×12
1/4"
M3×5
M2×8

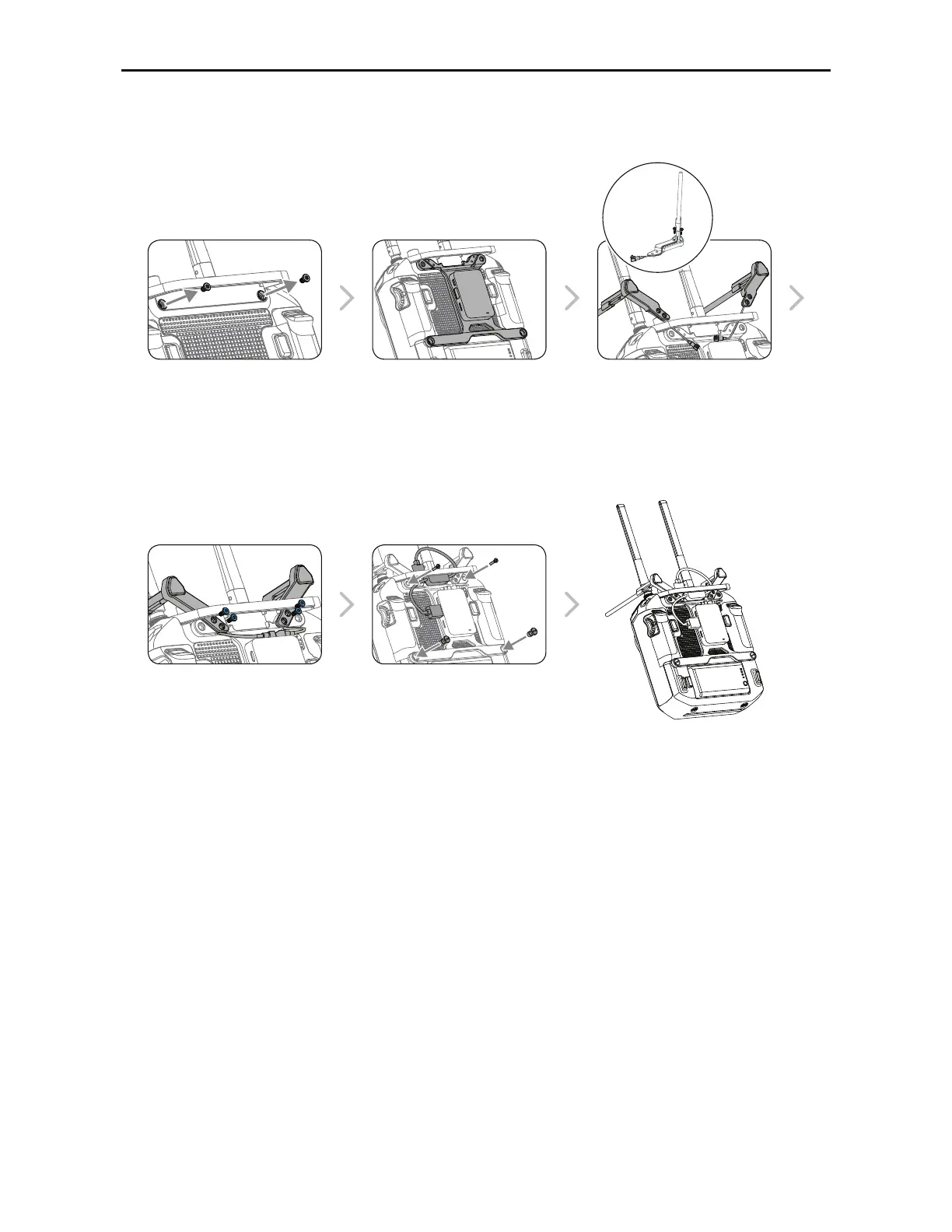

Mounting the Datalink Pro Air System to the Remote Controller
For the M200 series, only mount the Datalink Pro Air System to the M210 RTK remote controller.
Attach the clips onto the
mounting board, then connect
the antennas to the Datalink Pro
Air System.
"GmYUIF$"/)VCNPEVMFUPUIF
mounting board with the double-
sided adhesive, then secure the
mounting board using screws.
Remove the screws. "GmYUIF%BUBMJOL1SP"JS4ZTUFN
onto the mounting board with
the double-sided adhesive,
then attach the mounting board
onto the back of the remote
controller.
Thread the Datalink Pro antennas
through the clips. Make sure
that the lines of the antennas lie
in the grooves of the mounting
board where the clips attach to
prevent the antennas from being
damaged.

dji MATRICE 200 series Specifications

General

Max Takeoff Weight	6.14 kg
Ingress Protection Rating	IP43
Satellite Systems	GPS/GLONASS
Max Flight Time	38 minutes
Hovering Accuracy	Vertical: ±0.5 m, Horizontal: ±1.5 m
Diagonal Size	650 mm
Charging Temperature Range	5°C to 40°C
Operating Temperature Range	-4°F to 113°F (-20°C to 45°C)
