7. Mount the single downward gimbal connector to the aircraft using the three damping balls.
Dual Downward Gimbals
A dual downward gimbal connector is required to use the M210 or M210 RTK’s dual downward
gimbals.
Mounting the Dual Downward Gimbal Connector

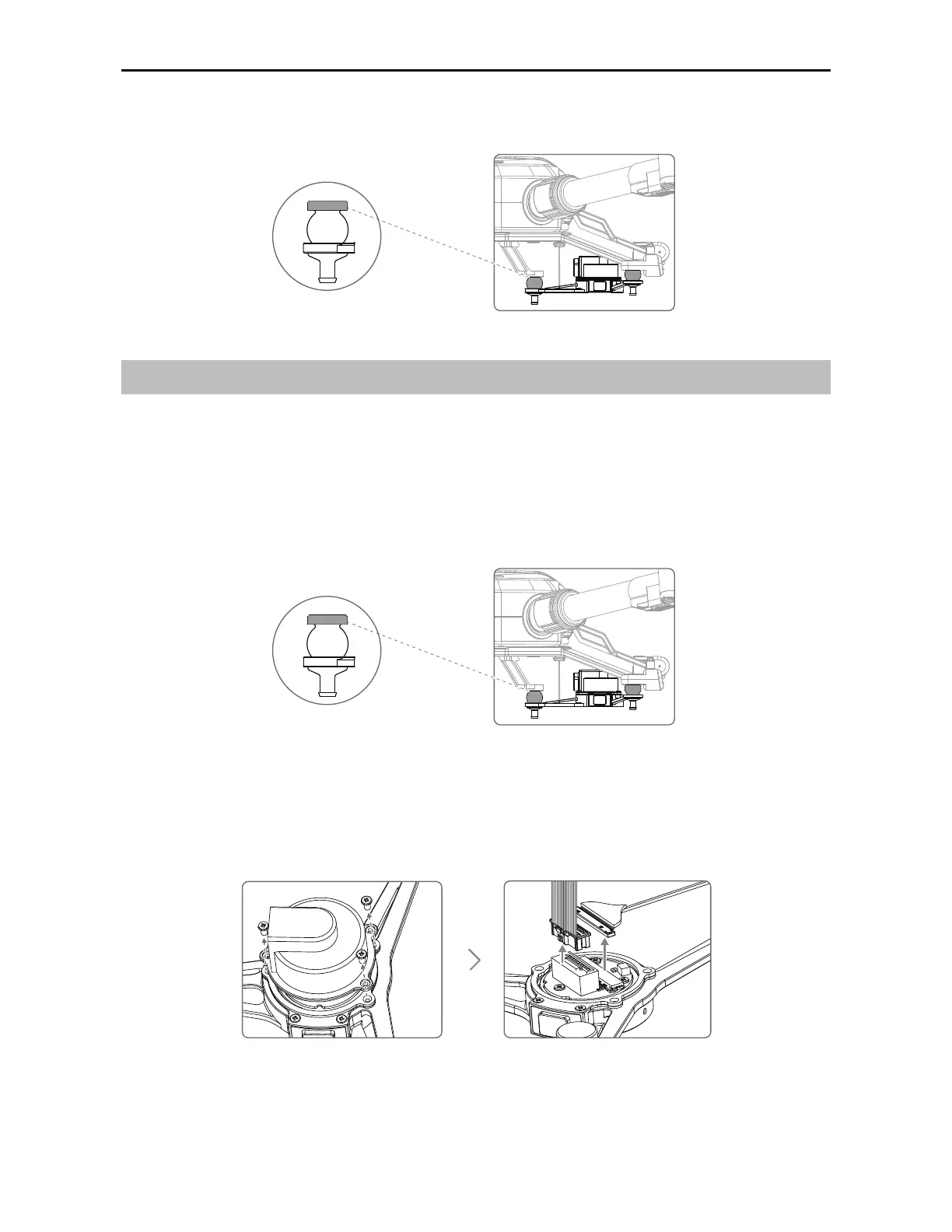

1. Detach the three damping balls. Make sure to carefully pull them from the connector by hand,
not forcefully with tools.
2. Remove the three screws on the top of the single downward gimbal connector.
3. Disconnect the gimbal signal control cable and gimbal video coaxial cable from the single
downward gimbal connector.
