MATRICE 200 Series User Manual
USB Port
64#QPSUJTVTFEUPDPOOFDUPSUIFSEFWJDFTXJUIPVUQPXFSTVQQMZEVSJOHnJHIU

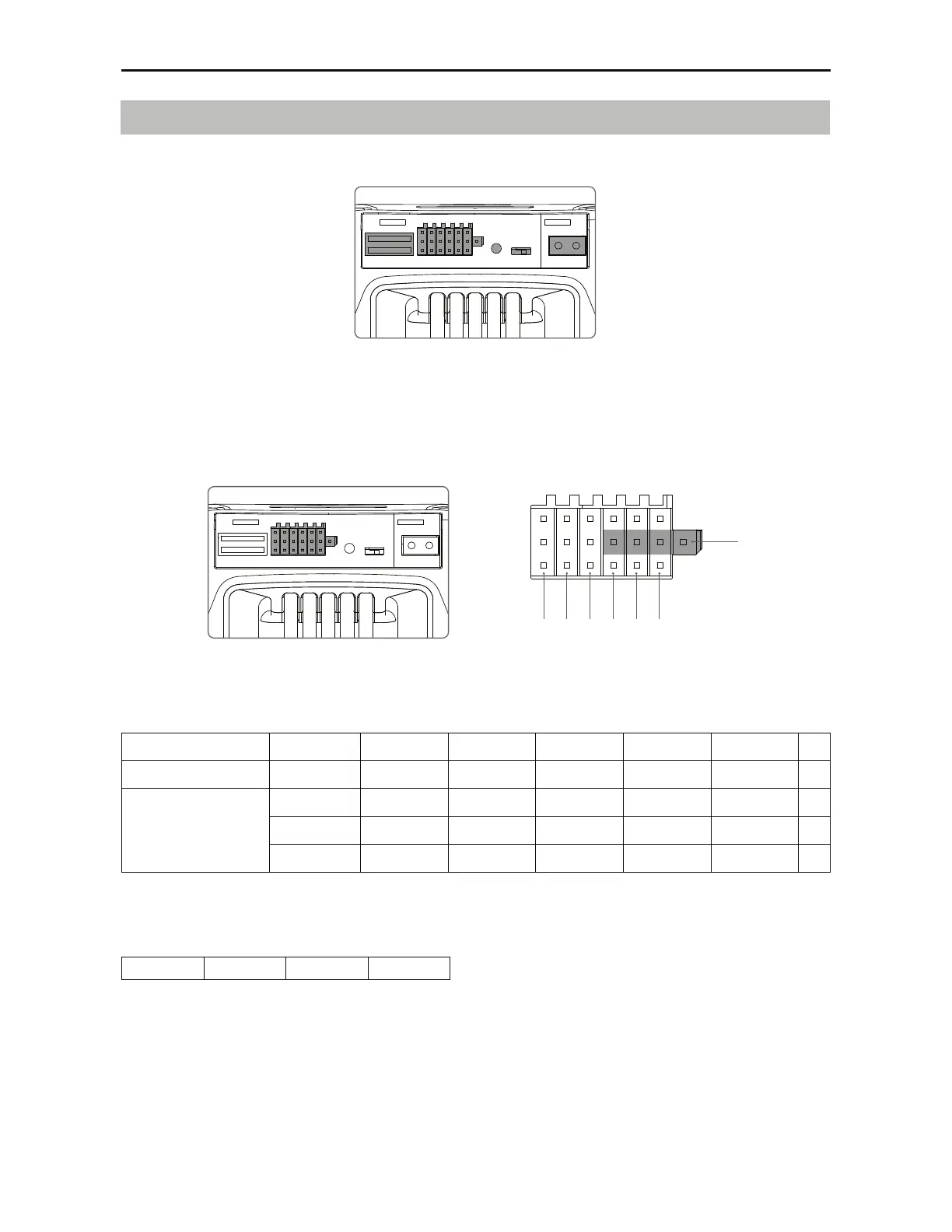

Expansion Ports
123456
7
Pins Descriptions
18.QPXFSMFWFMJT7BOEBMMQJOTDBOCFDPOmHVSFEJO%+*1JMPUBQQ
Number 1 2 3 4 5 6
Name OSDK port I/O port I/O port I/O port I/O port I/O port
Pins
(from up to down)
SDK_Tx IO/PWM5 IO/PWM4 IO/PWM3 IO/PWM2 IO/PWM1
SDK_Rx NC NC CANL CANH GND 5V
GND GND GND GND GND GND
*Coming soon.
CAN Bus Port can be used to connect to an expansion GPS module.
CANL CANH GND 5V
RC/Aircraft Linking Button and Indicator
Used to link between aircraft and Remote Controller, and the built-in LED will display the linking
status during linking procedure.
Expansion Ports
M210/M210 RTK provides several I/O ports, which can be customized in DJI Pilot app.
