MATRICE 200
Series User Manual
35
36 37
38
34
39
4132
31 40
42
44
4545
43
33

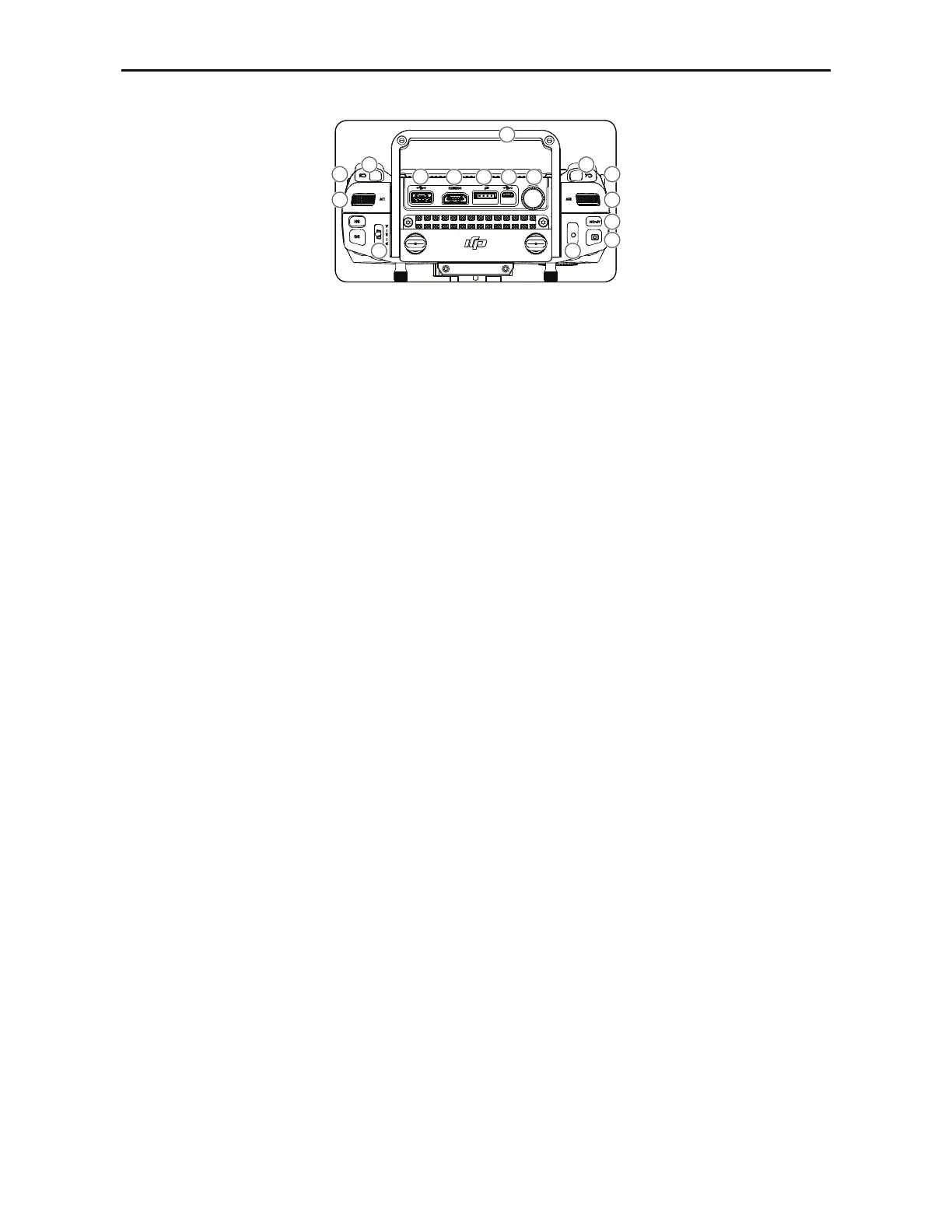

[26] Power Button
Used to turn the Remote Controller on
and off.
[27] Remote Controller Display
Shows information about the aircraft and
camera.
[28] Camera Setting Dial
Works with the EV, Shutter, Aperture and
ISO Settings Buttons to adjust their val-
ues.
[29] Customizable Button Settings Menu
Press to set Customizable Button func-
tions in the DJI GO 4 app.
[30] Customizable Buttons (BA-BH)
Customizable through the DJI GO 4 app.
[31] Left Lever
Customizable through the DJI GO 4 app.
[32] Left Dial
Controls gimbal tilt.
[33] Flight Mode Switch
Switch between P-mode, S-mode, and
A-mode.
[34] Handle Bar
[35] USB Port
Connection to mobile device for DJI GO 4
app if used a third party mobile device.
[36] HDMI A Port
HDMI A Port is for video output.
[37] CAN Bus
Used to connect external devices.
[38] Micro USB Port
6TFEUPVQEBUFmSNXBSF
[39] SDI Port (for Video Output)
Used for video output.
[40] Right Lever
Customizable through the DJI GO 4 app.
[41] Right Dial
Used to control gimbal pan.
[42] Auto Focus Button
Press to focus automatically.
[43] Record Button
Press to start recording video. Press
again to stop recording.
[44] Shutter Button
Press to take a photo. Photos can also be
captured during video recording.
[45] Customizable Buttons (C1-C4)
Customizable through the DJI GO 4 app.
