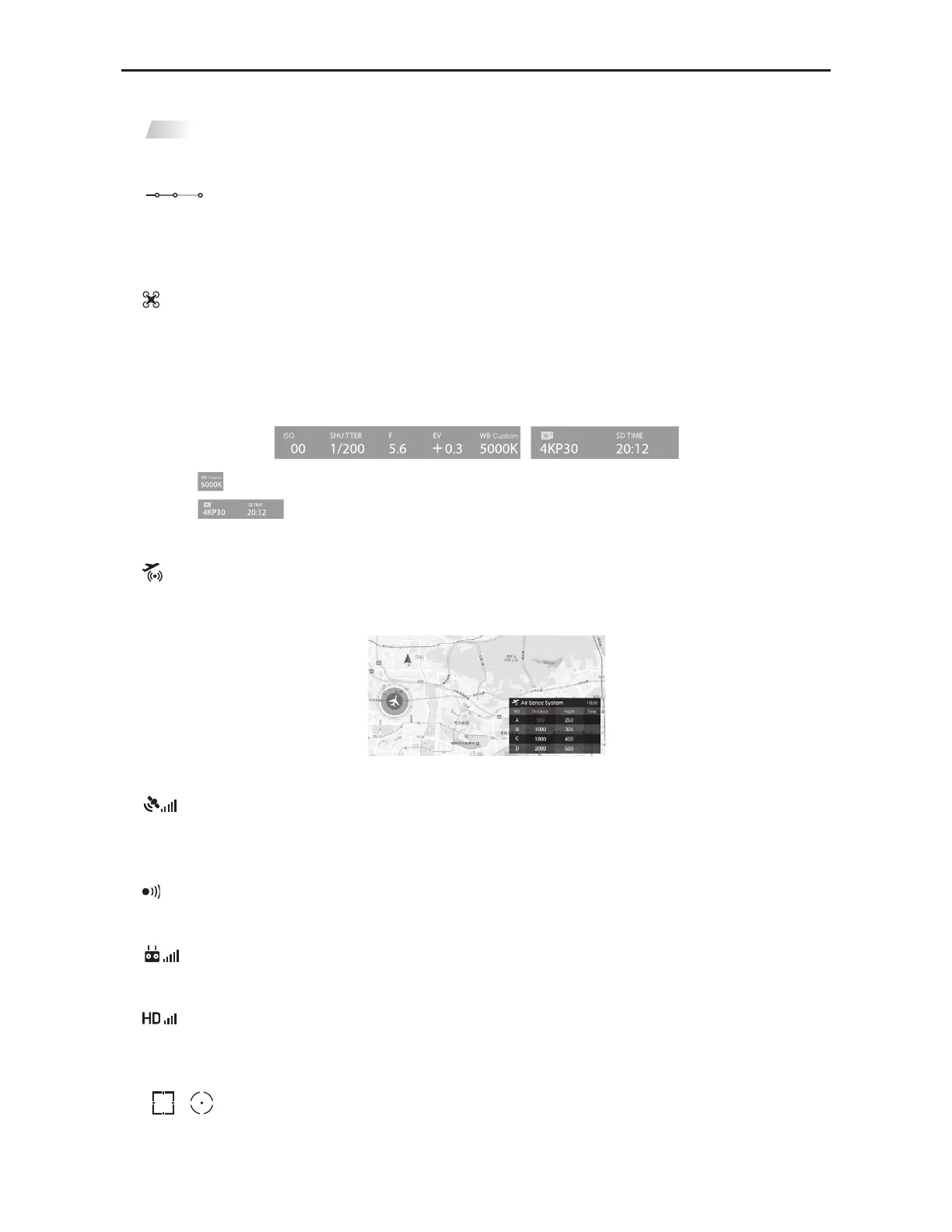

1. System Status
READY TO GO (GPS)
5IJTJDPOJOEJDBUFTBJSDSBGUnJHIUTUBUVTBOEEJTQMBZTWBSJPVTXBSOJOHNFTTBHFT
2. Battery Level Indicator
: The battery level indicator provides a dynamic display of the battery level. The colored
zones on the battery level indicator represent the power levels needed to carry out different
functions.
3. Flight Mode
5IFUFYUOFYUUPUIJTJDPOJOEJDBUFTUIFDVSSFOUnJHIUNPEF
5BQUPDPOmHVSFUIF'MJHIU$POUSPMMFS4FUUJOHT5IFTFTFUUJOHTBMMPXZPVUPNPEJGZnJHIUMJNJUTBOE
set gain values.
4. Camera Parameters
Displays camera settings parameters and capacity of the Micro SD card.
(1) Tap to set white balance parameters.
(2) Tap
to set photo and video parameters.
5. AirSense Status
: AirSense Status displays information about nearby manned aircraft to ensure flight safety,
including the distance between DJI aircraft and manned aircraft. AirSense will instruct users to land if
nearby aircraft are detected.
6. GPS Signal Bars
4IPXTDVSSFOU(14TJHOBMTUSFOHUI'PVS(14TJHOBMCBSTJOEJDBUFTTVGmDJFOU(14TUSFOHUI
to return to home.
7. Obstacle Sensing Function Status
: Tap this icon to enable or disable features provided by the Vision System.
8. Remote Controller Signal Bars
: This icon shows the strength of the remote controller signal.
9. HD Video Link Signal Bars
: This icon shows the strength of the HD video downlink connection between the aircraft
and remote controller.
10. Focus/Metering Button
/ : Tap to switch between the focus and metering modes. Tap to select an object for
focusing or metering.
