Controlling the Aircraft

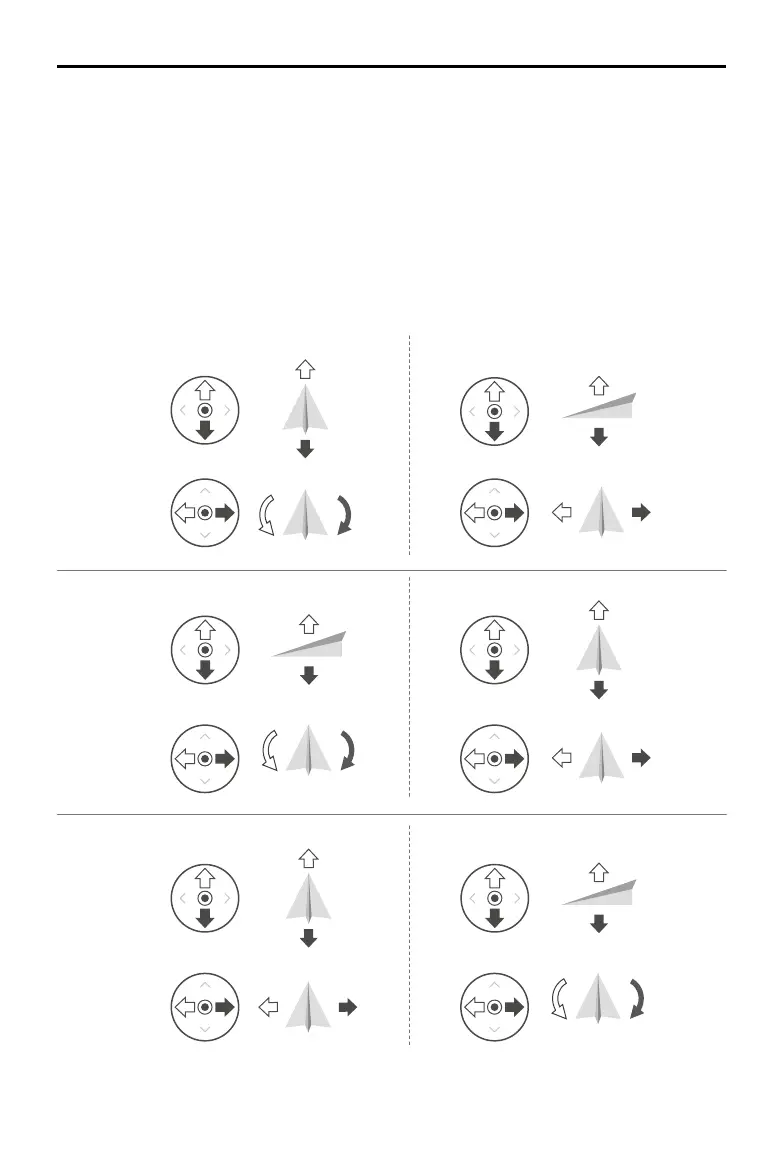

The control sticks control the aircraft’s orientation (yaw), forward/ backward movement (pitch), altitude
(throttle), and left/right movement (roll). The control stick mode determines the function of each control
stick movement. Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and
custom modes can be congured in DJI GO 4. The default mode is Mode 2.
In each of the three pre-programmed modes, the Mavic 2 hovers in place at a constant orientation when
both sticks are centered. Pushing a control stick away from the center position performs the functions
shown in the gure below.
Right StickLeft Stick
Turn RightTurn Left
Up
Down
RightLeft
Up
Down
Turn RightTurn Left
RightLeft
Forward
Backward
Left Stick Right Stick
Forward
Backward
Right Stick
Up
Down
Forward
Backward
Left Stick
Turn RightTurn Left
RightLeft
Mode 1
Mode 2
Mode 3

dji MAVIC 2 ZOOM Specifications

General

Megapixel	12 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/2.3 \
Camera shutter speed	8 – 1/8000 s
Streaming capability	Yes
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	4000 x 3000 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	83 °
Bitrate at maximum video resolution	100 Mbit/s
Built-in processor	-
Type	Quadcopter
Product color	Gray
Construction type	Ready-to-fly (RTF)
Moving control functions	Backward, Downward, Forward, Turn left, Turn right
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Operating temperature (T-T)	-10 - 40 °C
Cables included	Lightning, Micro-USB, USB Type-C
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	905 g
Battery weight	297 g
