dji MAVIC 2 ZOOM User Manual

Mavic 2 Pro/Zoom User Manual
44
©
2018 DJI All Rights Reserved.

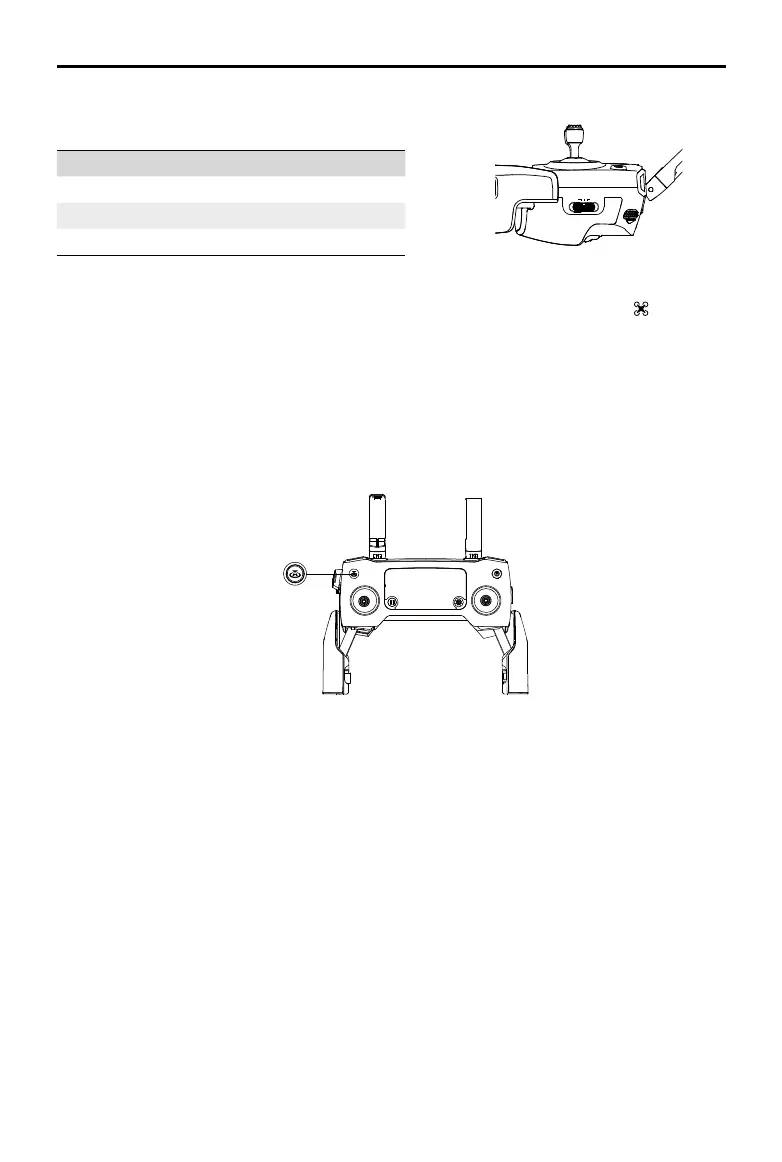

Position Flight Mode
S S-mode
P P-mode
T T-mode
Flight Mode Switch
Toggle the switch to select the desired ight mode.
Regardless of which position the switch is in on the remote controller, the Mavic 2 Pro/Zoom begins
in P-mode by default. To switch ight modes, rst go to Camera View in DJI GO 4, tap and enable
“Multiple Flight Modes”. After enabling multiple ight modes, toggle the switch to P and then to S or T to
switch ight modes.
RTH Button
Press and hold the RTH button to start the Return to Home (RTH) procedure where the aircraft returns
to the last recorded Home Point. Press this button again to cancel RTH and regain control of the
aircraft. Refer to the Return to Home section for more information about RTH.
T P
S
C1 and C2 Button
The functions of the C1 and C2 buttons are set in DJI GO 4. The default conguration for the C1 button
is Center Focus and the default conguration for the C2 button is Playback. Remote Controller Alert
Remote controller will sound an alert during RTH or when the battery level is low. RTH Alert and low
battery level (6% to 15%) alert can be canceled by pressing the power button once, and the critical
battery level (less than 5%) alert can not be canceled.
Remote Controller Alert
Remote controller will sound an alert during RTH or when the battery level is low. RTH Alert and low
battery level (6% to 15%) alert can be canceled by pressing the power button once, and the critical
battery level (less than 5%) alert can not be canceled.
Optimal Transmission Zone
The signal between the aircraft and the remote controller is most reliable when the antennas are
positioned in relation to the aircraft as depicted below.

dji MAVIC 2 ZOOM Specifications

General

Megapixel	12 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/2.3 \
Camera shutter speed	8 – 1/8000 s
Streaming capability	Yes
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	4000 x 3000 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	83 °
Bitrate at maximum video resolution	100 Mbit/s
Built-in processor	-
Type	Quadcopter
Product color	Gray
Construction type	Ready-to-fly (RTF)
Moving control functions	Backward, Downward, Forward, Turn left, Turn right
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Operating temperature (T-T)	-10 - 40 °C
Cables included	Lightning, Micro-USB, USB Type-C
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	905 g
Battery weight	297 g
