LCD Screen

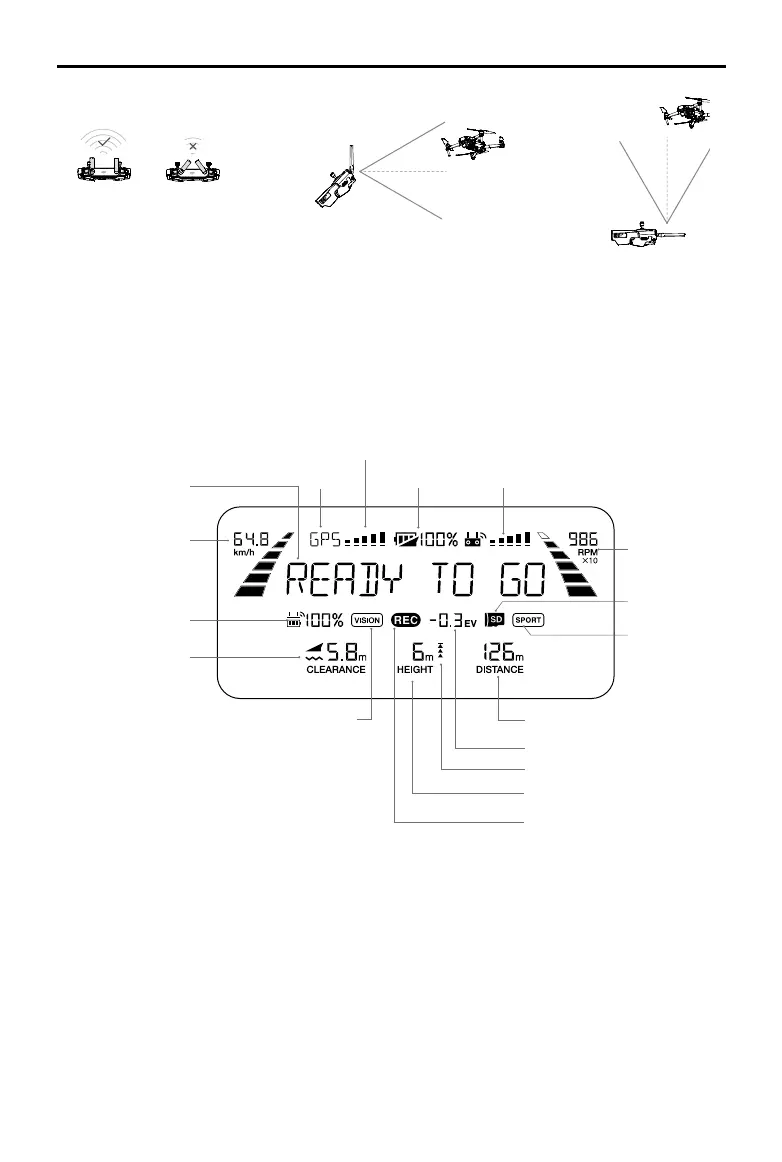

The LCD Screen displays various system statuses including real-time ight telemetry and battery levels.
Refer to the gure below for the meaning of each icon on the LCD Screen.
* On the remote controller’s screen, the Primary remote controller displays “MCTL” while the Secondary remote
controller will display the ight mode.
strong
weak
Ensure that the aircraft is ying within the optimal transmission zone. To maintain optimal transmission
performance, adjust the remote controller and antennas according to the gure above.
Flight speed
Aircraft battery level
GPS signal strength
Flight mode*
RC signal strength
Motor rotation
speed
System status prompt
RC battery level
Distance to the ground

Vision System
Camera status
Flight altitude
Exposure compensation
Ascend/Descend
Flight distance
Sport modes
Micro SD
placement

dji MAVIC 2 ZOOM Specifications

General

Megapixel	12 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Optical sensor size	1/2.3 \
Camera shutter speed	8 – 1/8000 s
Streaming capability	Yes
Supported video modes	1080p, 2160p
Image formats supported	DNG, JPEG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum image resolution	4000 x 3000 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	83 °
Bitrate at maximum video resolution	100 Mbit/s
Built-in processor	-
Type	Quadcopter
Product color	Gray
Construction type	Ready-to-fly (RTF)
Moving control functions	Backward, Downward, Forward, Turn left, Turn right
USB ports quantity	1
Operating frequency	2400 - 2483, 5725 - 5850 MHz
Maximum device width	160 mm
Maximum speed	20 m/s
Frequency band	2.400 - 2.483, 5.725 - 5.850 GHz
Number of axis	3
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	29 min
Maximum flight time	31 min
Maximum ascent speed	5 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.5 m
Horizontal hover accuracy	1.5 m
Maximum operating distance	8000 m
Maximum pitch angular velocity	200 °/sec
Battery voltage	15.4 V
Battery capacity	3850 mAh
Transmitter battery capacity	3950 mAh
Output power	60 W
AC adapter power	80 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.41 A
AC adapter output voltage	17.6 V
Equivalent Isotropically Radiated Power (EIRP)	26 dBmW
Operating temperature (T-T)	-10 - 40 °C
Cables included	Lightning, Micro-USB, USB Type-C
Internal memory	8 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Weight and Dimensions

Depth	322 mm
Width	242 mm
Height	84 mm
Weight	905 g
Battery weight	297 g
