dji ROBOMASTER - Mounting the Board Type C

ROBOMASTER Development Board Type C
User Manual
4
© 2020 DJI All Rights Reserved.

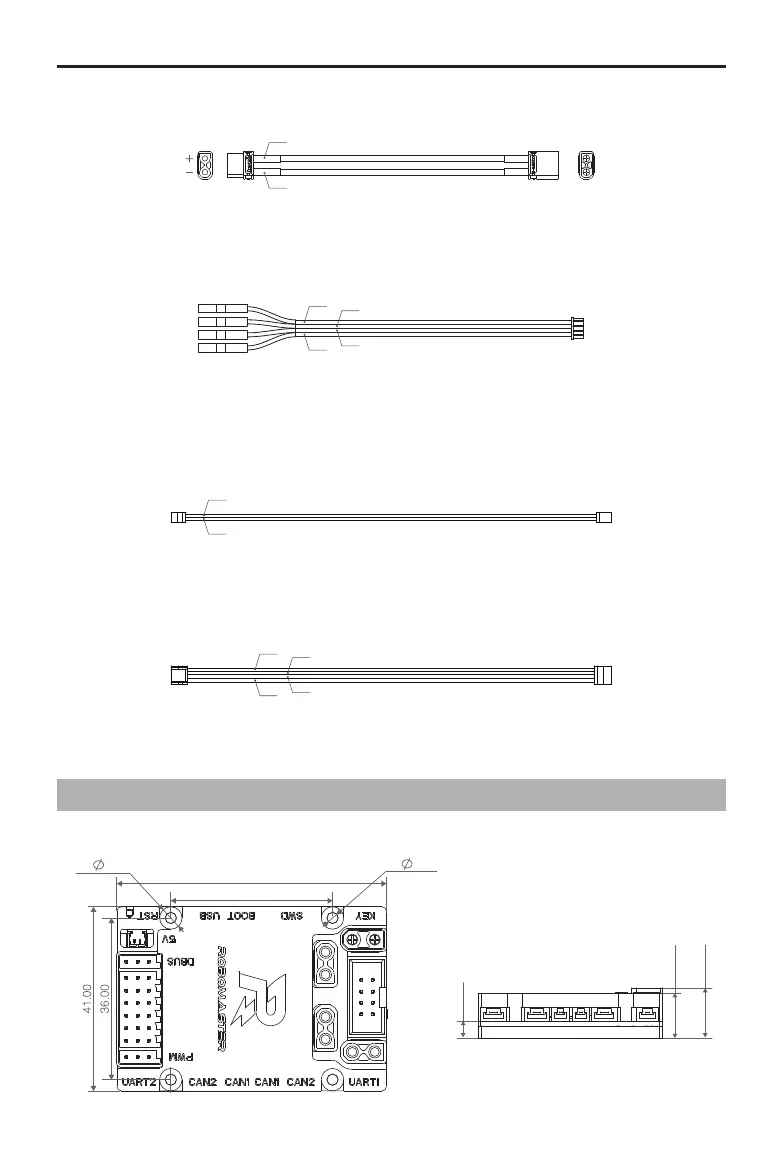

Cable length: 450 mm; A: Positive electrode (Red); B: Negative electrode (Black)
A
B
SWD Cable
2-Pin CAN Cable
Cable length: 350 mm; A: CANL (Black); B: CANH (Red)
Cable length: 100 mm; A: SWDIO (Black); B: SWCLK (Black); C: GND (Black); D: 3.3 V (Black)
4-Pin CAN Cable
Cable length: 350 mm; A: CANL (Grey); B: CANH (Grey); C: GND (Grey); D: 5 V (Red)
Mounting the Board Type C
Refer to the dimensions in the gure below when mounting the Board Type C.
A
B
D
C
A
B
A
B
D
C
4−
5.00
4−
2.50
60.00
36.00
Unit: mm
14.50
5.60
16.30
XT30 Power Cable
