ZENMUSE X7 User Manual
Mechanical Range
The 3-axis gimbal provides an incredibly stable and mobile platform for the camera system to
capture completely smooth images and videos. The gimbal can tilt the camera up to 165 de-
grees, pan 300 degrees, and roll 40 degrees in either direction.
Take o from at, open ground and protect the gimbal at all times.
Always ensure that the Gimbal Connector 2.0 on the Inspire 2 is positioned correctly
when mounting, otherwise the camera will not mount.
Remove the Zenmuse X7 by pressing the gimbal and camera detach button on the
Inspire 2.
Only remove the Zenmuse X7 after powering o the aircraft.
+20°
+40°
-20°
-300°
+300°
-125°
0°

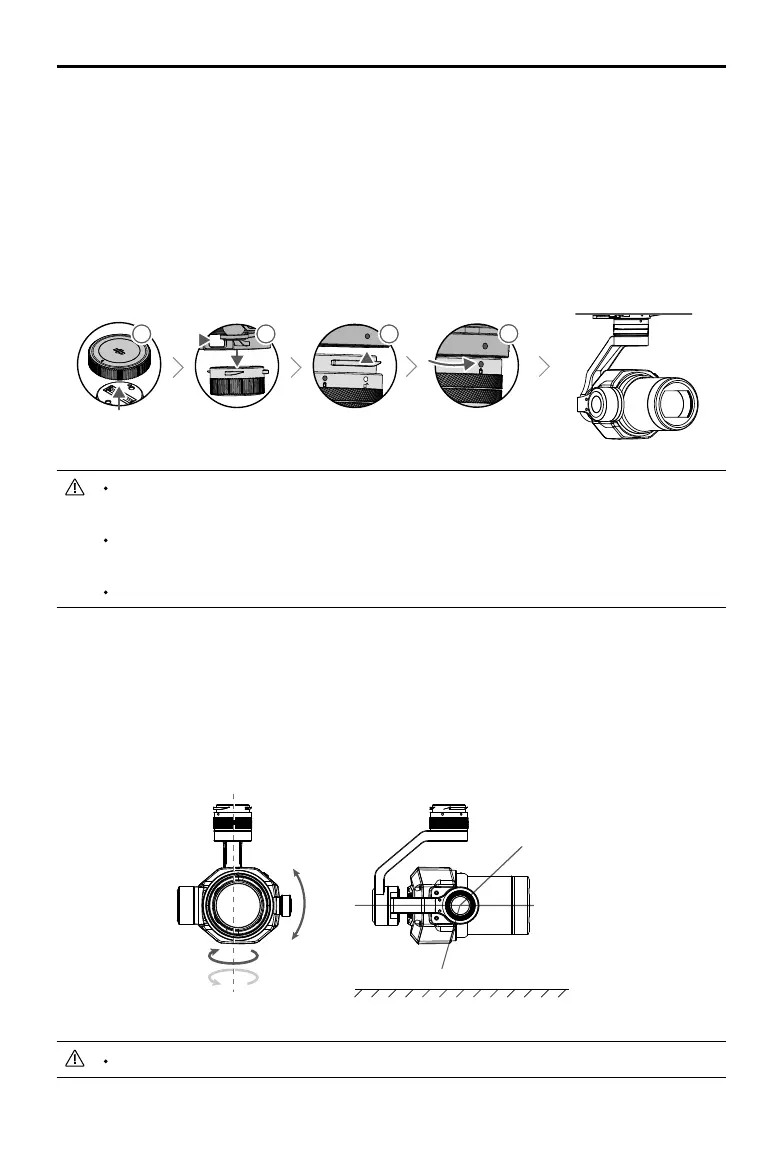

Mounting the Zenmuse X7 to an Aircraft
The following steps show how to mount the Zenmuse X7 to a DJI Inspire 2 drone:
1. Remove the gimbal cap from the Zenmuse X7.
2. Press the gimbal and camera detach button on the Inspire 2. Rotate the gimbal cap on the
Inspire 2 to remove it.
3. Align the white dot on the gimbal with the red dot on the Inspire 2 and insert the gimbal.
4. Rotate the gimbal lock to the locked position by aligning the red dots.
2 3
4
11
Ground Level
