DLab OS20-Pro - System Assembly Guide; Install Stand; Install Stirring Impeller

6
2.3 Circuit Connections (OS20-Pro&OS40-Pro)

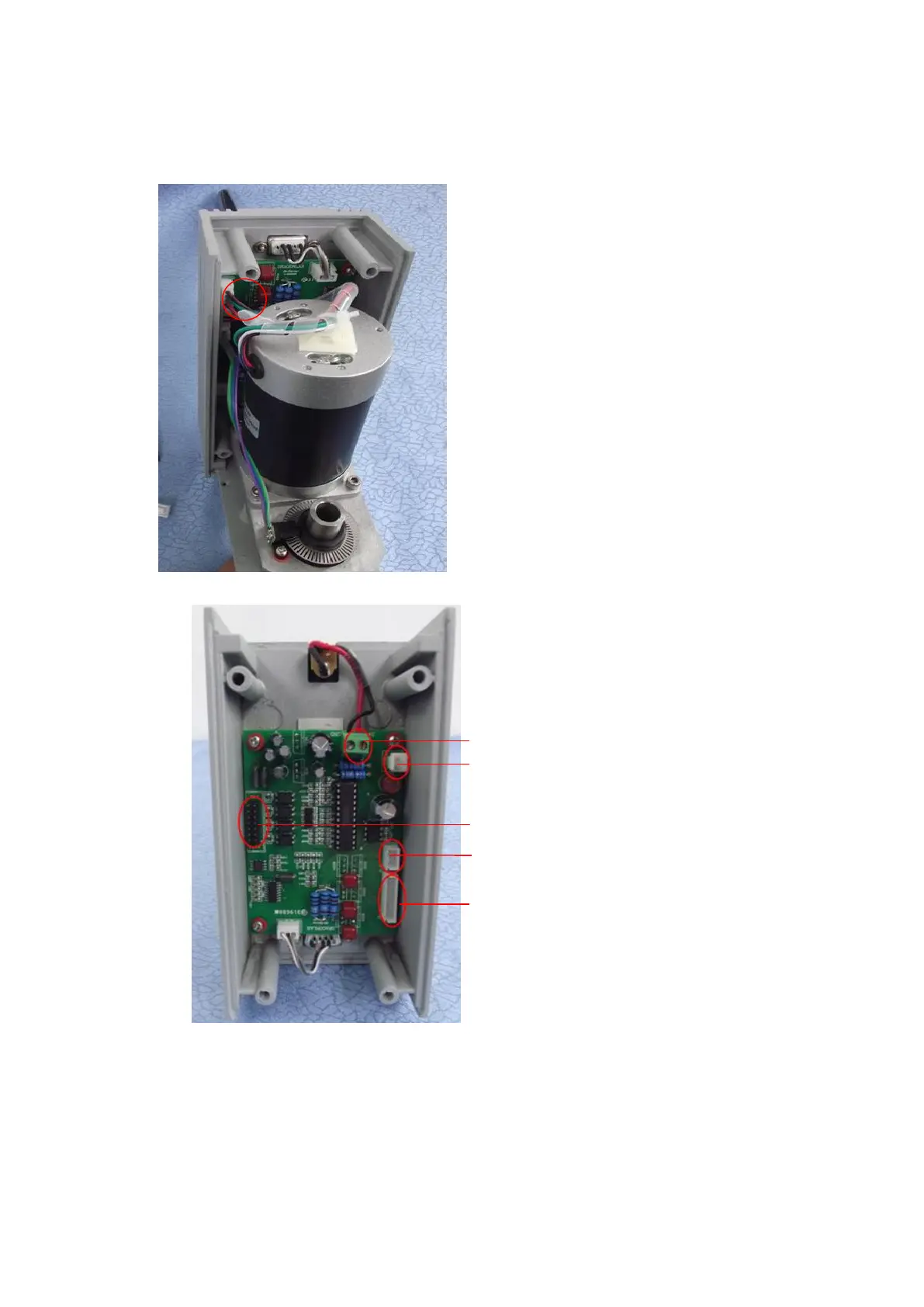

Step 1:
Circuit connections are performed
at the red circle. Before close the
upper guard and install instrument,
please carefully check the cables
and make sure they are correctly
connected.
Power Interface
Power switch Interface
Ribbon Cable Interface of LCD PCB
Photosensor interface
Motor interface
