Step 4:
Separate the guard module and
movement module.

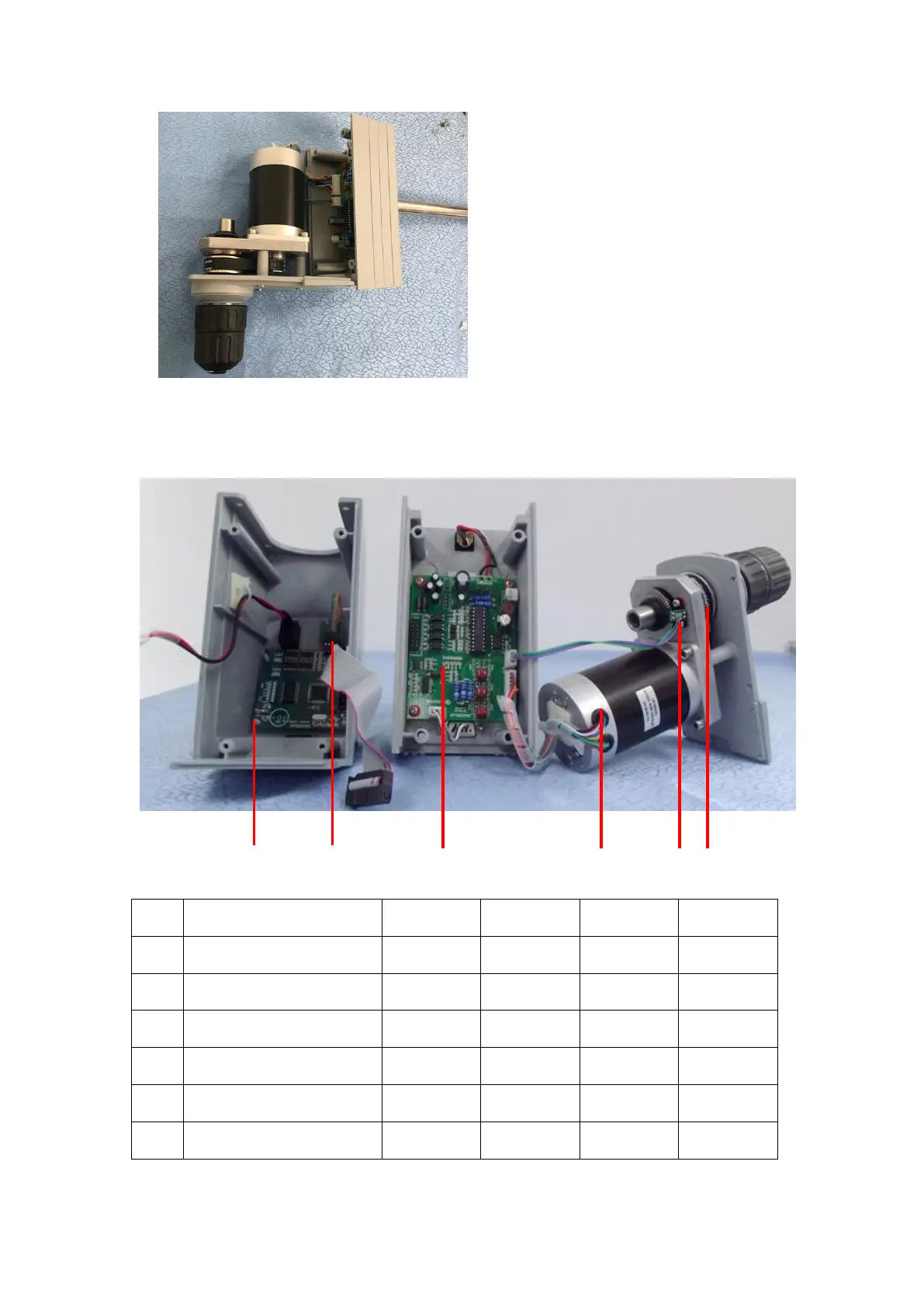

2.2 Main parts illustration
1 2 3 4 5 6
Item Spare part 0S20-Pro OS20-S OS40-Pro OS40-S
1 Master Control Board 18100472 18101620 18100472 18101620
2 Encoder/potentiometer 18100483 18100489 18100483 18100489
3 Driven Board 18100651 18101619 18100473 18101619
4 Motor 18100493 18100493 18100492 18100492
5 photoelectric switch 18100484 / 18100484 /
6 Belt 18200630 18200630 18200630 18200630
