Introduction
Page 4

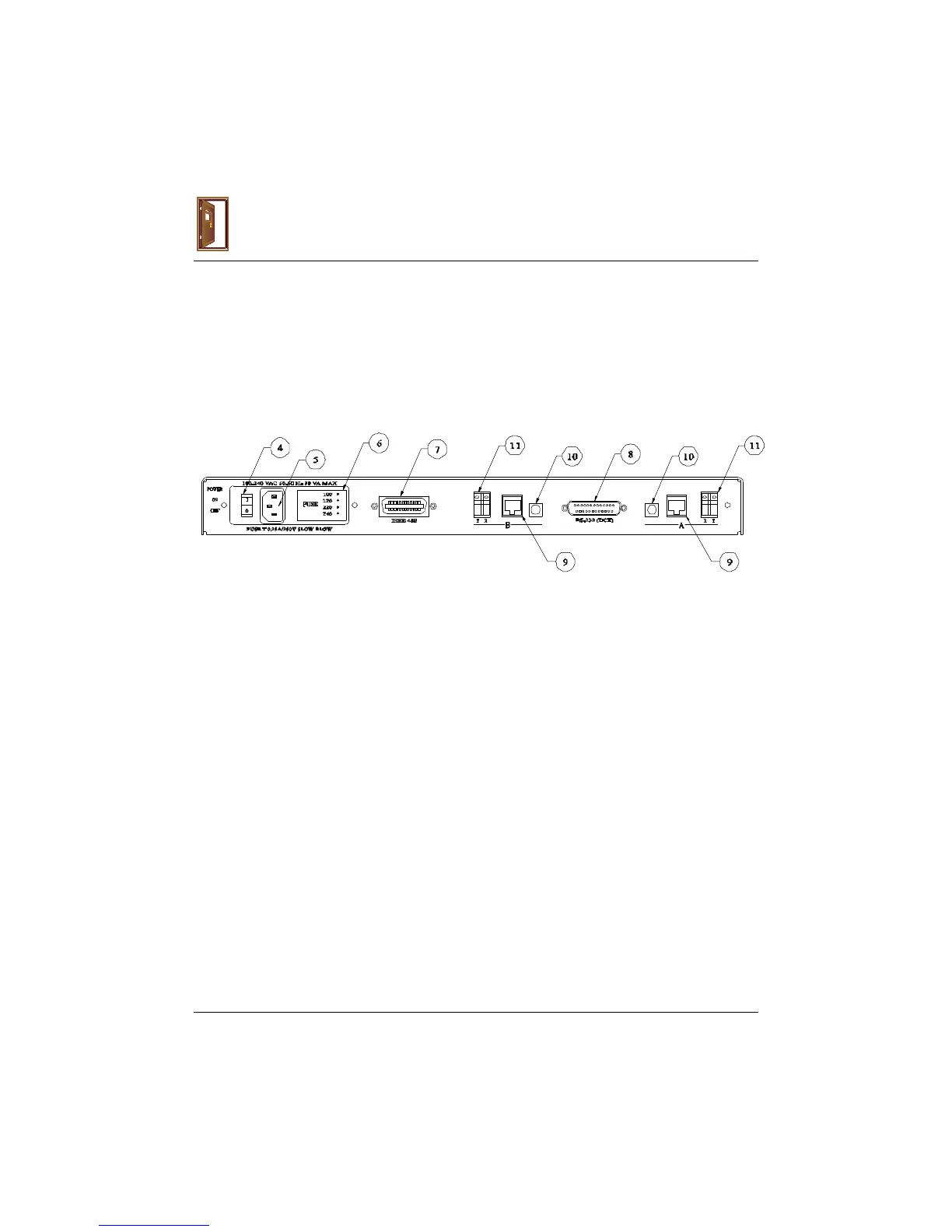

Fig. 1.2 The DLS 50's Back Panel
5. AC power input plug
6. Power voltage selector and fuse case
7. IEEE 488 interface connector for remote control.
8. RS-232 serial interface connector for remote control.
9. Modular connector for device under test (internally connected to items 3,
10 and 11).
10. Modular connector for injection of impairments (internally connected to
items 3, 9 and 11).
11. Terminal strip for connection to device under test (internally connected to
items 3, 9 and 10).
