Introduction
Page 3
The standard DLS 50 simulates 12 kft or 3.6 km of wireline. The extended version
provides an additional 8 kft or 2.4 km of wireline. The various types of DLS 50 that are
presently available are:
Standard DLS 50 Extended DLS 50
22 AWG, 12 kft 22 AWG, 20 kft
24 AWG, 12 kft 24 AWG, 20 kft
26 AWG, 12 kft 26 AWG, 20 kft
0.4 mm PE, 3.6 km 0.4 mm PE, 6.0 km
0.6 mm German, 3.6 km 0.6 mm German, 6.0 km

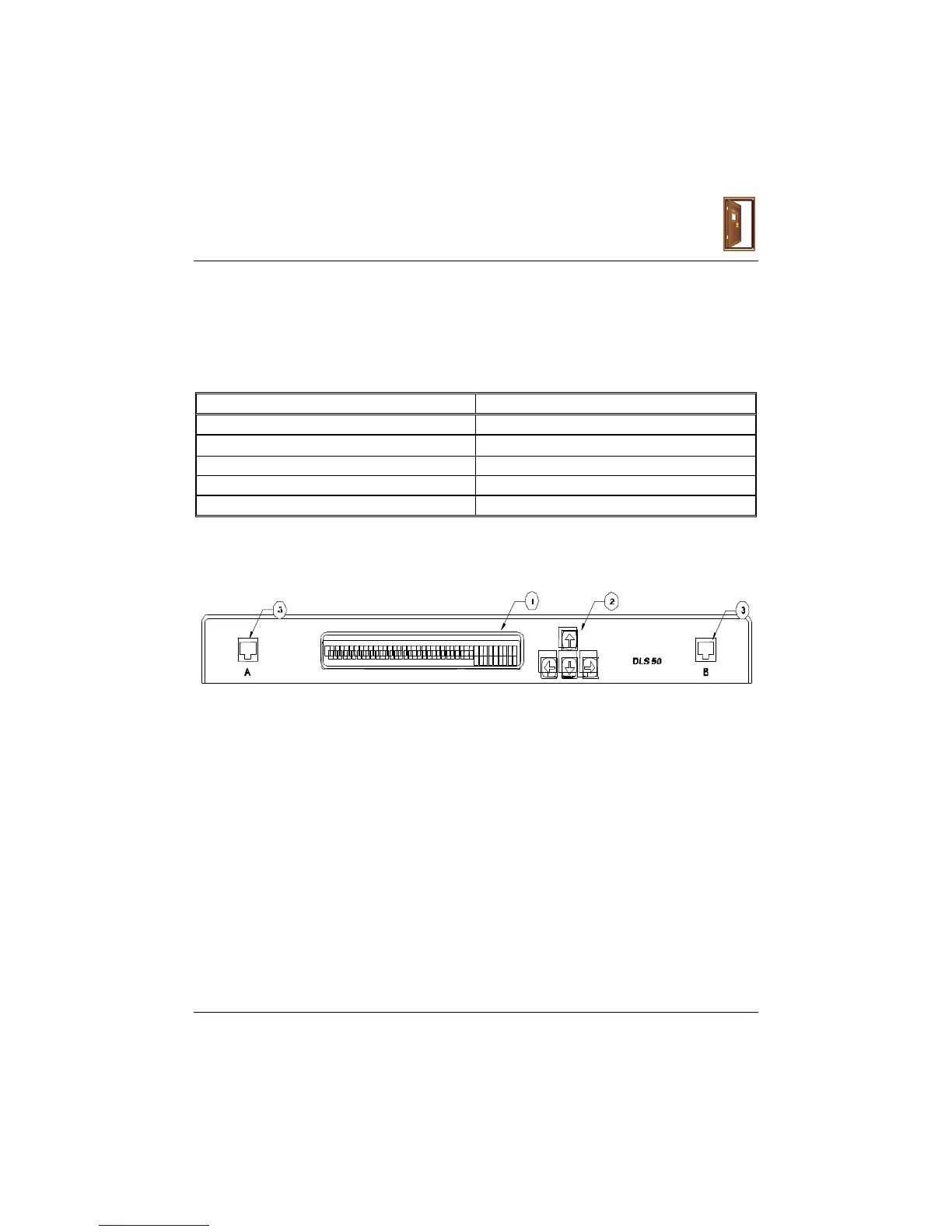

Fig. 1.1 The DLS 50's Front Panel
1. Liquid crystal display (LCD).
2. Menu control / setup keys.
3. RJ-45 modular connector for device under test, one on each end of the
wireline (internally connected to items 9, 10 and 11).
4. Power switch
