Door Strike Relay Operation
As soon as the user code sent from the reader
is verified by the panel, the keypad door strike
relay activates for five seconds. During this
time, the access door connected to Zone 2
must be opened to start the programmed
entry/exit timer and zone Bypass (Soft-
Shunt™) if programmed and used.
Note: The five–second door strike is panel
programmable when the keypad is used on an
XR150/XR550 Series panel. Refer to the panel
Programming Guide (LT-1232) as needed.
Zone 2 Door Contact with Bypass (Soft-Shunt)
If the door being released by the 7873 keypad is protected, you can provide a
programmed bypass time by connecting its contact to Zone 2 (white/red pair) on
the keypad and enabling the Bypass feature. See Zone 2 Bypass on page 19 for more
information. Door contacts may be N/C or N/O.
1K EOL
1K EOL
1K EOL
1K EOL
Green/White –
Connect Reader
Data 0
White – Connect
Reader Data 1
Orange – N/O
Gray – Common
Violet – N/C
Yellow/White
White/Yellow
Orange White
White/Orange
Red/White
White/Red
Brown/White
White/Brown
Black – Ground
Green – Receive Data
Yellow – Send Data
Red – Keypad Power
– Zone 4
– Zone 3
– Zone 2
– Zone 1
All Keypads
Zones 1 to 4
7800 Series Keypads
Model 333 Supressor
Common
–+
DC Door Strike
DMP 505-12
Power Supply
Normally
Open
Normally
Closed
Surface and Backbox
Mounting Holes
Keypad Back

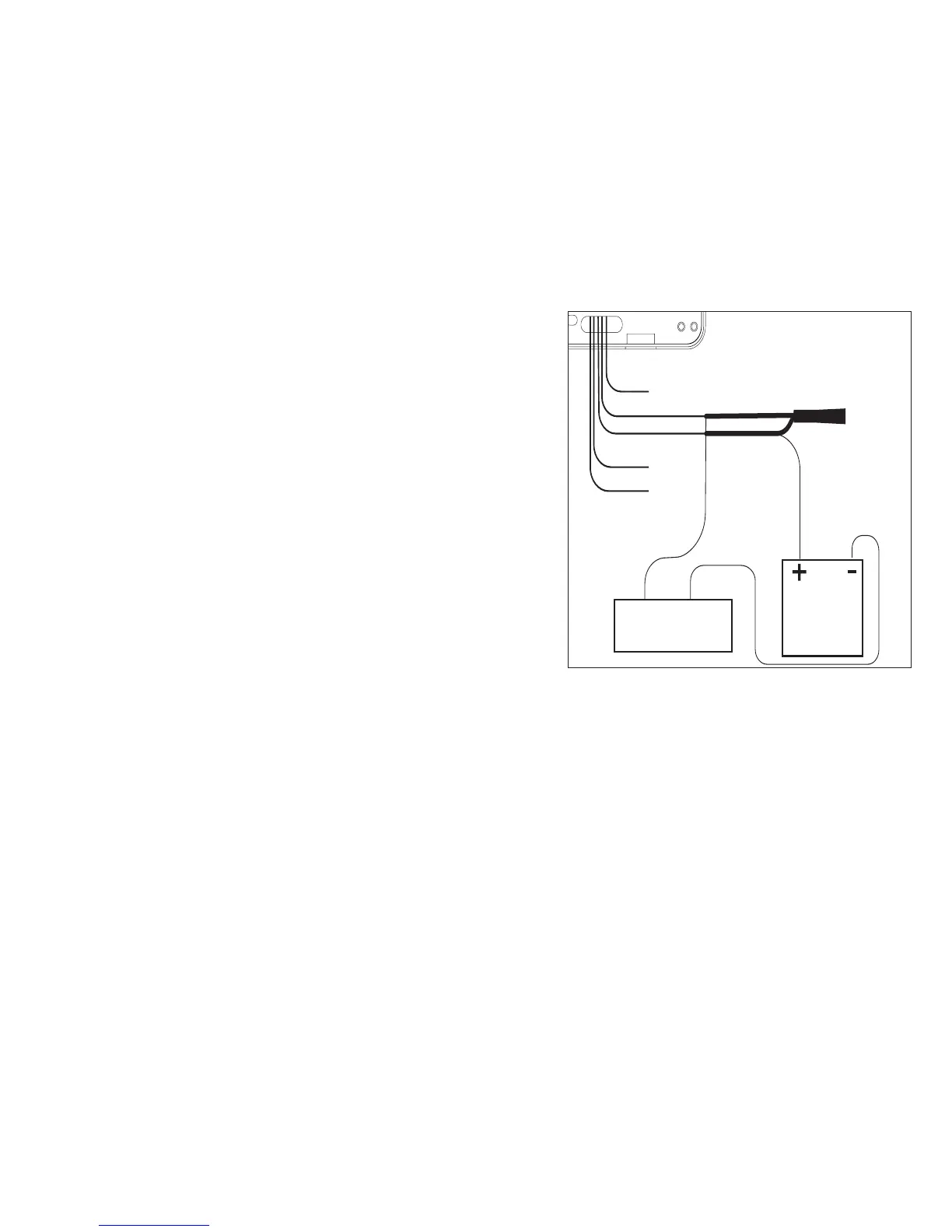

Figure 4b: Door Strike Wiring
Using the 7800 Keypad for Access Control
