End User Training
This section covers 7872 and 7873 keypads and contains three dierent sections:
• Keypad Arming and Disarming
• Keypad Access Control
• Keypad Entry Delay
All of the examples displayed assume that CLOSING CODE is YES in panel programming.
Note: Figures 16 through 18 show the user presenting a card to the keypad. When an
external reader is connected to a 7873 keypad, the user presents a card to the reader
rather than to the keypad.
Keypad Arming and Disarming
Area System Arming and Disarming
Press the lock icon and select the arming/disarming option. The keypad displays ENTER
CODE: -. Present a card to the reader. Once validated by the system, all areas assigned to
your code arm or disarm automatically and the 7873 keypad door strike relay activates.
See Figure 16.
End User Training
RESET
1 ABC
5 MNO
9 YZ
2 DEF
6
PQR
0
3 GHI
7
STU
4 JKL
8 VWX
CMD
ALL
CHIME PERIM
HOME
SLEEP
USER MENU
ENTER CODE: -
Exit delay starts.
The System activates the Door Strike Relay and arms the area.
RESET
1 ABC
5 MNO
9 YZ
2 DEF
6
PQR
0
3 GHI
7
STU
4 JKL
8 VWX
CMD
ALL
CHIME PERIM
HOME
SLEEP
ARM DISARM

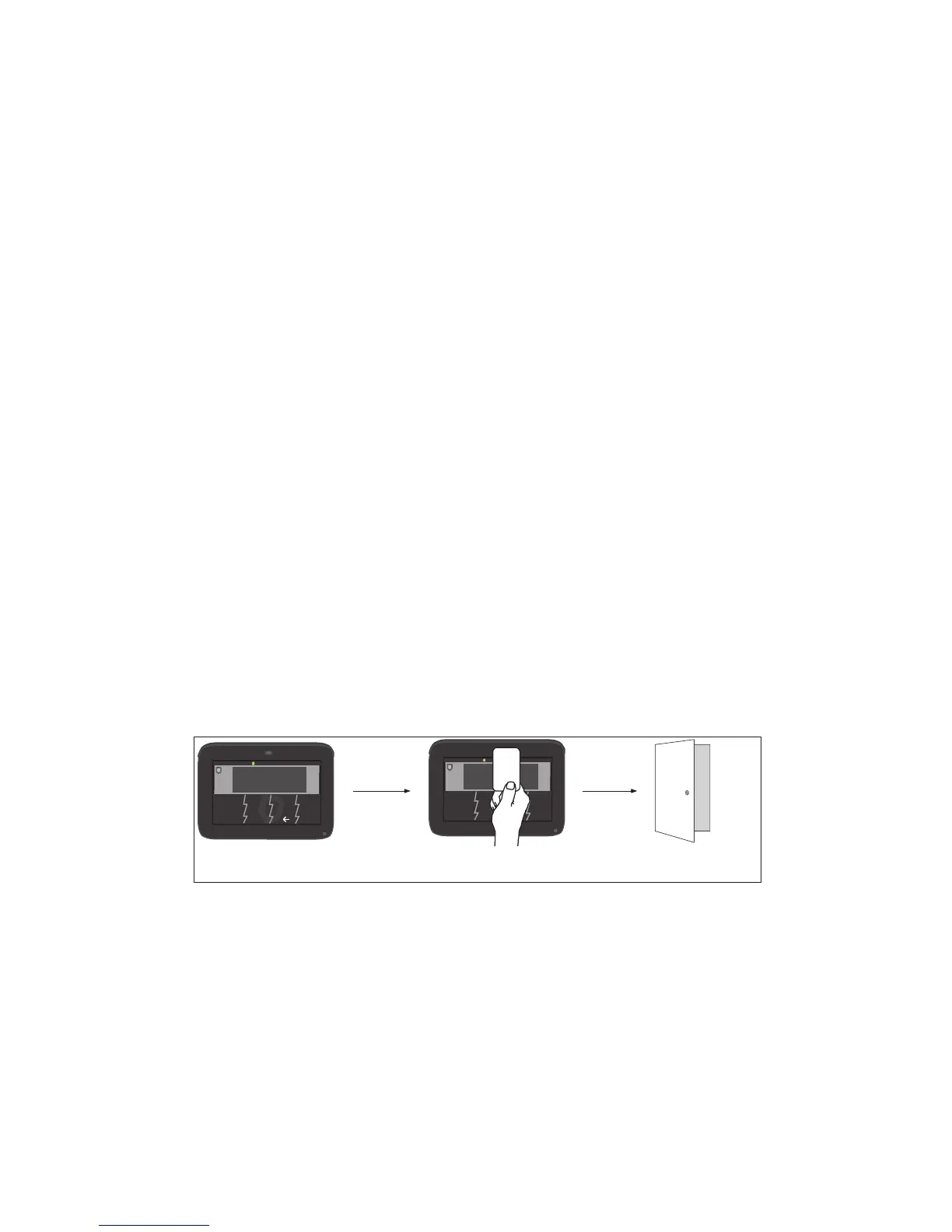

Figure 16: Area Arming and Disarming
