All/Perimeter System Arming and Disarming
Present a card to the reader, the keypad displays PERIM ALL when arming. Select
the desired option. Once validated by the system, the selected areas arm or disarm
automatically. On 7873 keypads, the door strike relay then activates.
Home/Away System Arming and Disarming
Present a card to the reader. If the system is armed, once the card is validated, all areas
are disarmed and the keypad displays ALL SYSTEM OFF. If the system is disarmed when
a card is presented, once the card is validated, HOME SLEEP AWAY displays. Manually
select HOME, SLEEP, AWAY or after a short time-out, all areas automatically arm in the
AWAY mode.
Keypad Access Control
Area and All/Perimeter Door Strike
From the Status List, present a card to the reader. Once the system validates the card, the
Door Strike relay activates. Home/Away systems only activate the 7873 Door Strike relay
when arming and disarming. See Figure 17.
ARMED
Panic
Chime
Check-in
Fire Reset
MON 5:35 AM
While the keypad displays the
Status List, present your access card.
Typically, the relay activates for 5 seconds during which
time you can open the door. Once you open the door,
you have 40 seconds to exit and close the door before
the Zone 2 Soft-Shunt expires.
ARMED
Panic
Chime
Check-in
Fire Reset
MON 5:35 AM
TODAY
WEDNESDAY
82
CURRENT
HI LO
98 77
HI
80
LO
74
TODAY
WEDNESDAY
82
CURRENT
HI LO
98 77
HI
80
LO
74

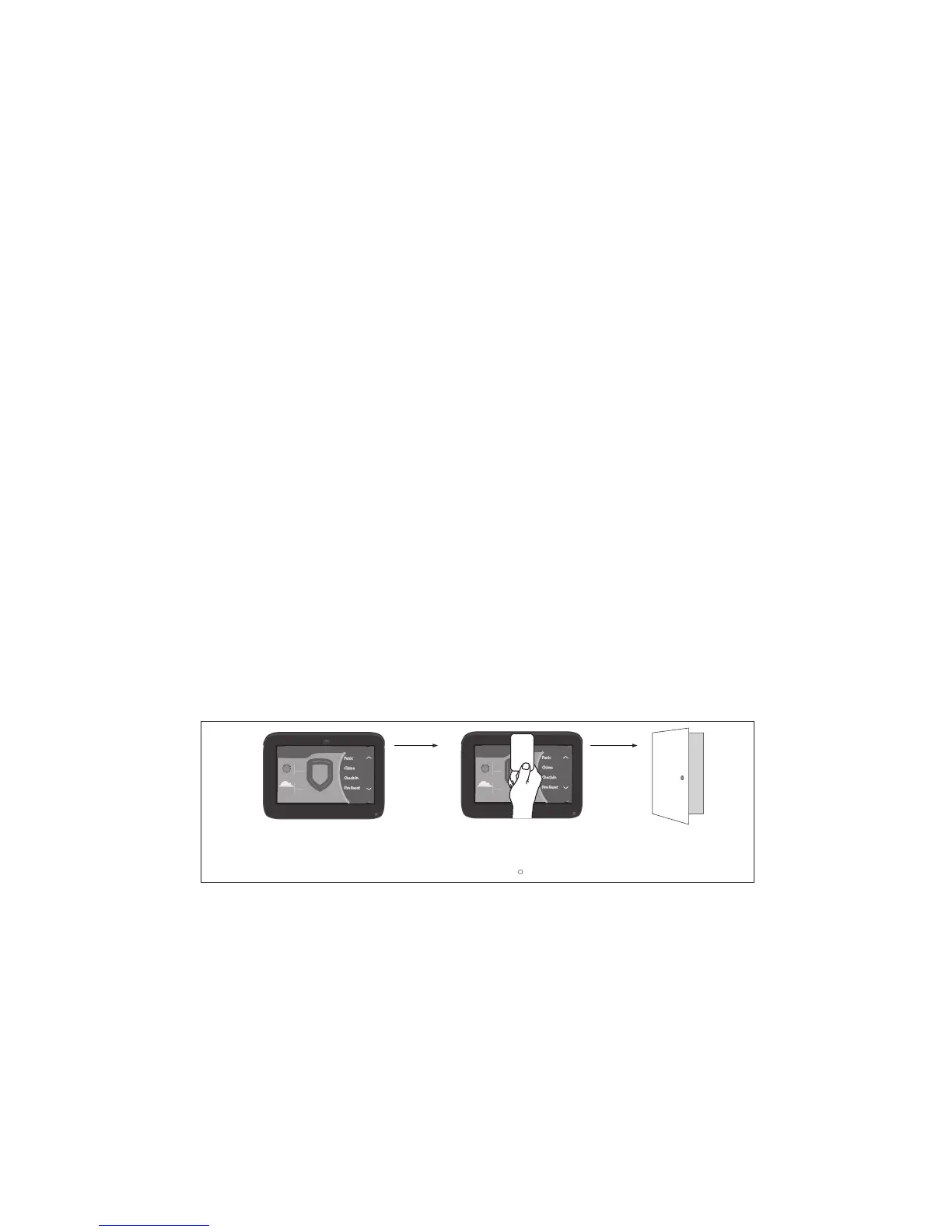

Figure 17: Present Access Card
End User Training
