After completion of the optimization process only the current setpoint appears in the lower dis-
play. The calculated parameters are stored in the power-outage-proof EE-PROM, from where
they can be retrieved at any time and modified manually.
Self-optimization is aborted during any interruption of power supply.
Contolled variable
Setpoint value
Optimization difference
Correcting setpoint value
t
Optimization at
startup
Start optimization
Controlled variable
Setpoint value
Correcting setpoint value
t
Start optimization
Example of heating optimization
Optimization to setpoint value
after control
Controlled variable
Setpoint value
t
Optimization at
startup
Start optimization
Controlled variable
t
Start optimization
Example of cooling optimization
Optimization difference
Correcting setpoint value
Sollwert
Hilfssollwert
Optimization to setpoint value
after control
Correcting setpoint value
Setpoint value

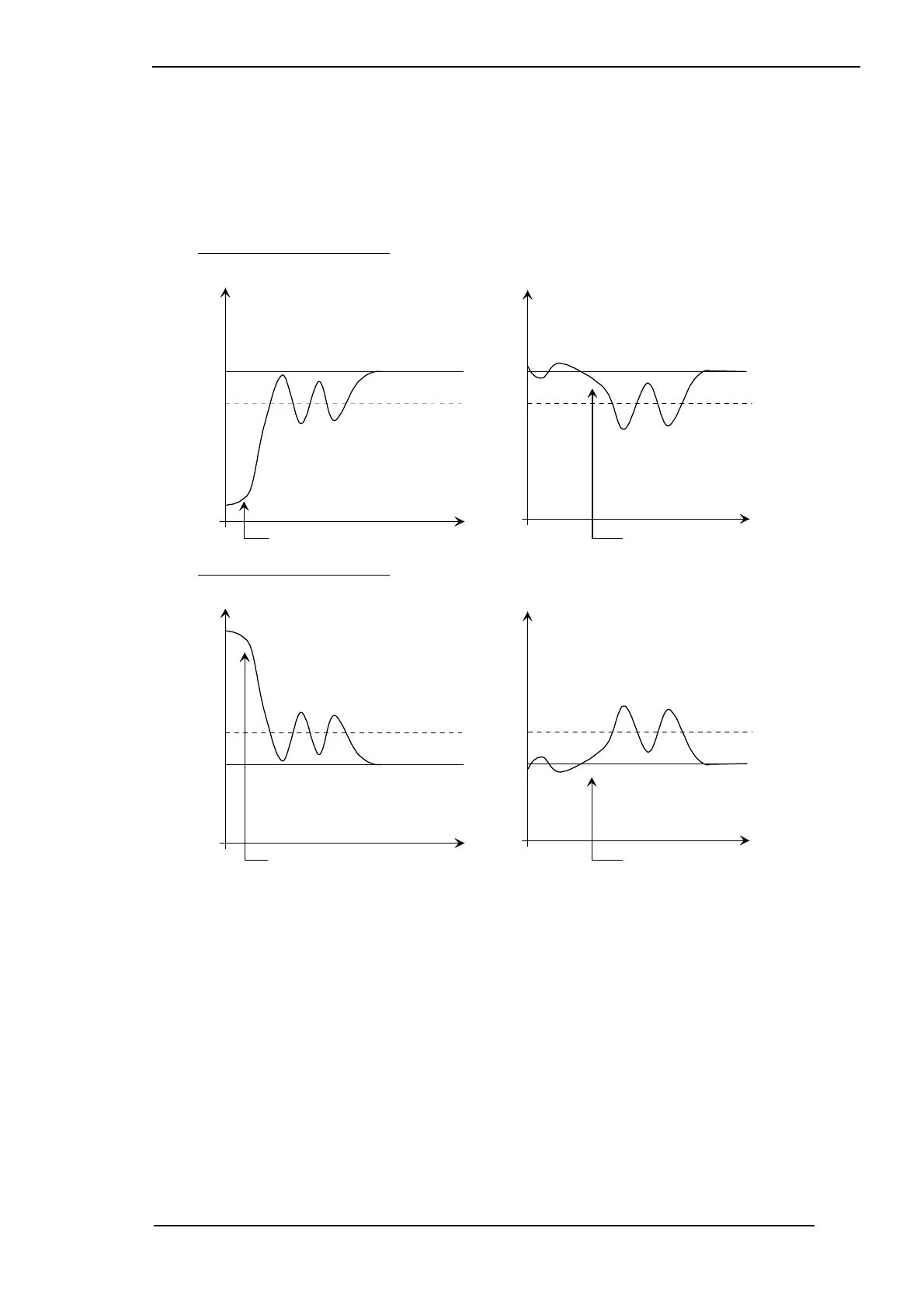

Figure 6: Self-optimization examples
7.6.1 Monitoring the optimization process:
The diagrams show possible incorrect settings with suggestions as to how to correct them.
