Dolmar MS-430.4 U - DESIGNATION OF PARTS

8
MS-430.4 CMS-4300.4 U MS-430.4 U

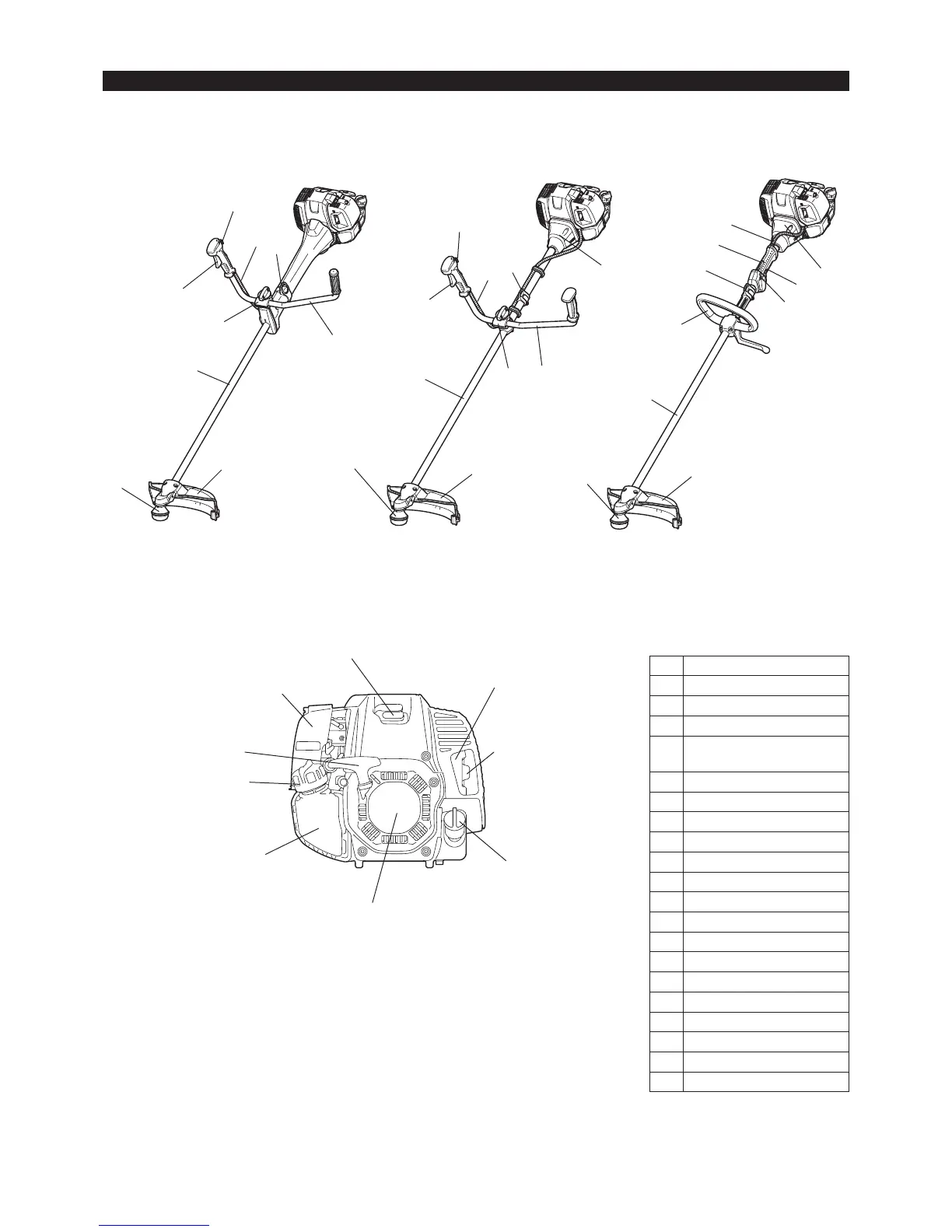

DESIGNATION OF PARTS
7
12
8
9
11
4
10
13
15
14
4
11
12
9
10
16
13
14
15
4
11
12
7
10
16
13
14
15
9
5
6
19
20
2
1
17
18
3
GB DESIGNATION OF PARTS
1 Fuel tank
2 Recoil starter
3 Air cleaner
4
I-O and throttle lock switch
(on/off)
5 Spark plug
6 Exhaust mufer
7 Clutch case
8 Rear grip
9 Hanger
10 Handle
11 Throttle lever
12 Control cable
13 Shaft
14 Protector (Cutting tool guard)
15 Gear Case/Head case
16 Handle holder
17 Fuel tank cap
18 Starter knob
19 Exhaust pipe
20 Oil cap
