Dolmar MS-430.4 U - MACHINE ASSEMBLY AND PREPARATION; Handle Mounting

9
CAUTION: Before doing any work on the equipment, always stop the engine
and pull the spark plug connector off the spark plug.
Always wear protective gloves!
CAUTION: Start the engine only after having assembled it completely.

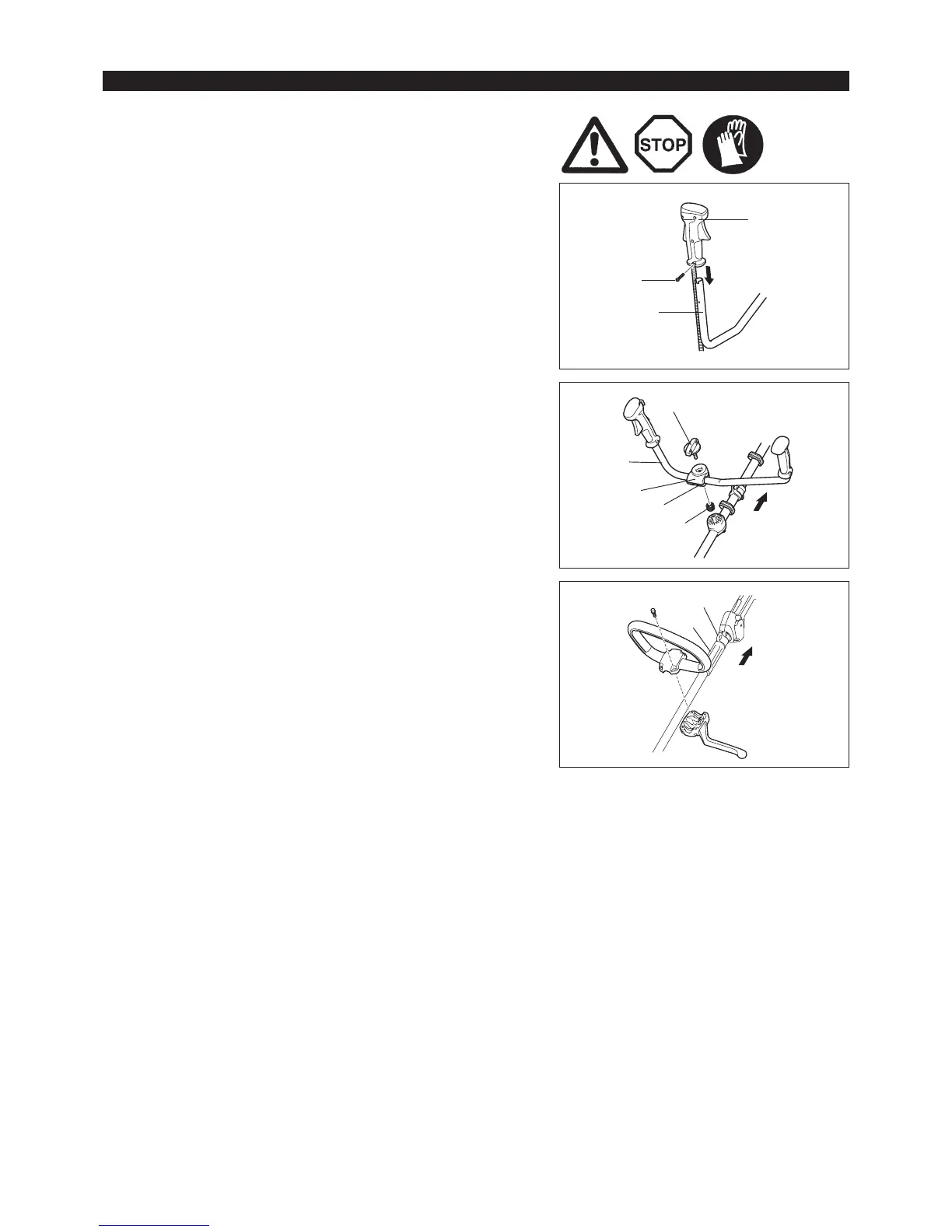

For model MS-4300.4 U, MS-430.4 U
Insert the shaft of the handle into the grip as shown.
Align the screw hole in the grip with the one in the shaft.
Tighten the screw securely.
MOUNTING OF HANDLE
Loosen knob (1). –
Place handle (4) between handle clamp (2) and handle holder (3). –
Adjust handle (4) to an angle that provides a comfortable working position –
and then secure by rmly hand-tightening knob (1).
CAUTION: Do not forget to mount spring (5).
For model MS-430.4 C
Fix the loop handle on the shaft with four screws. –
To keep a proper distance between the grips, place the spacer (1) between –
the loop handle and the hanger (2).
(1)
(2)
(4)
(3)
(5)
(1)
(2)
Engine
Engine
Grip
Screw
Handle
