Smart Touch Cabin Control Installation & Operations Manual MODES OF OPERATION
L-3380 ENGLISH 19
SYSTEM MENU
System menu lets you modify system settings related to the display. For instance, the screen background, font, icon colors,
screen saver configuration, and text editing are some of them. To modify any of the Display Settings, go to Menu and then
System Menu.

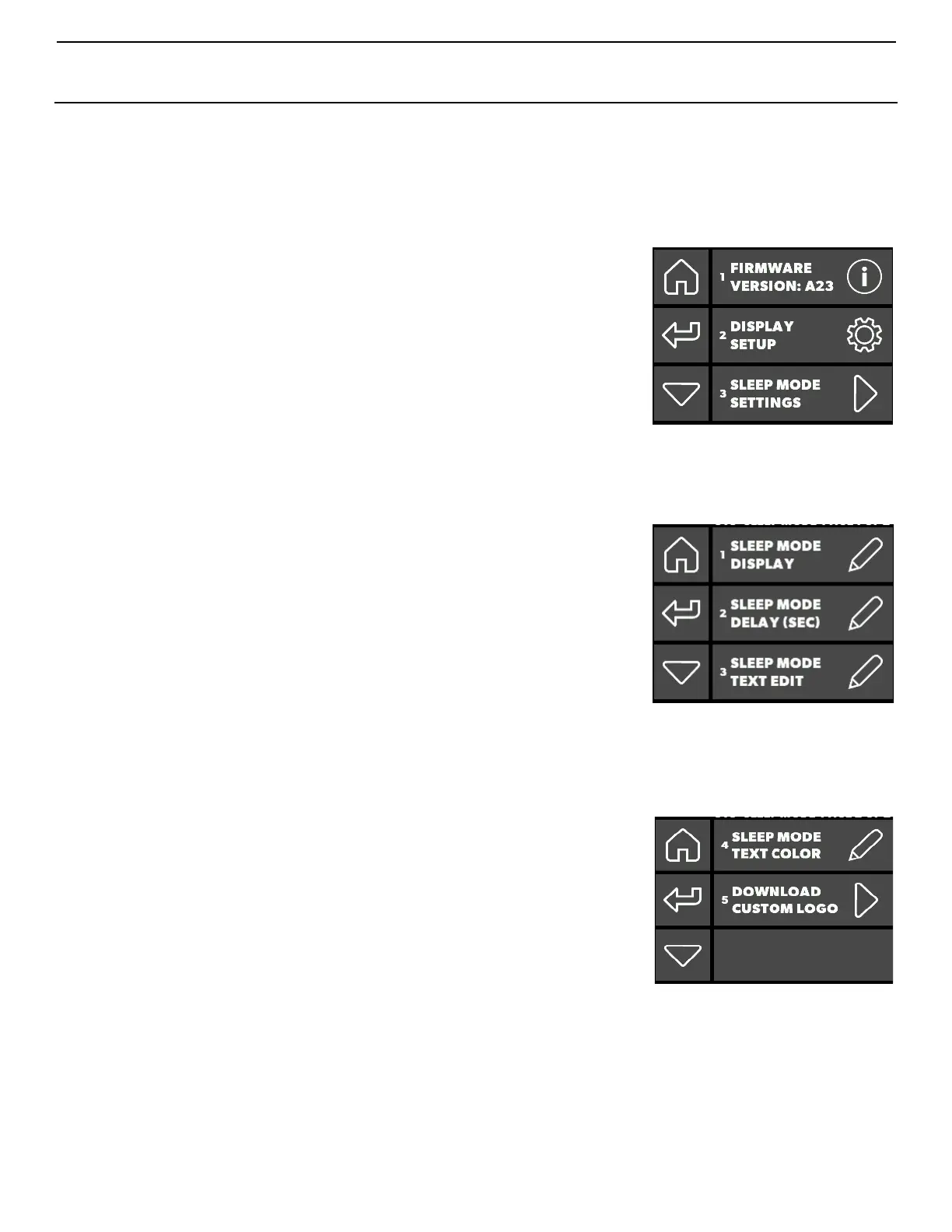

Figure 28: Smart Touch
System Menu
1. Firmware Version To access the control's software version (such as “A23”),
go to Menu, System Menu, and then Firmware Version.
2. Display Setup The available Display Settings to modify are below. Press the
Save icon after completing the desired modifications.
a. Display Brightness
b. Background Color
c. Icon Text Color
d. Icon Inside Color
e. Icon Border Color
f. Data Block & Title Colors
Figure 29: Smart Touch
Display Sleep Mode Settings Page 1 of 2
3. Sleep Mode Settings The available Sleep Mode Settings to modify are
below. Press the Save icon after completing the desired modification.
a. Sleep Mode Display Lets you select from different options to show after
the Sleep Mode Delay has ended (Standard Logo, Custom Logo,
Custom Text, Blank Screen Backlight Off, Blank Screen Backlight On)
b. Sleep Mode Delay Lets you select either Off, or 0 to 600 seconds of
delay before showing the Sleep Mode Display configured. If Off is
selected, the display will not go into Sleep Mode.
c. Sleep Mode Text Edit Allows editing of the display text when the screen
is in Sleep Mode. Text is edited using arrow icons for each character.
Character choices are as follows: “ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789&'*@:,°=!-()%.+#?/”. The
total number of characters that will fit on the screen is a function of the font size, with an absolute maximum of 25.
Figure 30: Smart Touch Sleep
Mode Settings Page 2 of 2
To Next Page
