Domino D320i Red User Manual

INSTALLATION INSTRUCTIONS
2-14 L025317 Issue 5 July 2014
Note: To prevent incorrect connections, different male and female
connectors have been installed and clearly marked (X...). When
connecting the cables, ensure that plugs are correctly aligned to
prevent damage to the pins.

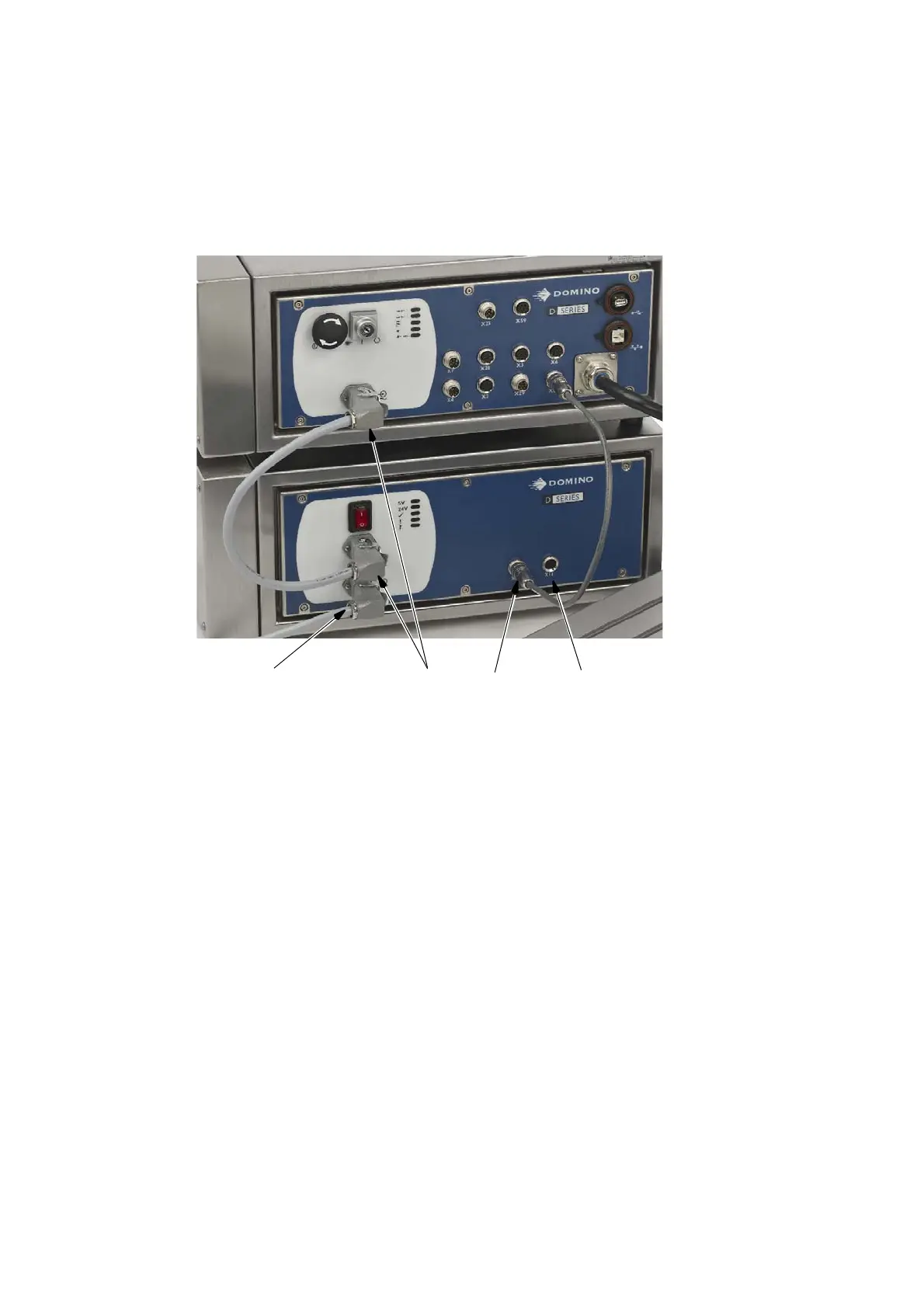

Connections for D620i
The lower controller cabinets contains the laser power supplies for the 60
W laser.
X12 Safety Extension 1 - do not disconnect the
factory fitted connector to X58
X11 Safety Extension 2 - do not connect anything
here
Mains Power
Mains Power to
controller
X12
X11

Domino D320i Red Specifications

General

Print Technology	Thermal Transfer
Operating Temperature Range	5°C to 40°C
Ribbon Width	4.33" (110mm)
Ribbon Length	300 m (984 ft)
Connectivity	USB, Ethernet, Serial
