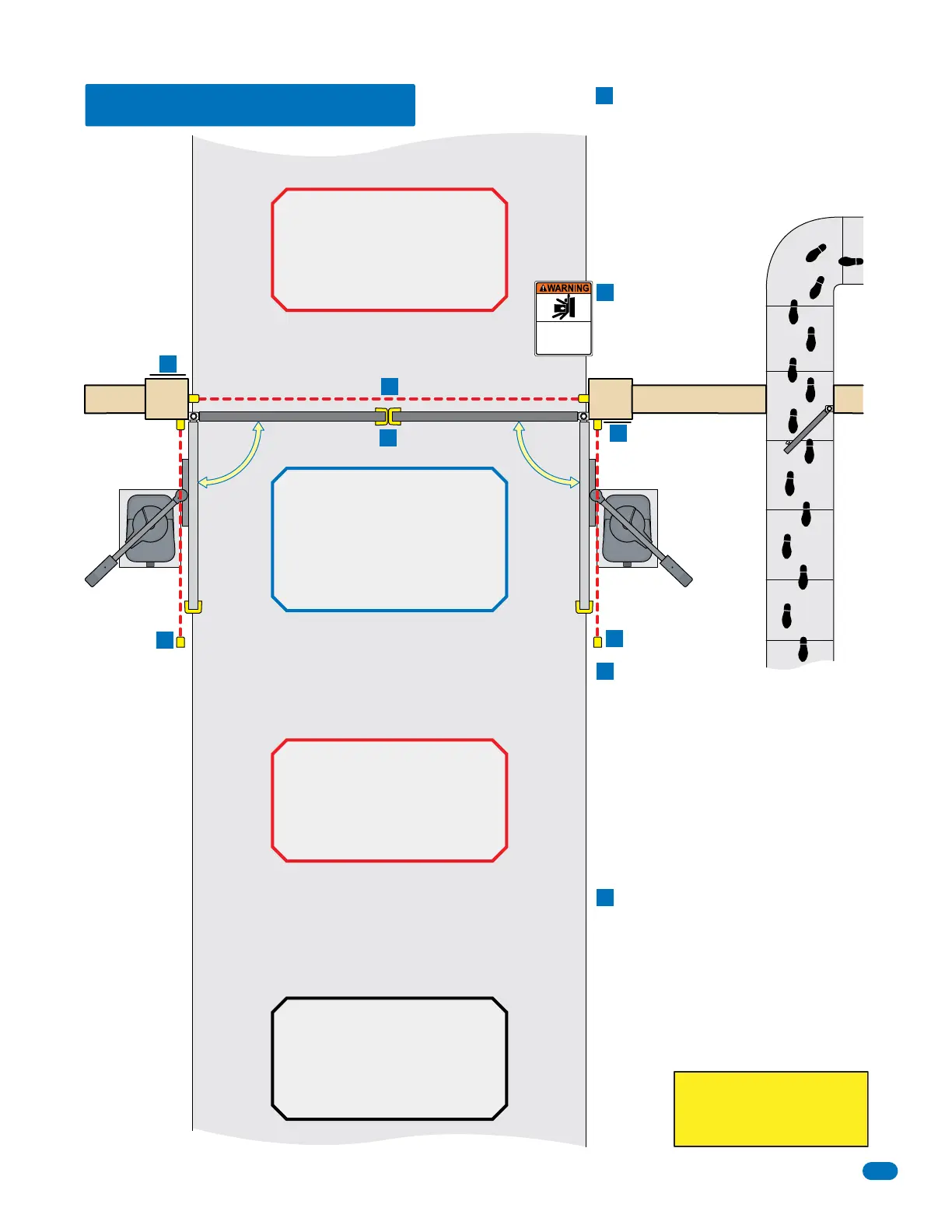

Swing Gate Protection
Non-contact Sensor
C
F
E
E
D
D
C
Separate
Pedestrian
Walkway
Located so
pedestrians
cannot come in
contact with the
vehicular gate.
Warning Signs
D
Permanently mounted
and easily visible from
either side of the gate.
E
Minimizes the potential
of the gate closing on
vehicular or other traffic
that loops cannot sense.
Monitored device helps
protect against
entrapment when
needed.
Non-contact
Sensor
Minimizes the potential
of the gate striking
vehicular or other traffic
that loops cannot sense.
Monitored device helps
protect against
entrapment when
needed.
Minimizes the potential
of the gate striking
vehicular or other traffic
that loops cannot sense.
Monitored device helps
protect against
entrapment when
needed.
F
Contact Sensor
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
Reverse Loop
Shadow Loop
Automatic Exit Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
(Optional) will provide an open
command to the gate operator(s)
when a vehicle is exiting the
property.
Provides a hold open command to
the operator(s) only if the gate(s)
are at the full open position.
External entrapment
protection is REQUIRED
for operator to function.
