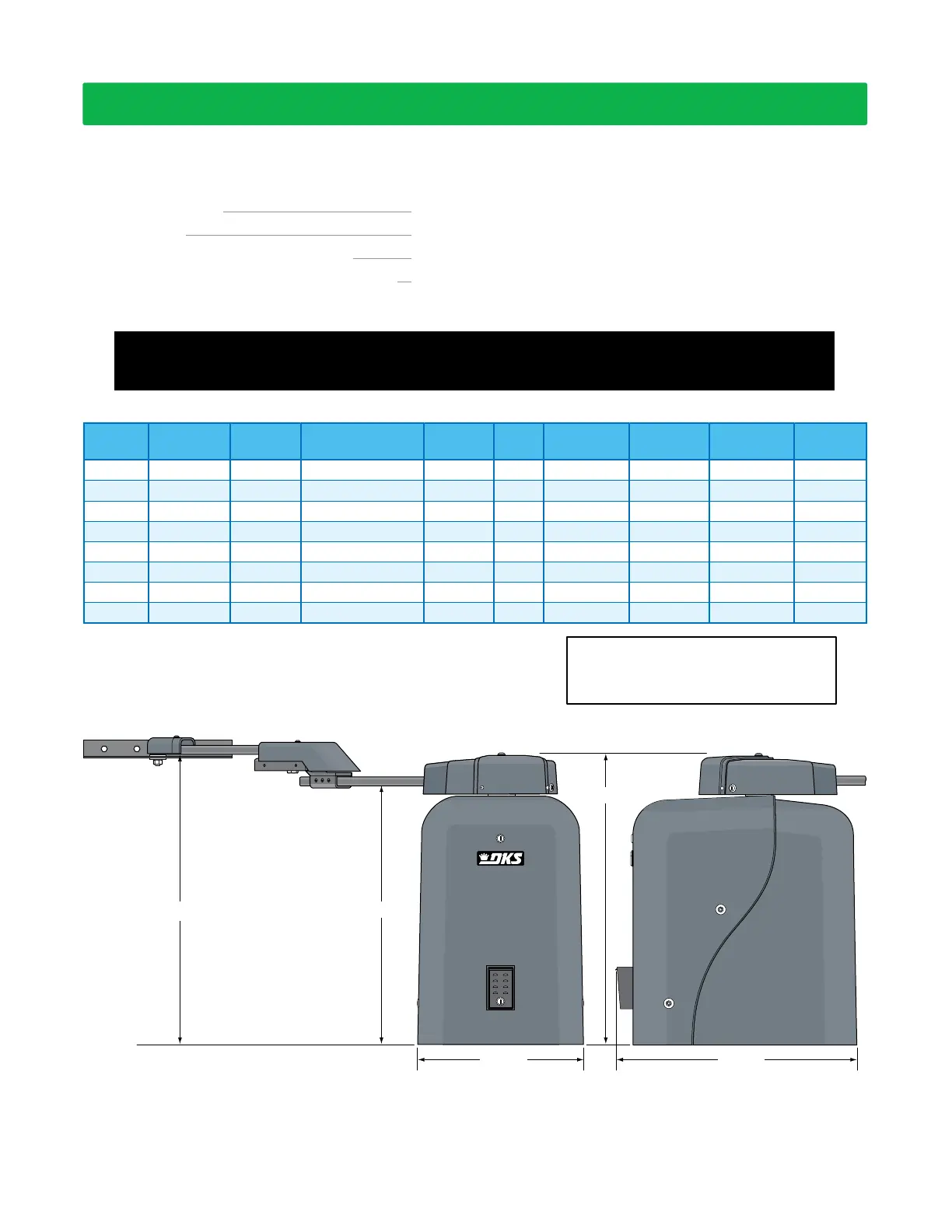

Class of Operation Model 6500 - UL325 Class I, II, III, IV
Type of Gate Vehicular Swing Gates Only
Inherent Entrapment Protection Device Inherent Reverse Sensor System (Type A)
External Entrapment Protection Device Inputs Connection inputs for Non-contact Sensor - Photo Sensor (Type B1)
(Monitored Inputs) Connection input for Contact Sensor - Reversing Edge (Type B2)
SPECIFICATIONS
Model #
Max Gate
Weight
Max Gate
Length
Horsepower - Volts
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1 HP - 115 VAC
1 HP - 115 VAC
1 HP - 115 VAC
1 HP - 115 VAC
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
6500-380
6500-381
6500-382
6500-383
6500-384
6500-385
6500-386
6500-387
600 Lbs.
600 Lbs.
600 Lbs.
600 Lbs.
800 Lbs.
800 Lbs.
800 Lbs.
800 Lbs.
Type
Operator
Primary
Secondary
Primary
Secondary
Primary
Secondary
Primary
Secondary
18 Ft.
18 Ft.
18 Ft.
18 Ft.
22 Ft.
22 Ft.
22 Ft.
22 Ft.
Cycles Per
Hour
60
60
60
60
60
60
60
60
Speed
90°
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
AmpPhase
5.4
5.4
5.4
5.4
9.7
9.7
9.7
9.7
Convenience
Open
No
No
Yes
Yes
No
No
Yes
Yes
Use this manual for the Model 6500 operators with circuit board 4405-018 Rev A or higher ONLY.
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
Note: 208/230/460/575 VAC input voltage can be connected to the
operator by installing an “Optional” High Voltage Kit (P/N 2600-266).
28
3
/8
”
18
3
/8
” 23
1
/4
”
31
5
/8
”
31”
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices in EACH
entrapment area.
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
