EXTERNAL VIEWS
7/71, 12/56
DIESEL ENGINE Engine External View − Model 4IRD5N

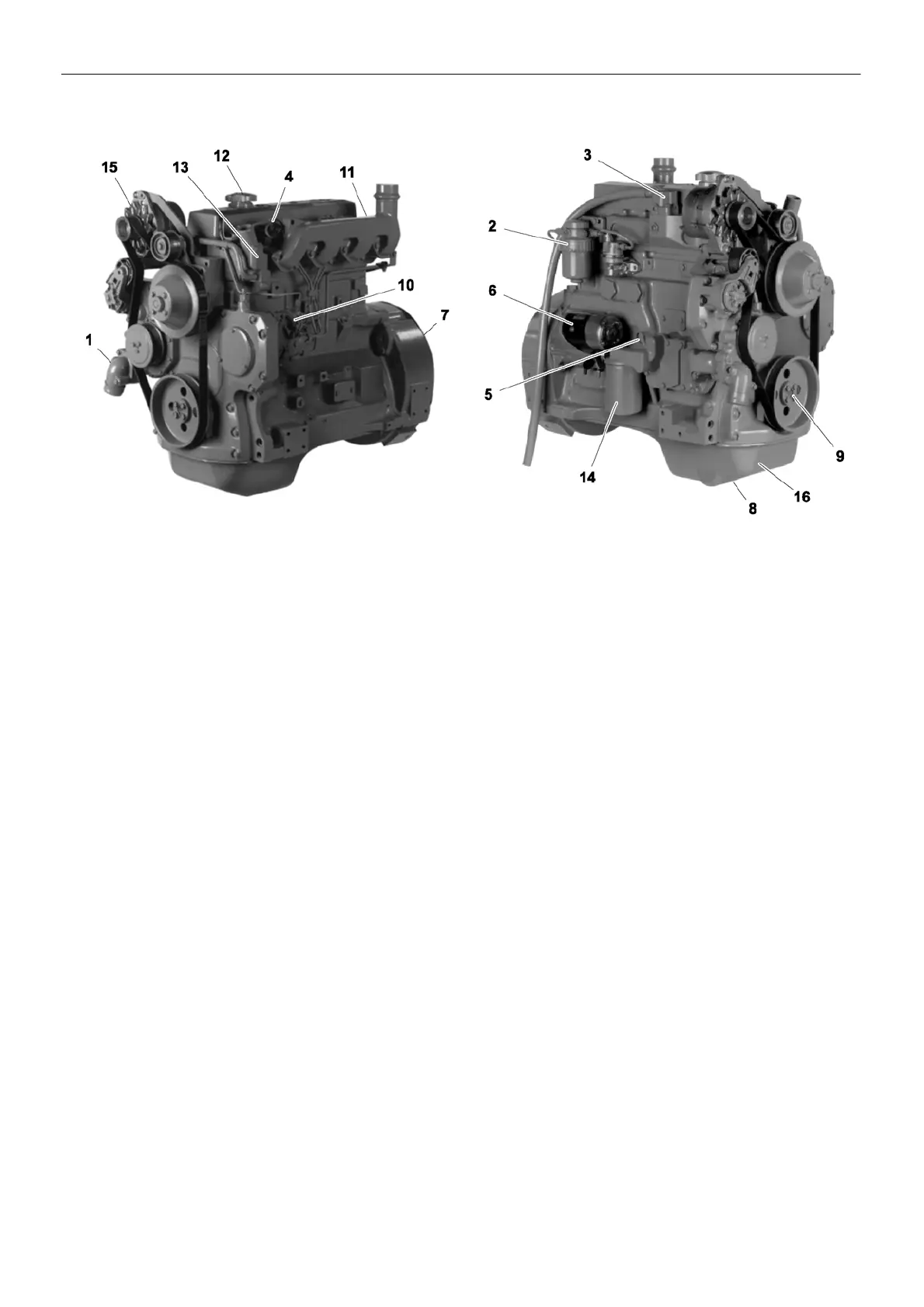

Fig. 1 (Left−hand Side) Fig. 2 (Right−hand Side)
(1) Water pump
(2) Secondary fuel filter
(3) Inlet manifold
(4) Injection nozzle
(5) Oil dipstick
(6) Starter motor
(7) Flywheel
(8) Oil drain plug
(9) Crank shaft pulley
(10) Injection pump
(11) Exhaust manifold
(12) Oil filler cap
(13) Thermostat housing
(14) Oil filter
(15) Alternator
(16) Oil pan
