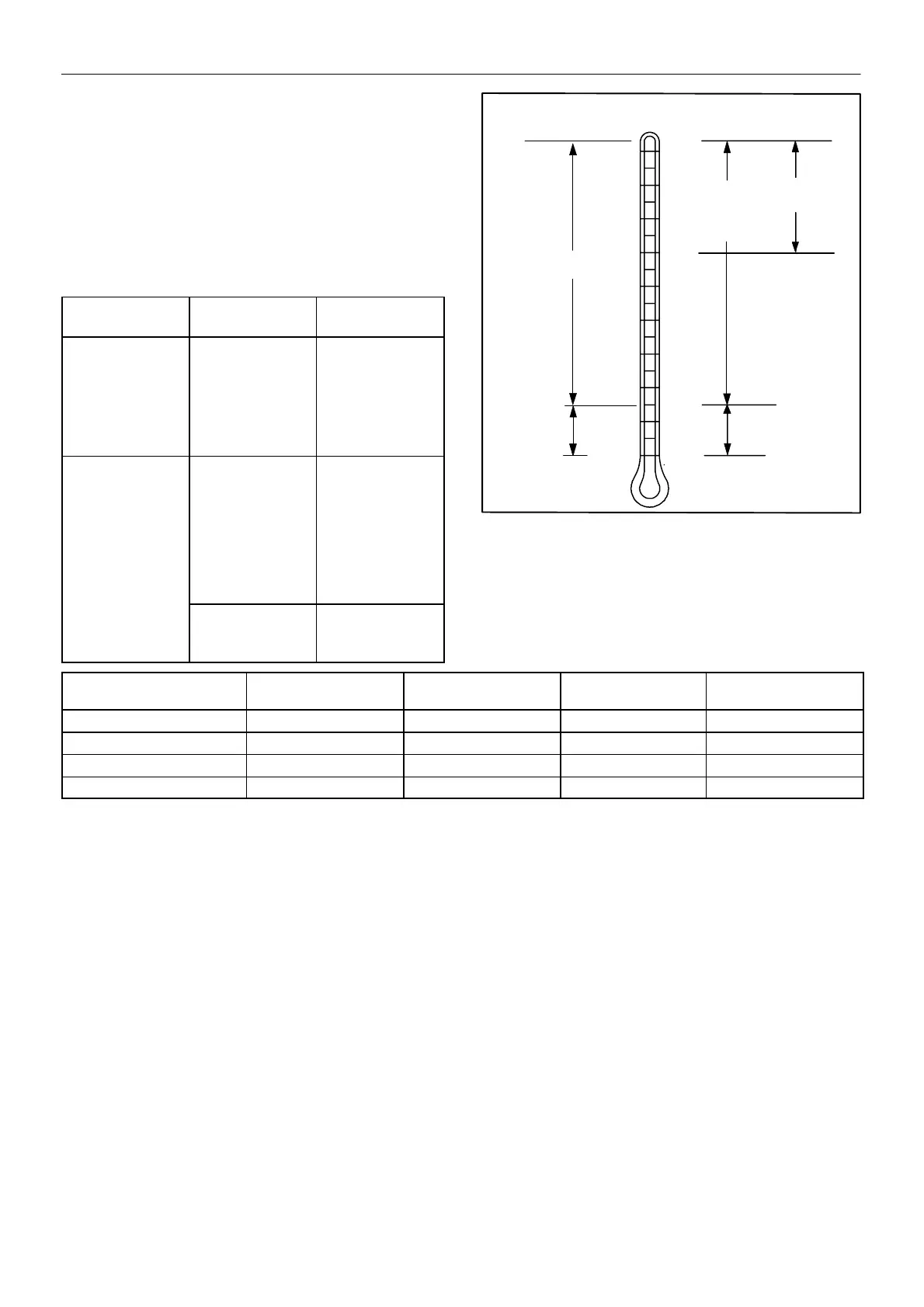

COMPRESSOR LUBRICATION
Portable Compressor Fluid Chart
Refer to these charts for correct compressor fluid required. Note
that the selection of fluid is dependent on the design operating
pressure of the machine and the ambient temperature expected to
be encountered before the next oil change.
Note: Fluids listed as “preferred” are required for extended
warranty.
Compressor oil carryover (oil consumption) may be greater
with the use of alternative fluids.
Design Operating
Pressure
Ambient
Temperature
Specification
100 psi to 300 psi
−10F to 125F
(−23C to 52C)
Preferred:
PRO−TEC
Alternate:
ISO Viscosity Grade
46 with rust and
oxidation inhibitors,
designed for air
compressor service
350 psi
−10F to 125F
(−23C to 52C)
Preferred:
XHP 605
Alternate:
XHP 405
ISO Viscosity Grade
68 Group 3 or 5 with
rust and oxidation
inhibitors designed
for air compressor
service.
65F to 125F
(18C to 52C)
Preferred:
XHP 605
XHP1001
XHP605
PRO−TEC
100 − 300 PSI
RATED OPERATING PRESSURE
350 PSI
XHP 1001
10F
125F
50C
40C
30C
20C
10C
0C
−10C
−20C
−30C
−40C
104F
86F
65F
50F
32F
14F
−10F
−22F
−40F
consult factory
XHP405
consult
factory
Preferred Doosan Fluids − Use of these fluids with original Doosan
branded filters can extend airend warranty. Refer to operator’s manual
warranty section for details or contact your Portable Power
representative.
Doosan Preferred Fluids 1 gal.
(3.8 Litre)
5 gal.
(19.0 Litre)
55 gal.
(208.2Litre)
220 gal.
(836 litre)
PRO−TEC − 89292973 89292981 22082598
XHP 605 − 22252076 22252050 22252068
XHP 1001 − 35612738 35300516 −
XHP 405 − 22252126 22252100 22252118
