A Series Diesel Engine Air System 110
7mm

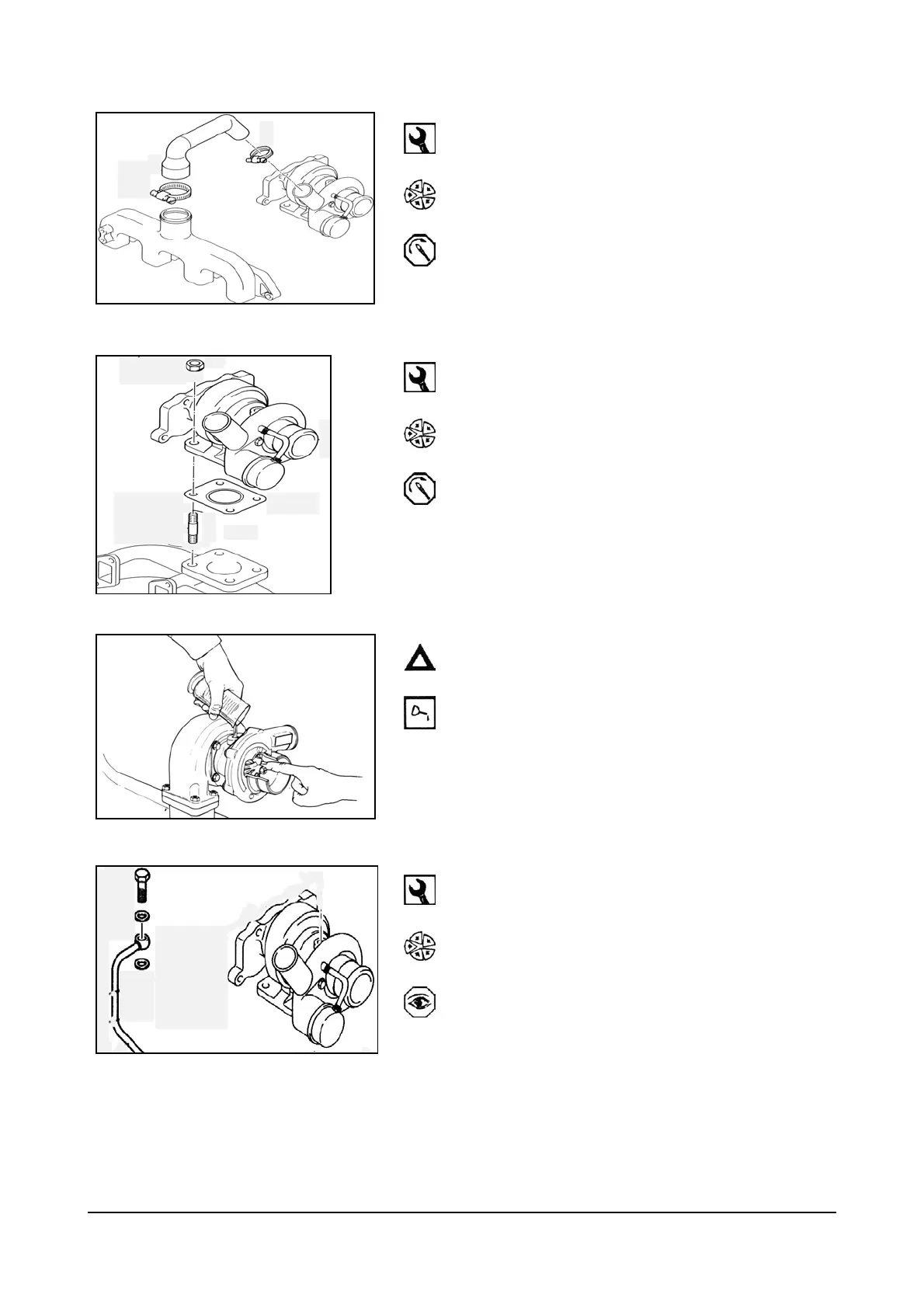

Install the turbocharger and connect the air crossover
tube.
Torque Value : 39Nm [29 ft-lbs]
12mm
Use a new gasket and connect drain line.
Torque Value : 25.5Nm [19 ft-lbs]
Caution : New turbochargers must be prelubricated
before start up.
Pour 30 to 40cc of oil into supply fitting.
Note : Rotate the turbine wheel to allow oil to enter
the turbocharger.
14mm
Install the oil supply line.
After installing the air intake and exhaust piping,
operate the engine to check for leaks.
