Maintenance Section
-225-

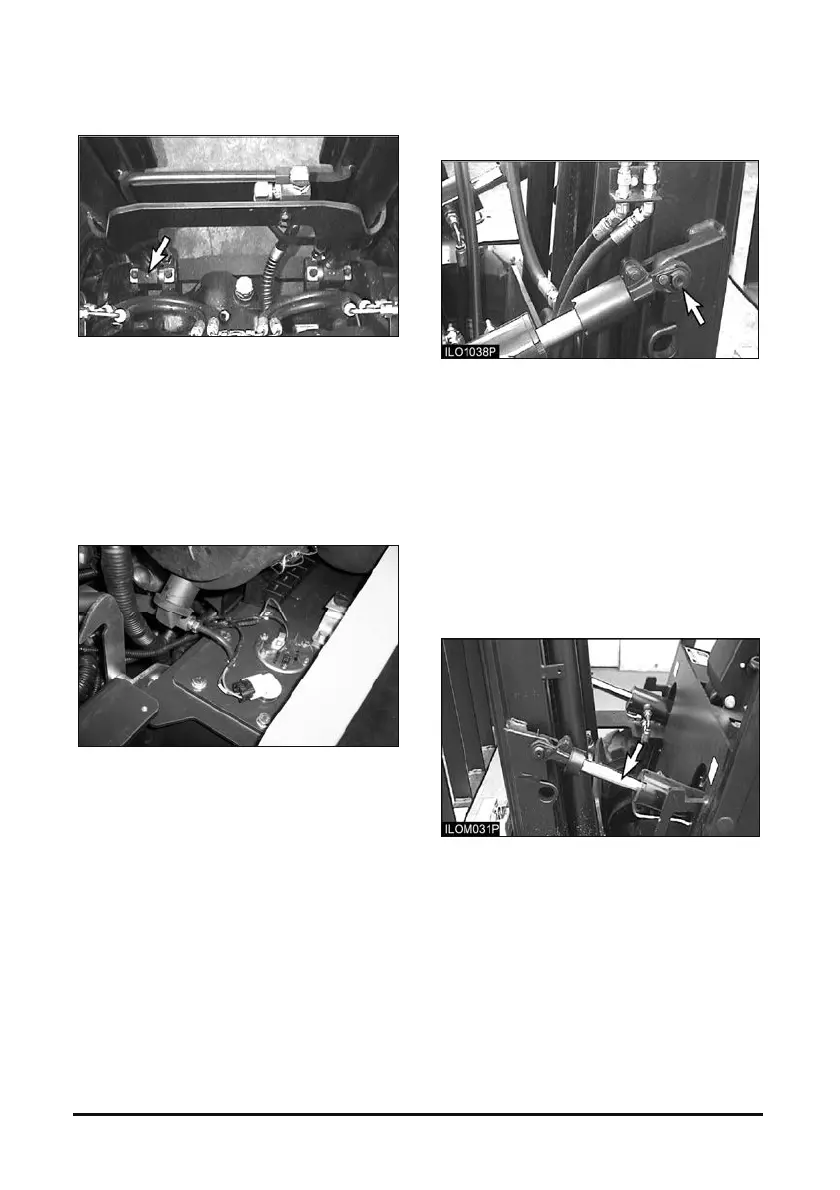

Mast Hinge Pin – Lubricate
Typical Example
1. Lower the forks and tilt the mast forward.
2. Lubricate the two fittings for the mast hinge pins,
one on each side of the mast.
Tilt Cylinders - Check, Adjust,
Lubricate
Chassis Pivot Eyebolts - Lubricate
Typical Example
1. Remove floor plates. (GC-series only)
2. Lubricate two fittings for the pivot eyebolts, one
on each tilt cylinder.
3. Check the pivot eye pins for loose retainer bolts
and wear.
Mast Pivot Eyes - Lubricate
Typical Example
1. Lubricate two fittings for the mast pivot eyes,
one on each side of the pin.
2. Check the pivot eye pins for loose retainer bolts
and wear.
Cylinder Rod Extension - Adjust
NOTE: The following description is for forward tilt.
For cylinder rod back tilt, the collar should
be stationary by the tilt eye. If it is not, the
O-ring inside the collar may need to be
replaced. To adjust back tilt, spacers must
be added or removed.
Typical Example
1. Check to make sure the tilt cylinders extend
and retract evenly.
2. If one cylinder continues to move after the other
cylinder has stopped in full forward or backward
tilt, an adjustment must be made to one
cylinder.
