Operation Section
-83-
Lift Truck Controls

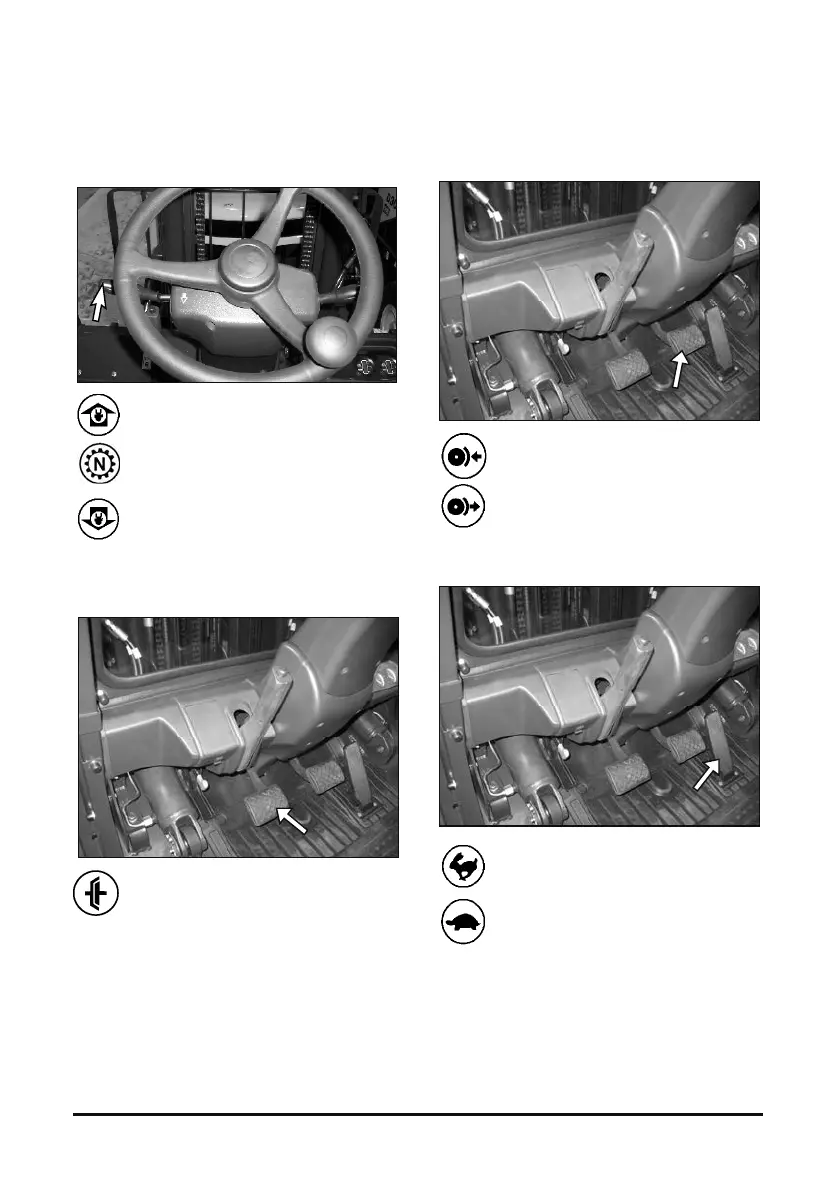

Direction Control Lever
1. Forward - Push the lever forward for
FORWARD direction travel.
2. Neutral - Move the lever to center
position for NEUTRAL.
3. Reverse - Pull the lever back for
REVERSE direction travel.
Transmission Inching Control
Pedal
Inching Control Pedal - Pushing down on
the inching pedal, modulates the hydraulic
pressure to the clutch packs, permitting
disc slippage.
Further pushing on the pedal completely relieves
clutch pack pressure and applies the service
brakes to stop and hold the lift truck.
NOTE: The purpose of the inching control pedal is
to provide precise inching control at slow
travel speed, with high engine rpm. This is
used for fast hydraulic lift during load
approach, pickup or positioning.
Service Brake Pedal
Push DOWN on the brake pedal to slow
or stop the lift truck.
RELEASE the brake pedal to allow the lift
truck to move.
Accelerator Pedal
Push DOWN on the pedal to increase
engine rpm (speed).
RELEASE the pedal to decrease engine
rpm (speed).
