D439E Service Manual 5. Service Tool

232

Language Selection

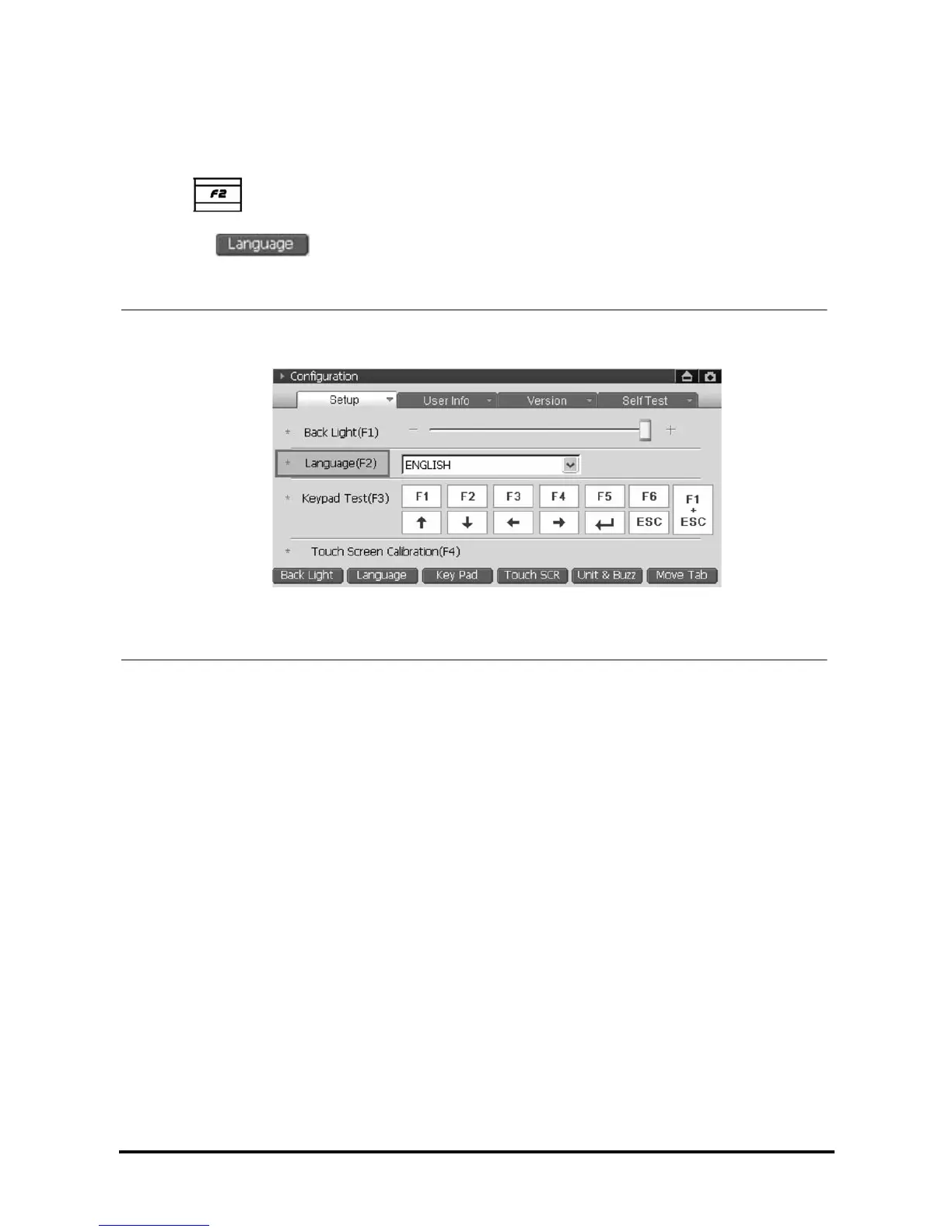

1. How to select the “Language”.

• Select

button .

• Select the

at the bottom of screen.

• Select the “Language (F2)” on screen.
