D439E Service Manual 5. Service Tool
277
• Check Data Analysis and the Actuation Test at one time
1. On Data Analysis screen, select
or button, and then the Function Menu will
be shown as in <Figure 9>.
2. On the function menu, select “Actuation Test”, and screen will be changed to Dual mode as shown in
<Figure 11>.
• Using the stylus pen, select it on the touch screen directly.
• Moving the cursor using
, and press button.

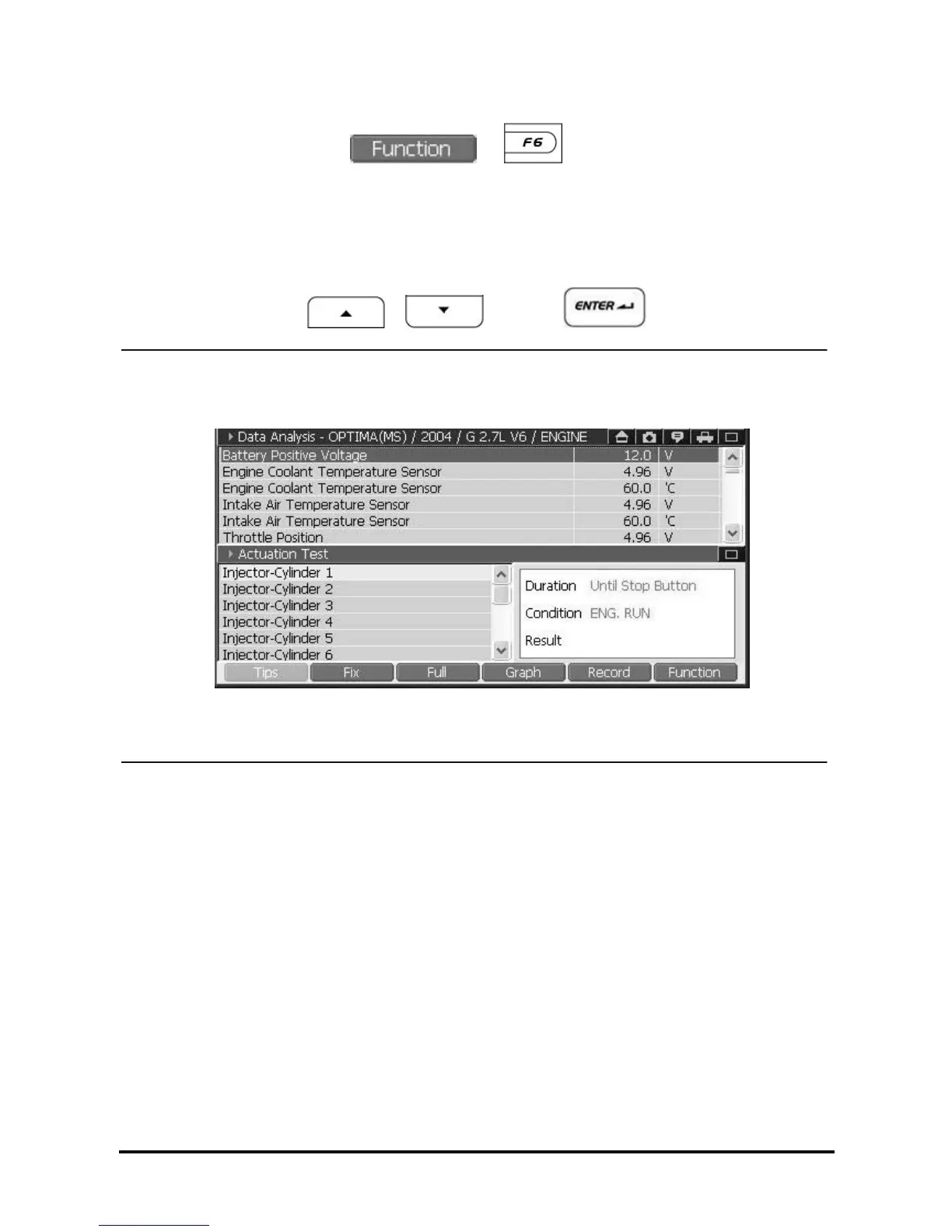

<Figure 11: Data Analysis & Actuation Test on Dual Diagnosis Mode>
