Operation Section
57
weight, press ENTER for 1 second to save the
setting (SET and RLOAD blink for 3 seconds).
3) Error display
- In the initial screen (engine RPM &
transmission information) if there is any error,
ECU ERR or TCU ERR appears.
- If both transmission (TCU) error and engine
error (ECU FAULT) occur, TCU DIAG and
ECU DIAG appear in turns.
- When switched to the engine error mode after
an engine error (ECU FAULT), the sequential
number and the code of the error are
displayed sequentially. The code is ECU
DIAG.
- When switched to the transmission error mode
after a transmission error (TCU FAULT), the
sequential number and the code of the error
are displayed sequentially. The code is TCU
DIAG.
- CAN ERR appears in case of a
communication error.
3. Caution
The product is not an objective of measurement
related act.
Therefore, the product is not a measuring device
which requires type approval or verification, the
measurement made with this product cannot be
used for legal measurement purposes such as
selling or evidence directly.
However, the accuracy should be regularly
checked and calibrated as necessary by initial
adjustment.
4. Detail Description
b. Transmission

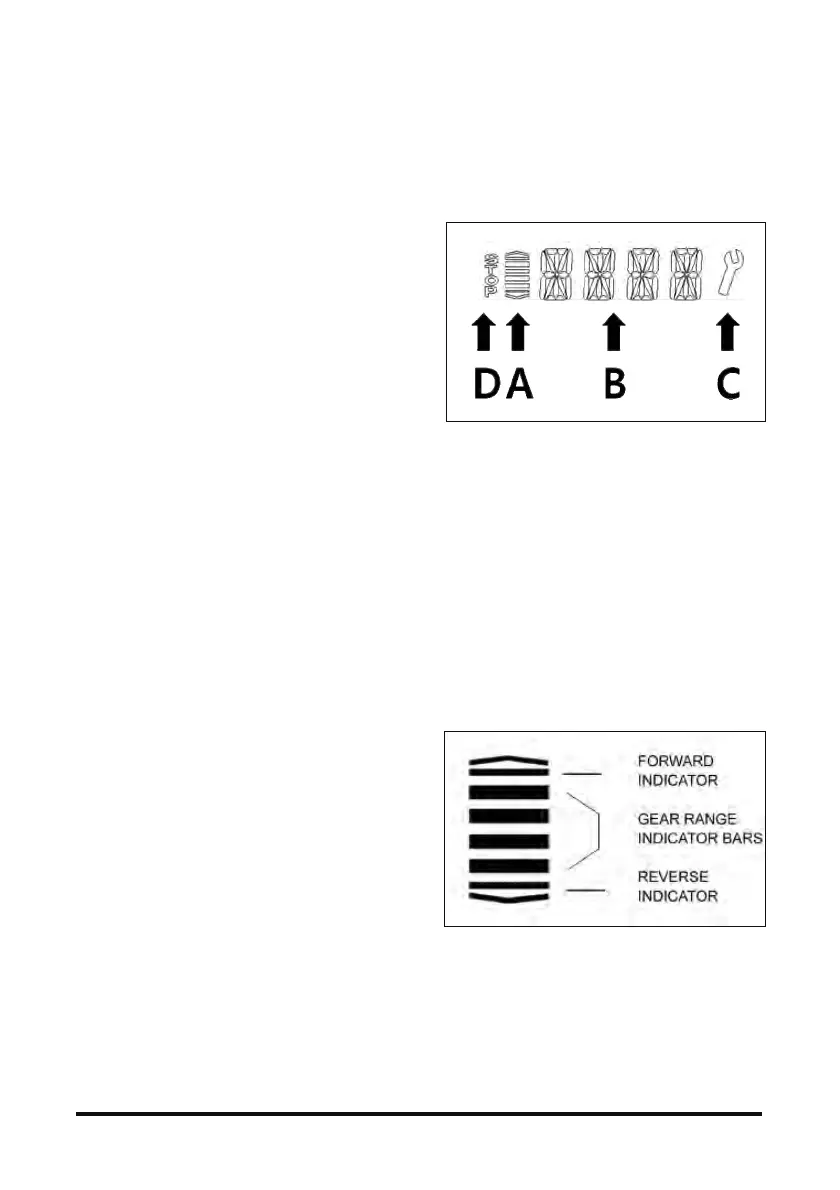

A transmission display is to the right of the steering
wheel on the dash. The LCD indicates gears,
direction of travel and error codes.
(A) Indicates travel direction and gear selection.
See the figure below for more detailed
information
(B) Indicates normal operation and error codes.
For a list of error codes, see “Transmission
Error Codes” in “When Required”
maintenance section.
NOTE: Most codes are only two digits.
(C) Indicates that error codes have occurred and
are stored.
(D) Indicates that operation must be stopped
immediately to prevent damage to
transmission and hazardous operation
condition.
The gear range indicator bars will indicate which
gear is selected by displaying the corresponding
number of bars.
The forward and reverse indicator bars will be
“OFF” when the transmission is in “MANUAL
MODE.” When transmission is in “AUTOMATIC
MODE,” all the gear range indicator bars and both
travel direction indicators will be “ON”.
