Generator

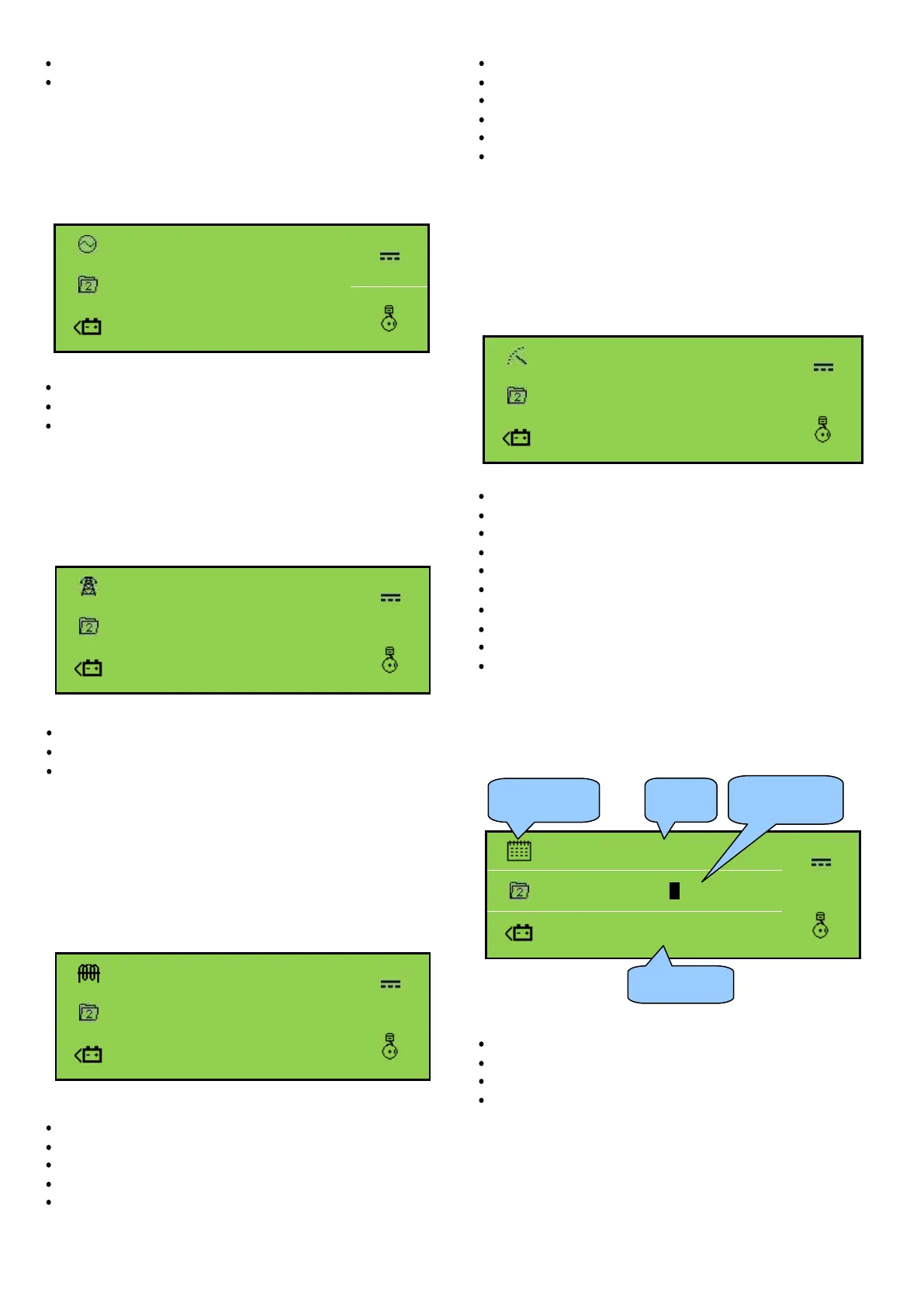

These pages contain electrical values of the generator,
measured or derived from the module’s voltage inputs.
L1N
230
V
L2N
230
V
L3N
230
V
Generator Voltage (ph-N)
Generator Voltage (ph-ph)
Generator Frequency
Generator Voltage (ph-N / ph-ph)
Mains Voltage (ph-N / ph-ph) (DSE6020 MKII only)
Mains (DSE6020 MKII ONLY)
These pages contain electrical values of the mains, meas-
ured or derived from the module’s voltage inputs.
L1N
230
V
L2N
230
V
L3N
230
V
Mains Voltage (ph-N)
Mains Voltage (ph-ph)
Mains Frequency
Load
These pages contain electrical values of the load, meas-
ured or derived from the module’s voltage and current
inputs. The power values displayed depend on which
supply is on load.
L1
20
kW
L2
20
kW
L3
20
kW
Generator Current (A)
Mains Current (A) (DSE6020 MKII only)
Load ph-N (kW)
Total Load (kW)
Load ph-N (kVA)
Total Load (kVA)
Load ph-N (kVAr)
Total Load (kVAr)
Power Factor ph-N
Power Factor Average
Accumulated Load (kWh, kVAh, kVArh)
Engine
These pages contain instrumentation gathered about the
engine measured or derived from the module’s inputs,
some of which may be obtained from the engine ECU.
1500
RPM
Engine Speed
Engine Run Time
Engine Battery Volts
Engine Coolant Temperature
Engine Oil Pressure
Engine Fuel Level
Flexible Sensor
Engine Maintenance Due – Oil
Engine Maintenance Due – Air
Engine Maintenance Due – Fuel
Info
These pages contain information about the controller.
13:30:00
M T W T F S S 3 Wk
2:45:00
Icon to indicate the
scheduler is currently
displayed
Start time of
scheduled run
Day and week of
scheduled run
Duration of
scheduled run
Module’s date and time
Scheduler settings
Product description and USB identification number
Application and Engine Version
