Stopping the engine:
OPERATION
Note: The following descriptions detail the sequenc-
es followed by a module containing the stand-
ard ‘factory configuration’. Always refer to
your configuration source for the exact
sequences and timers observed by any
particular module in the field.

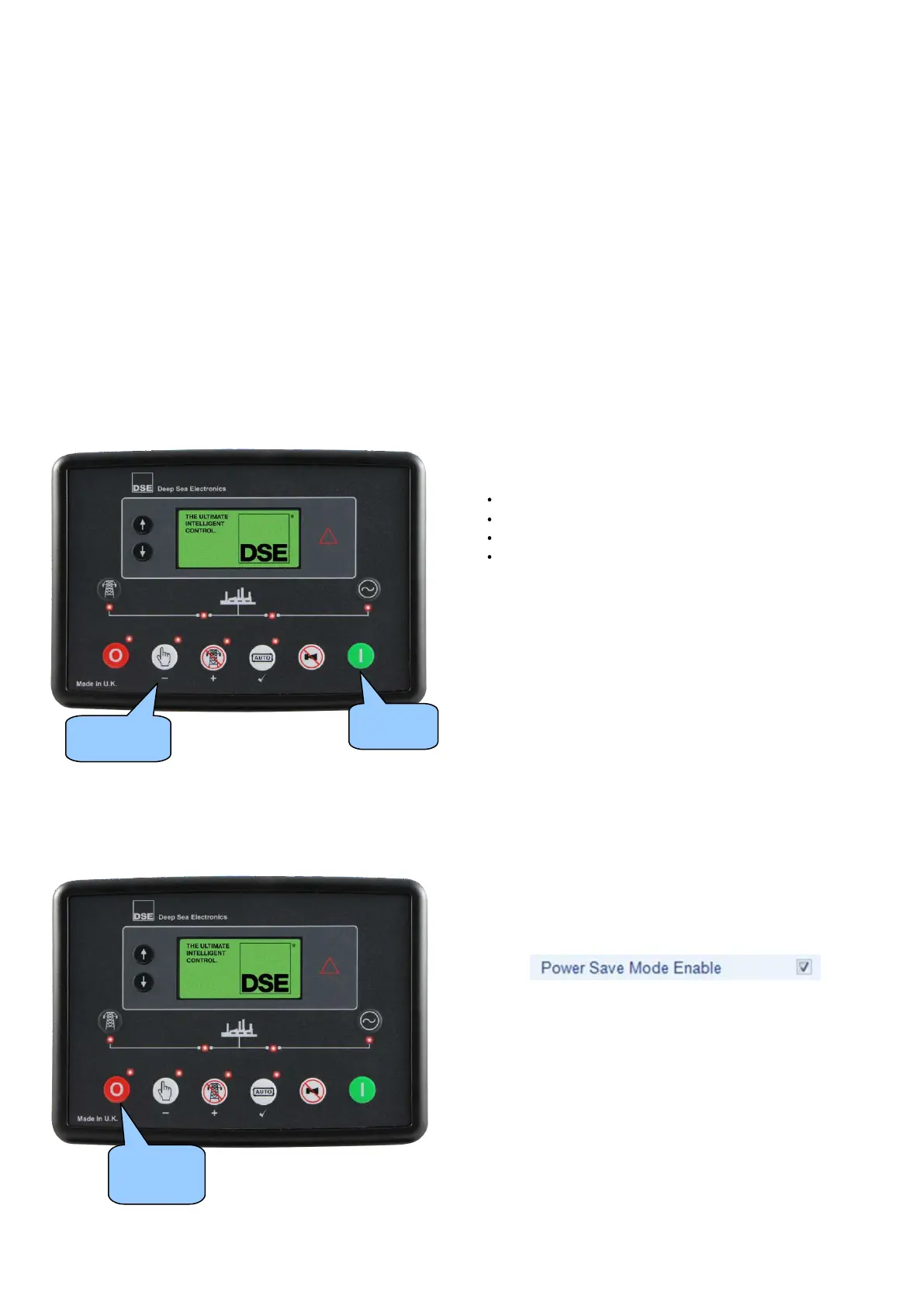

QUICKSTART GUIDE
This section provides a quick start guide to the module’s
operation.
Starting the engine
Press the manual
mode button...
...followed by the
Start button
Select Stop/Reset
mode. The
generator is
stopped
STOP/RESET MODE
Note: If a digital input configured to Panel Lock is
active, changing module modes is not possi-
ble. Viewing the instruments and event logs is
NOT affected by Panel Lock. For further details
of module configuration, refer to DSE Publica-
tion: 057-223 DSE60xx MKII Configuration
Software Manual.
Stop/Reset Mode is activated by pressing the Stop/Reset
Mode button. The Stop/Reset Mode icon is displayed to
indicate Stop/Reset Mode operations.
In Stop/Reset Mode , the module removes the generator
from load (if necessary) before stopping the engine if it is
already running.
If the engine does not stop when requested, the FAIL TO
STOP alarm is activated (subject to the setting of the Fail
to Stop timer). To detect the engine at rest the following
must occur :
When the engine has stopped, it is possible to send
configuration files to the module from DSE Configuration
Suite PC software and to enter the Front Panel Editor to
change parameters.
Any latched alarms that have been cleared are reset
when Stop/Reset Mode is entered.
The engine is not started when in Stop/Reset Mode . If
remote start signals are given, the input is ignored until
Auto Mode is entered.
When left in Stop/Reset Mode with no presses of the
fascia buttons and configured for Power Save Mode, the
module enters Power Save Mode. To ‘wake’ the module,
press any fascia control buttons.
Power Save Mode
in the DSE Configuration Suite
Software
Engine speed is zero as detected by the CAN ECU
Generator AC Voltage and Frequency must be zero.
Engine Charge Alternator Voltage must be zero.
Oil pressure sensor must indicate low oil pressure
