Dorma ED 100 Mounting And Commissioning Instructions

1
5.13 Adjusting the closing speed in a deenergized state
1. Adjust the closing speed on the potentiometer.
 The speed must be adjusted. If the door closes in less
than 3 seconds, it will lead to the error message 73
(braking circuit test).
5
1
1
2.5 mm
5.15 Adjusting the end stop on the slide channel

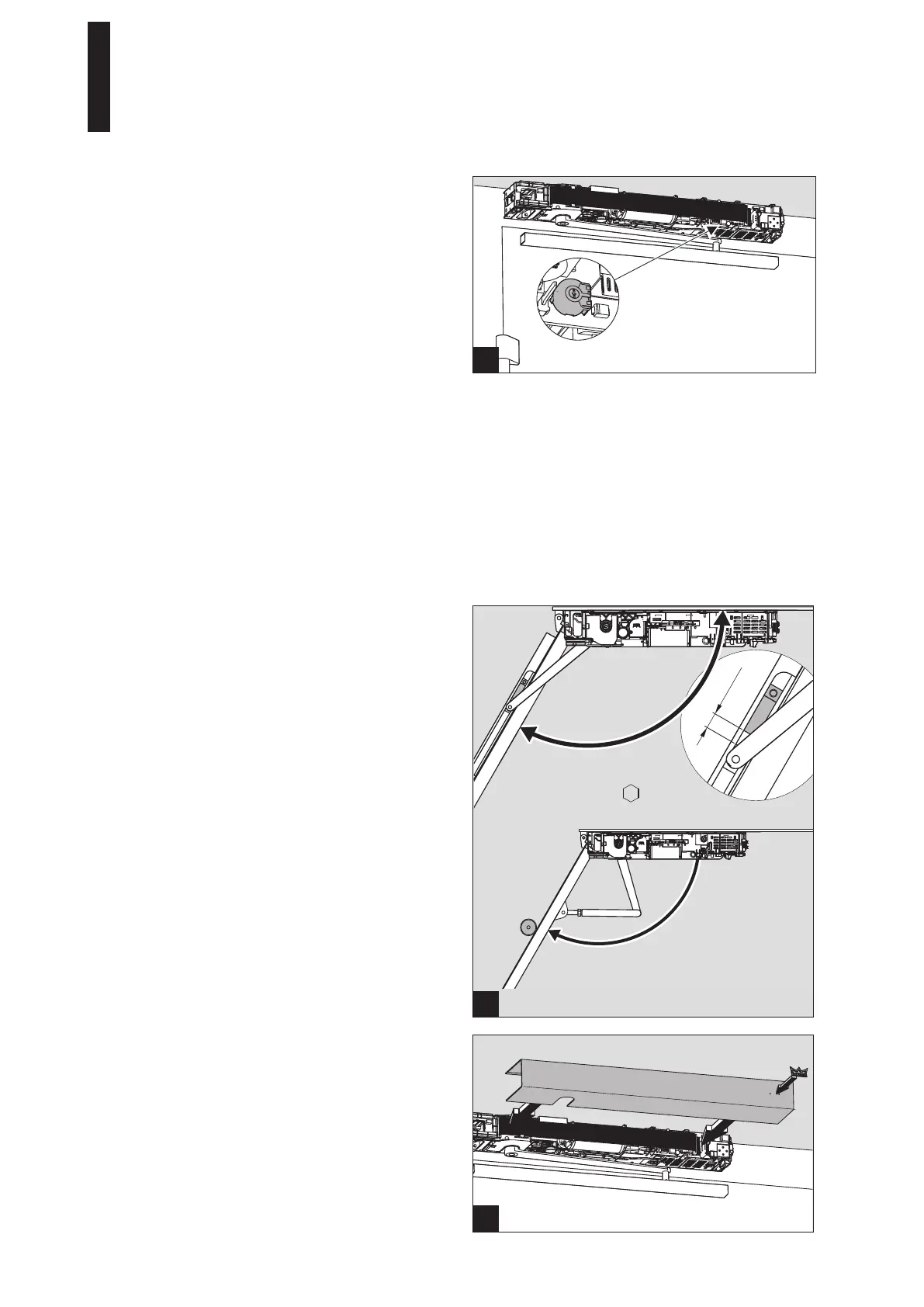

The end stop must be adjusted so that the set opening angle
cannot be exceeded when manually pushed.
1. Turn the program switch to the PERMANENT OPEN
position.
► The door will open to the adjusted opening width.
2. Move the buffer and the end stop to 5 mm to the
sliding piece.
3. Tighten the end stop.
 We recommend the use of a door stop.
 In case a standard arm assembly is used, you must use
a door stopper.
5.16 Installing the casing
1. Push the cover onto the drive unit and press until it
clicks audibly into place.
 Do not clamp any cables.
5.14 Commissioning the drive unit
1. Commission the drive unit.
Cf. commissioning on page 31.
ED 100, ED 250
—
24

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
