Mounting Operating Manual
12 Solenoid Drop Bolt with manual Key Override WN 60425 45532/16458 - 08/2022

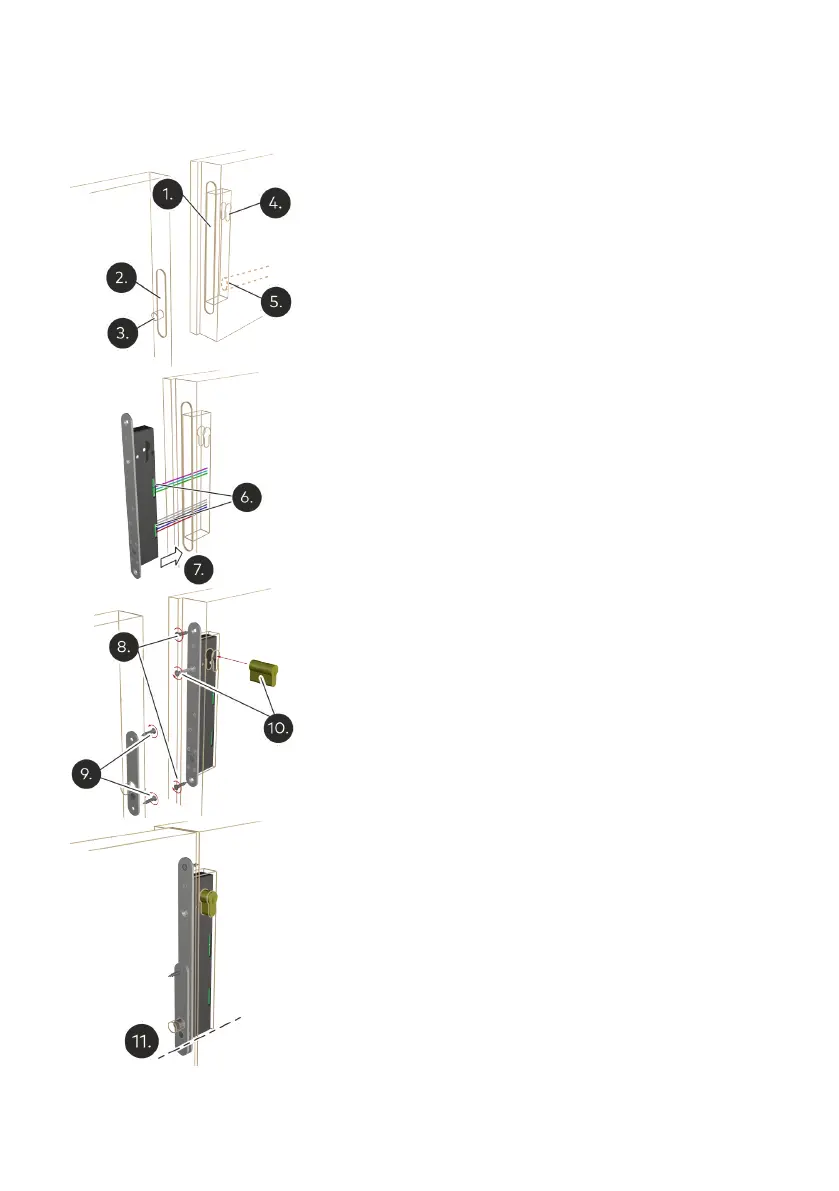

5.2 Example 1: Installing lock and strike plate in mortise
openings
The installation example describes the installation
• of the lock into an insertion opening in the frame,
• of the strike plate into an insertion opening in the door.
1. Cut an insertion opening for the lock in the door frame.
2. Cut an insertion opening for the strike plate in the door
leaf.
3. Drill holes in the door leaf to accept the deadbolt and
magnetic latch.
4. Drill a hole in the back of the insertion opening for the
lock and lead the connecting cable into it.
5. Connect the lock to the connecting cable.
See chapter Electrical connection.
6. Push the lock into the door frame. Do not squeeze the
connecting cable.
7. Fasten the lock with two 10G×1" screws.
8. Install the strike plate into the door panel and secure with
two 10G×1" screws.
9. Check the alignment of the lock and strike plate with each
other. The magnet function should catch and align the
door so that the striker bolt can freely retract into the
strike plate.
