Operating Manual Product description
WN 60425 45532/16458 - 08/2022 Solenoid Drop Bolt with manual Key Override 5
3 Product description
3.1 View

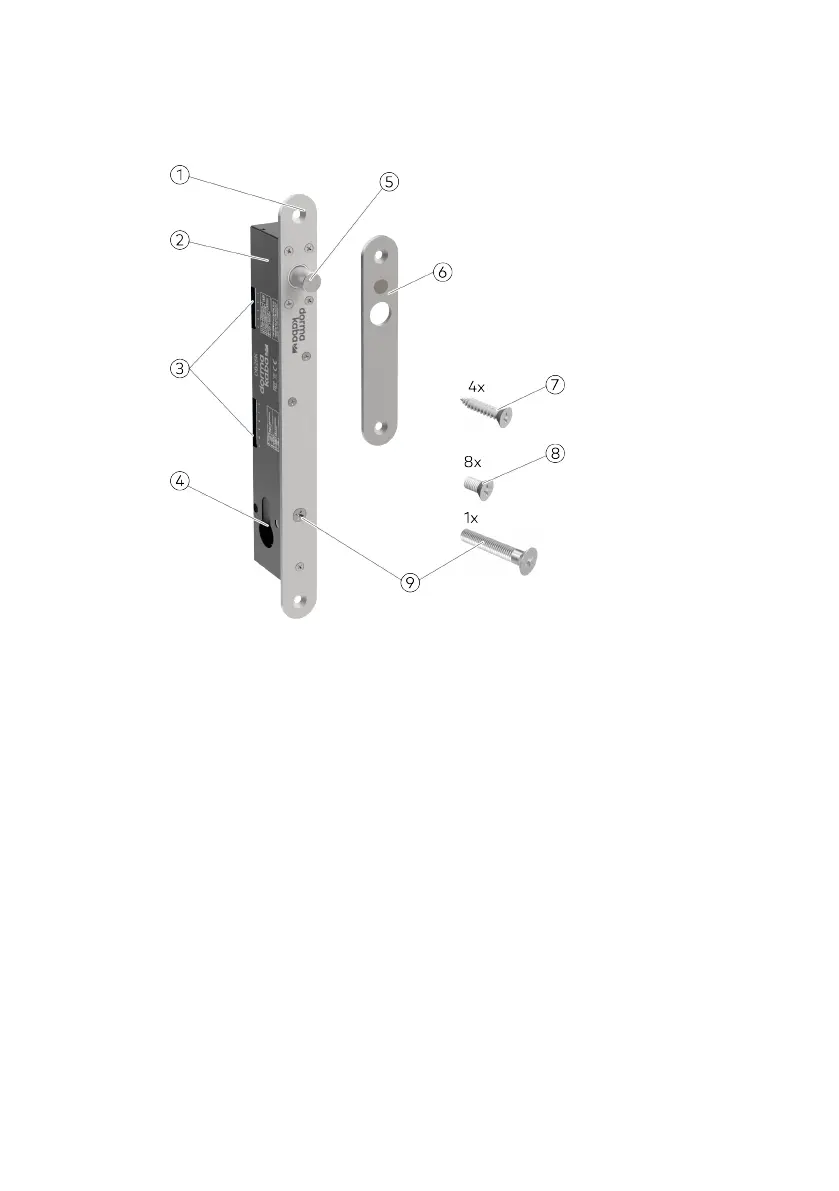

Fig.1: View
1 Faceplate
2 Housing
3 Connection terminals
4 Space for profile cylinder
5 Latch
6 Strike plate
7 Mounting screws, self-tapping, 10G × 1" csk
8 Screws M5 × 10
9 Screws M5 × 30 csk
3.2 Accessories (to be ordered separately)
• Short striking plate DBA143A 2400001218
• Long striking plate DBA143E 2400001219
• Housing DBA144J 2400001221
• Housing DBA145J 2400001222
• Cover plate DBA 146J 2400001220
