Dormakaba DB25K - 5.3 Example 2: Install lock on frame and strike plate on glass door.

Operating Manual Mounting
WN 60425 45532/16458 - 08/2022 Solenoid Drop Bolt with manual Key Override 13
5.3 Example 2: Install lock on frame and strike plate on
glass door.
The installation example describes the installation
• of the lock on a wooden frame,
• the strike plate on a glass door.
Two housings, a cover plate and a long strike plate are
required for mounting (accessories). The housings are
available with double-sided tape and have mounting points
for screw holes on wood and metal doors.

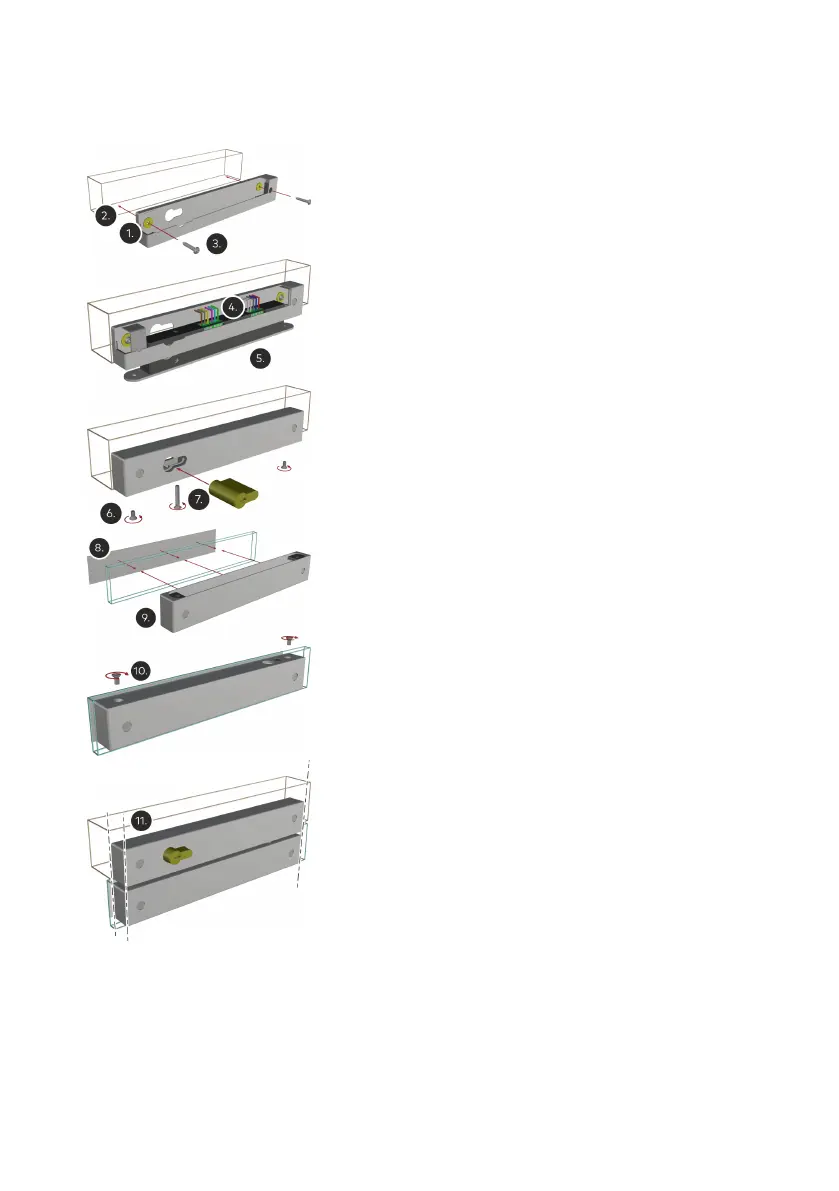

1. Attach the housing to the door frame. To do this, install
two 10G×1" self-tapping hex head screws in the
appropriate locations (included with the enclosure).
Attach the housing to the screw heads with the two
keyhole cutouts and tighten the screws.
2. Drill a Ø8 mm hole in the housing wall at the position for
the cable entry. To prevent the connecting cable from
chafing against the drilled edge, push the supplied
grommet into the drilled hole. Then guide the connecting
cable into the housing.
3. Connect the lock to the connecting cable.
See chapter Electrical connection.
4. Push the lock into the housing. Do not crush the
connecting cable.
5. Fasten the lock with two M5×10 screws.
6. Attach the housing for the strike plate to the glass door.
To do this, remove the protective strip from the adhesive
tape on the side of the housing and carefully attach the
housing to the glass.
Note: To correct the position, press the housing only
lightly at first.
7. For a neat finish on the opposite side of the glass door,
attach the cover plate (accessory) in the same manner.
8. Insert the long striking plate into the housing on the door
leaf in such a way that the bolt of the lock can enter the
opening of the striking plate. Fasten the strike plate with
two M5×10 screws.
9. Check the alignment of the lock and strike plate with each
other. The magnet function should catch and align the
door so that the striker bolt can freely retract into the
strike plate. When the housing is in the correct position,
press the housing firmly into place.
