4 Mounting
4.1 Safety during mounting
WARNING
Danger to life from crowding in front of a
jammed door.
If the door leaf is deformed by more than
5mm, the door may not always open
reliably!
• SVA door locks should only be installed in
doors with a maximum deformation of
5mm!
• In case of more severe deformation, verify
that the door opens reliably with the
fitting!
WARNING
Danger to life due to incorrect mounting on
fire and smoke protection doors.
Mounting on fire and smoke protection
doors is only permitted if the usability
certificates for these doors provide for the
mounting.
• Observe the requirements in the usability
certificates.
TIPS AND RECOMMENDATIONS
• The mounting is shown on a DIN-left door.
For a DIN-right door, the procedure must
be mirror-inverted.
• The mounting is shown with a long plate.
For other door fittings, other mounting
points may have to be used.
4.2 Requirements for mounting
• The door corresponds to the specifications in Abb.
12 and is deformed by a maximum of 5mm.
• For mounting along escape routes:
The door opens in the escape direction. If the door
opens in the opposite direction to the escape
direction, a building authority permit must be
obtained.
• There are recesses and pre-drilled holes in the active
door leaf (see chapter4.4).
• For all locks except SVA5000:
The door leaf is equipped with the connection cable
SVA-A1100/2100.
• If the door leaf is equipped with the SVA-A1000
connection cable, then the "SVA-A Adapter
(A1000)" must be used (item no: 70932991).

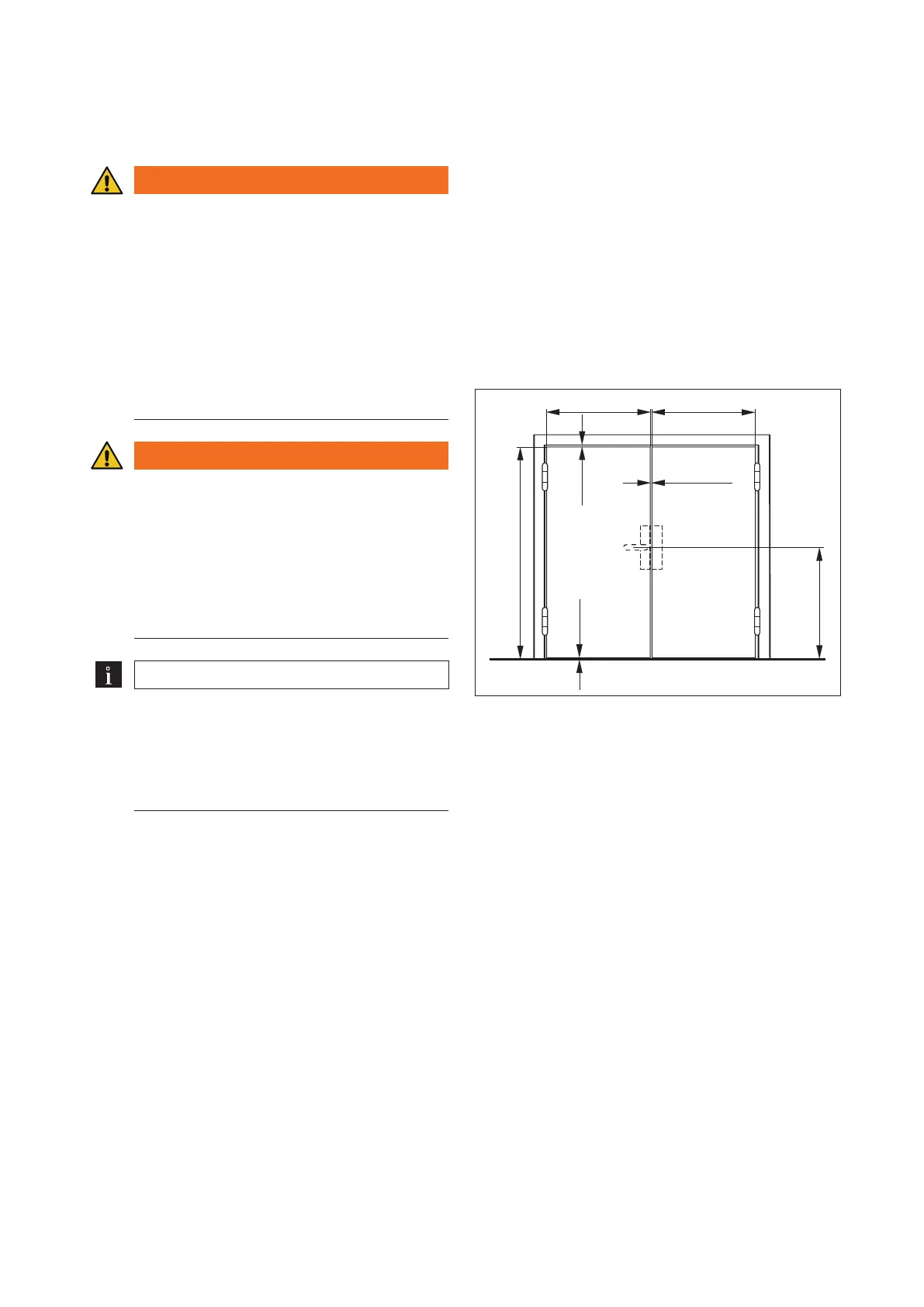

Fig. 12
max. 1300 max. 1300
2.5-5
max. 2500
2-7 2-7
1050
FFL
max. 250 kg max. 250 kg
Requirements for the door
4.3 Tools and auxiliary materials
The following must also be available on site:
• a locking cylinder – a profile cylinder or a round
cylinder depending on the perforation in the lock
case and in the door leaf
• for the inner side of the door: one door handle
(according to EN179) or one panic bar (according to
EN1125)
• for the outer side of the door: one door knob
• with SVA6000: another door handle (for
SVA6000: with split locking pin) and a control to
control the magnet with a voltage between 12 or 24
V DC.
10
SVA door locks
2019-07
WN 059743 45532
dormakaba Mounting instructions Mounting
