4.4 Preparatory work
4.4.1 Mill-cut and drill door leaf for tubular
frame locks

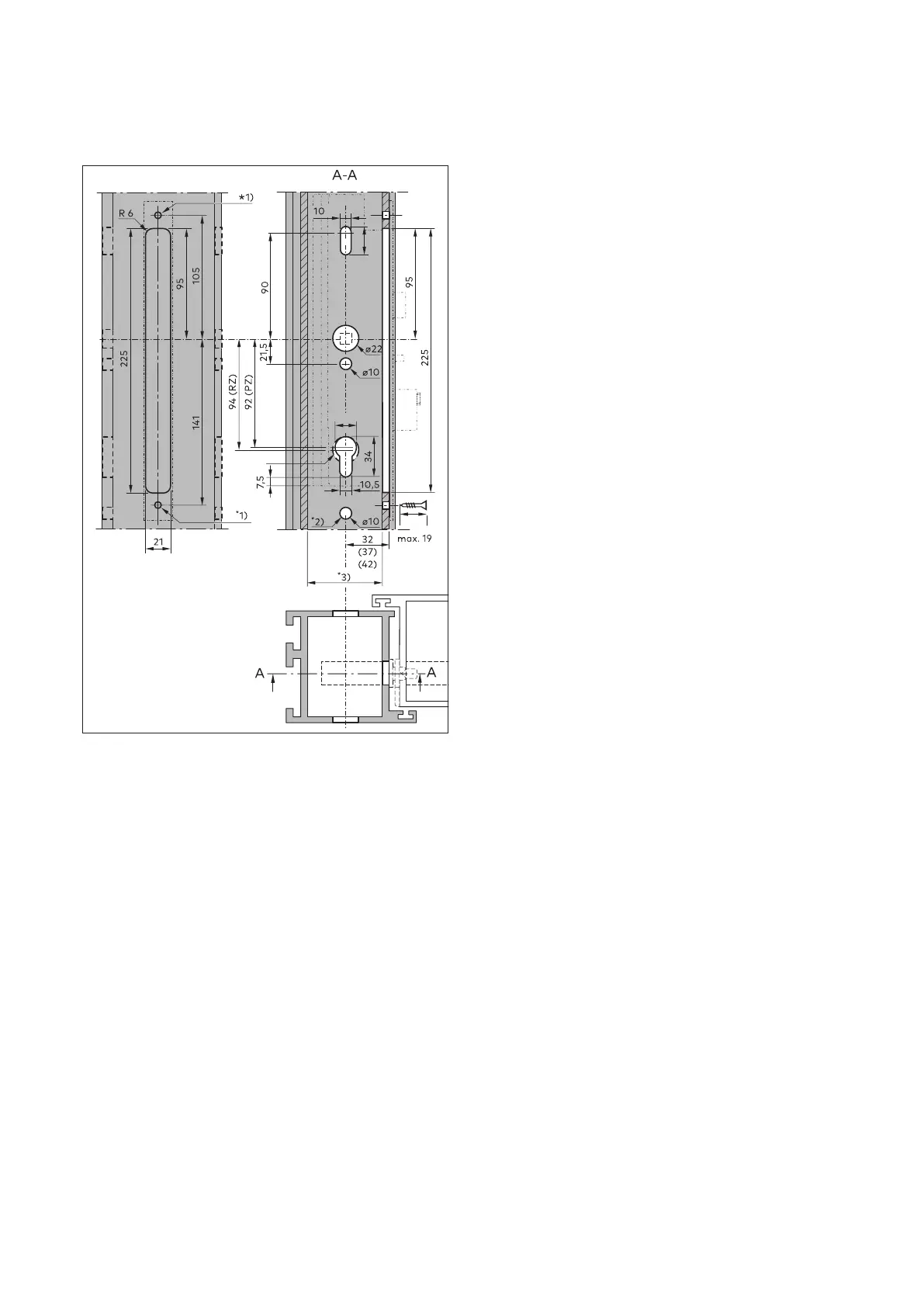

Fig. 13
RZ
PZ
16
*1) ST 3.9x19 A2-70 (EN ISO 7050)
*2) depending on fitting
*3) 45 at backset 35
50 at backset 40
55 at backset 45
Recesses and pre-drilled holes in door leaf
11SVA door locks 2019-07WN 059743 45532
dormakaba Mounting instructions Mounting
